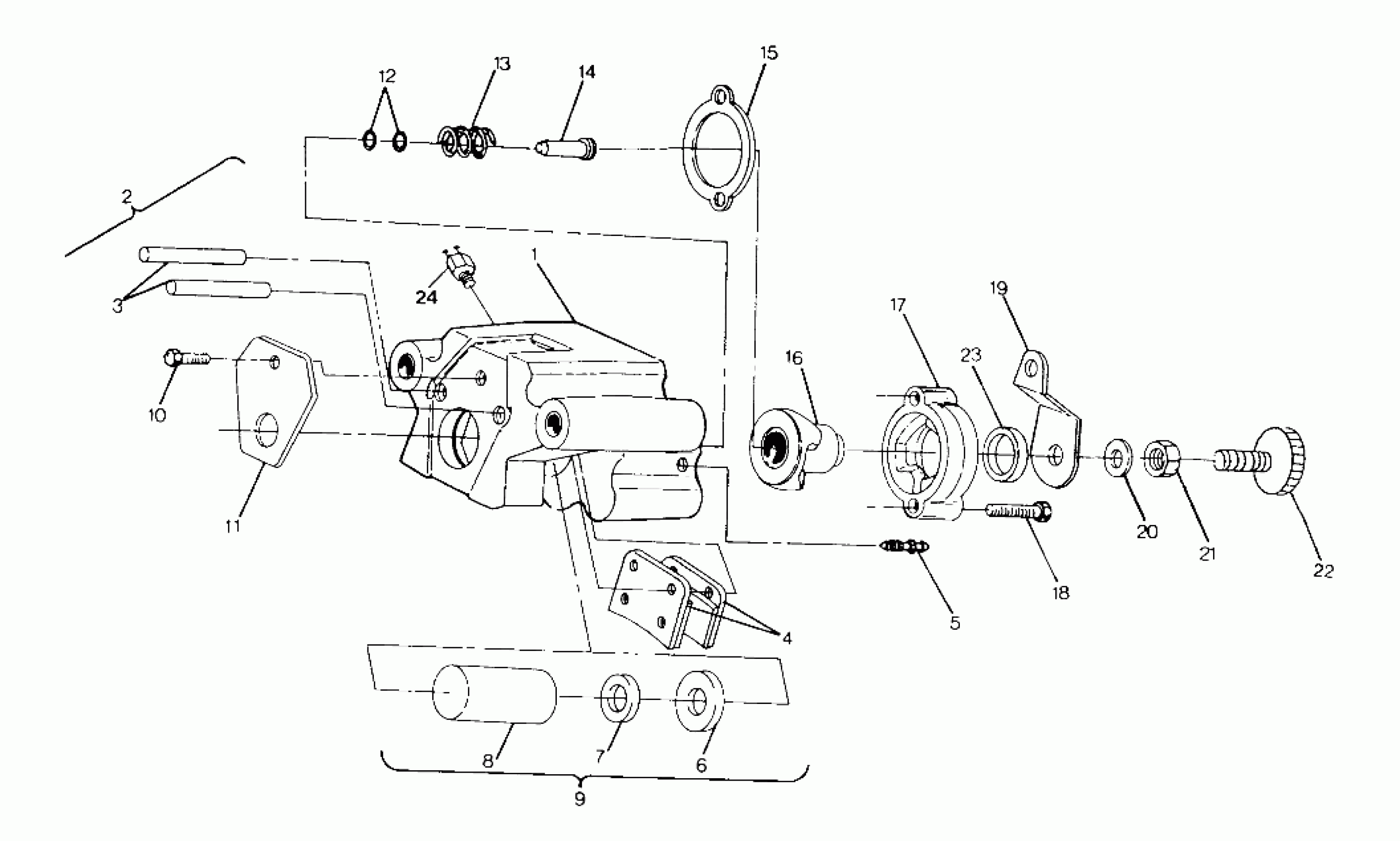

Polaris TRAIL BOSS 4X4 - W928127 REAR BRAKE ASSEMBLY 250 4x4 / W928127 (4922872287C005) Diagram

CALIPER, R.BRAKE (Incl. 1, 3, 5, 10-23)

1910073

Unavailable

CALIPER,REAR BRAKE

5130714

Unavailable

KIT,PAD,R.BRAKE Substituted by 2200464 (Incl. 3, 4)

1930644

$31.75

PIN, DOWEL(10)

7661820

$13.99

PAD ASM. Substituted by 2200464

1910032

$31.75

SCREW,BLEEDER

7080352

$3.19

Seal Ring, .120 Sq.

-------

Unavailable

Seal Ring, .066 Sq.

-------

Unavailable

Brake Piston, Rear

-------

Unavailable

KIT,BRAKE SEALS&PISTON (Incl. 6-8, 12, 14, 15)

1930666

Unavailable

SCREW, SEMS(10)

7512020

$2.39

PLATE, PIN

5211143

Unavailable

O-Ring, .070

-------

Unavailable

SPRING,BRAKE,COMP.

7041219

$24.99

PIN, BRAKE ADJUSTER

5020523

Unavailable

GASKET, BRAKE

5830009

$9.99

RAMP,MOVE.BRAKE Substituted by 2200391

5630394

Unavailable

RAMP,STATION.BRAKE Substituted by 2200391

5630395

Unavailable

BOLT, SOC. HD.(10)

7512292

Unavailable

ARM,BRAKE,CALIPER

5222664

Unavailable

WASHER, SPRING(10)

7555828

Unavailable

NUT(10)

7542129

$4.79

KNOB,BRAKE ADJUSTOR

1930691

Unavailable

SEAL, BRAKE

3610026

$7.99

SWITCH, STOPLIGHT

4110089

Unavailable
