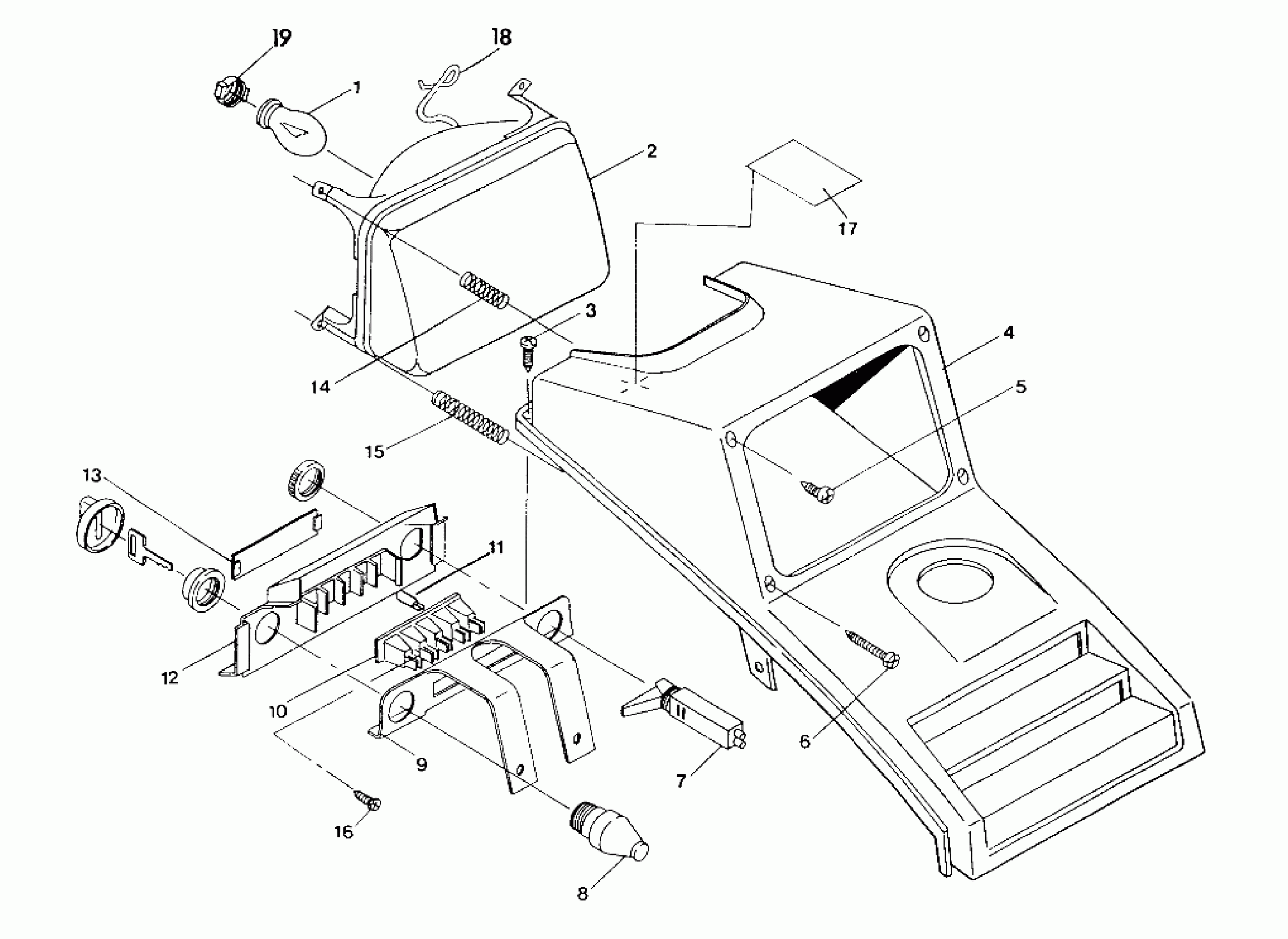

Polaris TRAIL BOSS 4X4 - W928127 HEADLIGHT ASSEMBLY 250 4x4 / W928127 (4922872287A011) Diagram

BULB, H/L

4030028

Unavailable

HEADLIGHT ASM.

4032038

Unavailable

SCREW(10)

7512017

$4.76

COVER,OIL-H/L(COOLBLUE)

5430973-164

$43.65

SCREW, ADJ.(10)

4032003

$5.99

SCREW,ADJUST,(ATV)(10)

4032042

Unavailable

KIT-CHOKE CONTROL

2200188

$28.32

CABLE, CHOKE

7080371

$97.13

SWITCH,IGN.(MODIFIED) Substituted by 4110140

4110086

$137.60

BRKT, IGN. PANEL

5220965-067

Unavailable

STRIP, SOCKET

4032037

$26.98

BULB

4030042

$8.08

PANEL, IGNITION

5430995

Unavailable

LENS ASM,PILOT LIGHT

2652056

Unavailable

SPRING-ADJ

4032002

Unavailable

SPRING,ADJ.

4032041

Unavailable

SCREW, SEM(10)

7511862

Unavailable

DECAL,WARN'DEM.4'SW. Substituted by 7074935

7072737

Unavailable

RETAINER,H/L BULB

4032063

Unavailable

COVER,SOCKET,H/L. Note: Ignition key may be ordered by using the 4 digit number on the ignition switch.

4032066

Unavailable
