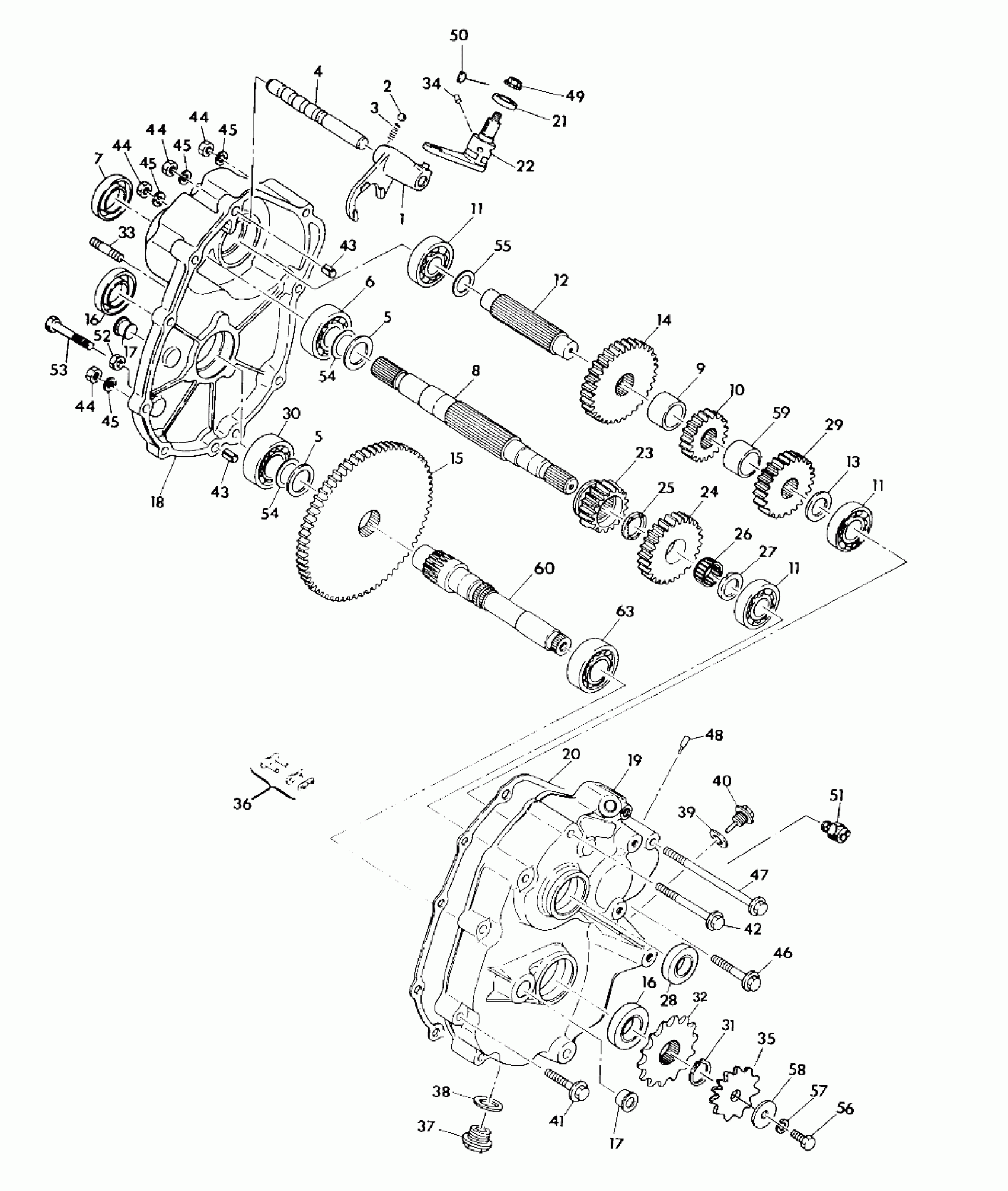

Polaris TRAIL BOSS 4X4 - W928127 GEARCASE ASSEMBLY 250 4x4 / W928127 (4922872287C009) Diagram

#

Description
Price

-

TRANSMISSION(4X4) [Cannot Purchase as Assembly] (Incl. 1 - 60)

1341066

Unavailable

1

SHIFTER

3231501

$78.39

2

BALL, STEEL

3231502

Unavailable

3

SPRING

3231550

$1.49

4

SHAFT, SHIFT

3231579

$13.59

5

WASHER

3231505

$3.40

5

WASHER

3231505

$3.40

6

BEARING

3231506

Unavailable

7

SEAL, OIL

3231507

Unavailable

8

SHAFT, INPUT

3231580

Unavailable

9

COLLAR

3231581

$3.60

10

GEAR (18)T

3231510

$29.59

11

BEARING

3231511

Unavailable

11

BEARING

3231511

Unavailable

11

BEARING

3231511

Unavailable

12

SHAFT

3231512

$34.70

13

Washer

3231513

$4.39

14

GEAR

3231514

Unavailable

15

GEAR (66)

3231582

Unavailable

16

SEAL, OIL

3231516

Unavailable

16

SEAL, OIL

3231516

Unavailable

17

SUPPORT

3231517

Unavailable

17

SUPPORT

3231517

Unavailable

18

CASE, LH

3231594

Unavailable

19

CASE, RH

3231583

Unavailable

20

PACKING

3231553

Unavailable

21

SEAL, OIL

3231521

Unavailable

22

SHAFT, SELECT

3231584

Unavailable

23

GEAR (18)

3231585

Unavailable

24

GEAR

3231524

$57.14

25

WASHER

3231525

Unavailable

26

BEARING,NEEDLE

3231526

Unavailable

27

WASHER

3231527

Unavailable

28

SEAL, OIL

3231528

Unavailable

29

GEAR

3231529

$55.54

30

BEARING

3231609

Unavailable

31

C RING

3231531

Unavailable

32

SPKT, 12T

3221044

$43.99

33

STUD

3231608

Unavailable

34

PIN

3231607

Unavailable

35

SPKT,13T,SPLINED (Optional) Splined

3221041

$43.99

35

SPKT, 11T

3221058

$74.99

36

CONNECTOR LINK

3225024

$19.99

37

PLUG,DRAIN,20MM,MAGNET

3231569

Unavailable

38

GASKET

3231592

Unavailable

39

GASKET

3231539

Unavailable

40

PLUG, OIL

3231561

Unavailable

41

BOLT

3231602

Unavailable

42

BOLT

3231603

Unavailable

43

PIPE, KNOCK

3231543

$1.41

43

PIPE, KNOCK

3231543

$1.41

44

NUT(10)

3231604

Unavailable

44

NUT(10)

3231604

Unavailable

44

NUT(10)

3231604

Unavailable

44

NUT(10)

3231604

Unavailable

45

WASHER, SPRING(10)

3231545

Unavailable

45

WASHER, SPRING(10)

3231545

Unavailable

45

WASHER, SPRING(10)

3231545

Unavailable

45

WASHER, SPRING(10)

3231545

Unavailable

46

BOLT

3231605

Unavailable

47

BOLT

3231606

Unavailable

48

PIPE,BREATHER

3231548

Unavailable

49

NUT, LOCK

3231555

Unavailable

50

KEY, HI-PRO

7721113

Unavailable

51

SW,REV./NEUT.INDIC.

4110062

$32.37

52

NUT(10)

7542404

$1.59

53

BOLT(10)

7515485

$3.03

54

SHIM 25, 0.3 (0.3)

3231562

Unavailable

54

SHIM 25, 0.1 (0.1)

3231563

Unavailable

54

SHIM 25, 0.3 (0.3)

3231562

Unavailable

54

SHIM 25, 0.1 (0.1)

3231563

Unavailable

55

SHIM 20, 0.3 (0.3)

3231564

Unavailable

55

SHIM 20, 0.1 (0.1)

3231565

Unavailable

56

BOLT

3231536

Unavailable

58

WASHER(10)

3231599

Unavailable

59

COLLAR

3231587

Unavailable

60

SHAFT, OUTPUT

3231588

Unavailable
