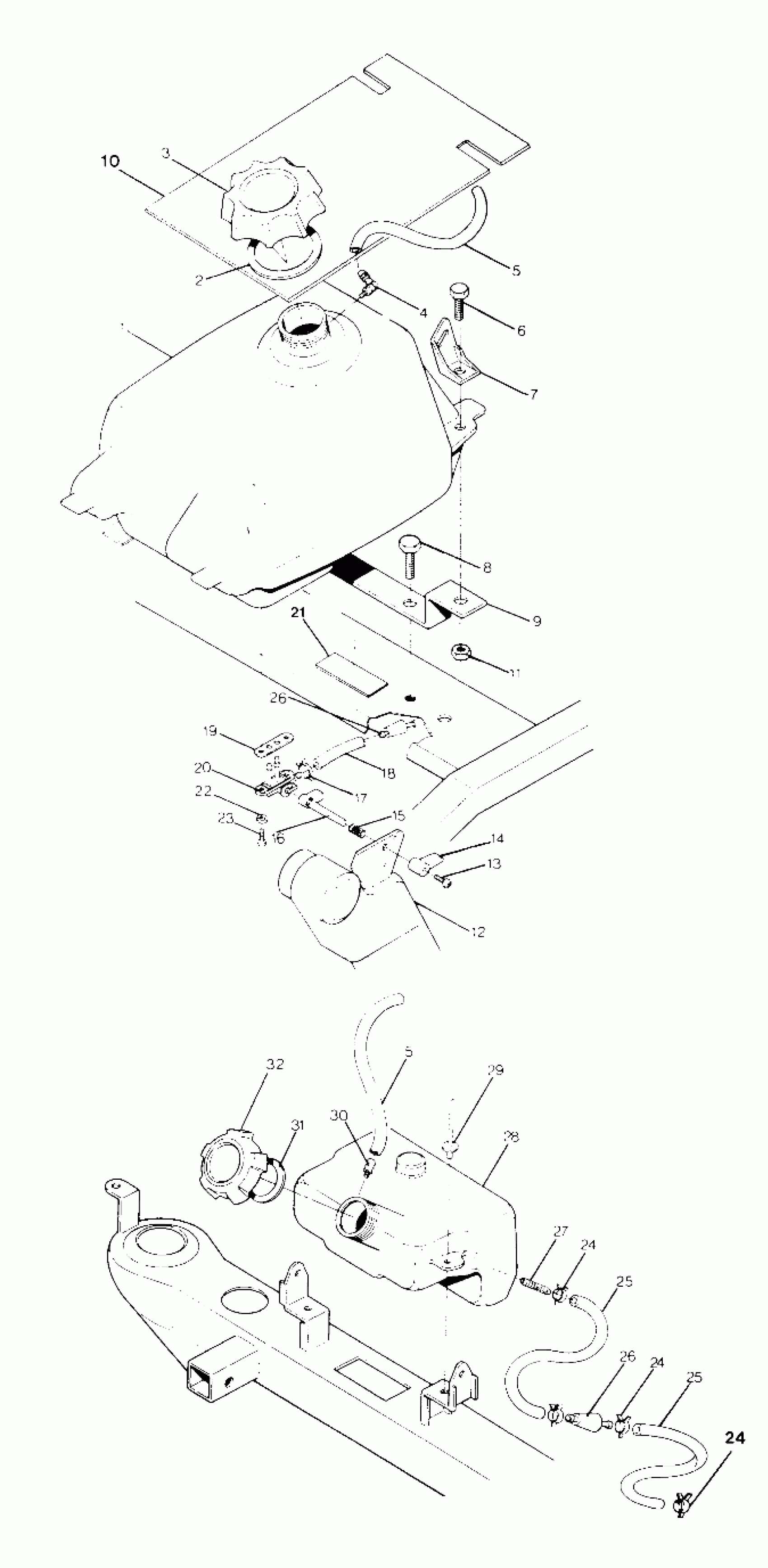

Polaris TRAIL BOSS 4X4 - W928127 FUEL TANK ASSEMBLY 250 4x4 / W928127 (4922872287A013) Diagram

#

Description
Price

1

TANK,FUEL Substituted by 2511323

5430968

Unavailable

2

GASKET-GAS CAP

5810144

$5.59

3

CAP, GAS, (BLACK)

5430725

$24.27

4

Vent, Tank

5431053

$19.99

5

VENT LINE,1/8,BULK Substituted by 8360009-600

8360009

Unavailable

5

VENT LINE,1/8,BULK Substituted by 8360009-600

8360009

Unavailable

6

SCREW(10)

7512310

$2.39

7

BRKT,LH.R.FUELCOVER,BLK.

5222154-067

Unavailable

7

BRKT,RH.R.FUELCOVER,BLK.

5222155-067

Unavailable

8

SCREW(10)

7512208

$3.99

9

BRKT,R.TANK MT,BLK.

5220916-067

Unavailable

10

PAD, SILENCER

5810423

Unavailable

11

NUT-5/16-18 NYLOK-Y (Nylok)

7542324

$1.49

12

DUCT,INLET DOWN TUBE

5431006

$82.39

13

SCREW(10)

7511840

Unavailable

14

Lever, Fuel

5431021

$4.79

15

SPRING,LEVER,COMPRESS.

7041209

$7.19

16

EXT.,FUEL LEVER

5431391

$7.19

17

CLAMP-HOSE,(10)

7080236

$1.59

18

LINE,FUEL,(6 FT.)

5521204

Unavailable

19

GASKET, FUEL VALVE

5810308

Unavailable

20

VALVE, FUEL

7051002

Unavailable

21

PAD,FUELTANK BRKT. Substituted by 8360026

5810317

Unavailable

22

WASHER(10)

7552605

$5.27

23

BOLT, BLACK(10)

7512282

$1.49

24

CLAMP-HOSE, (LARGE GREEN)

7080307

$1.49

24

CLAMP-HOSE, (LARGE GREEN)

7080307

$1.49

24

CLAMP-HOSE, (LARGE GREEN)

7080307

$1.49

25

FUEL LINE-50FT.PKG. Substituted by 8450003-1525

2870563

Unavailable

25

FUEL LINE-50FT.PKG. Substituted by 8450003-1525

2870563

Unavailable

26

FILTER,SMALL,IN-LINE,(10)

2530009

$5.65

26

FILTER,SMALL,IN-LINE,(10)

2530009

$5.65

27

FITTING - OUTLET(10)

7052023

$24.99

28

TANK,OIL

5430969

Unavailable

29

RIVET(50)

7621457

$1.49

30

FITTING,(10)

7052077

$6.39

31

GASKET-OIL CAP

5810141

$2.39

32

CAP,OIL TANK

5430779

$14.56
