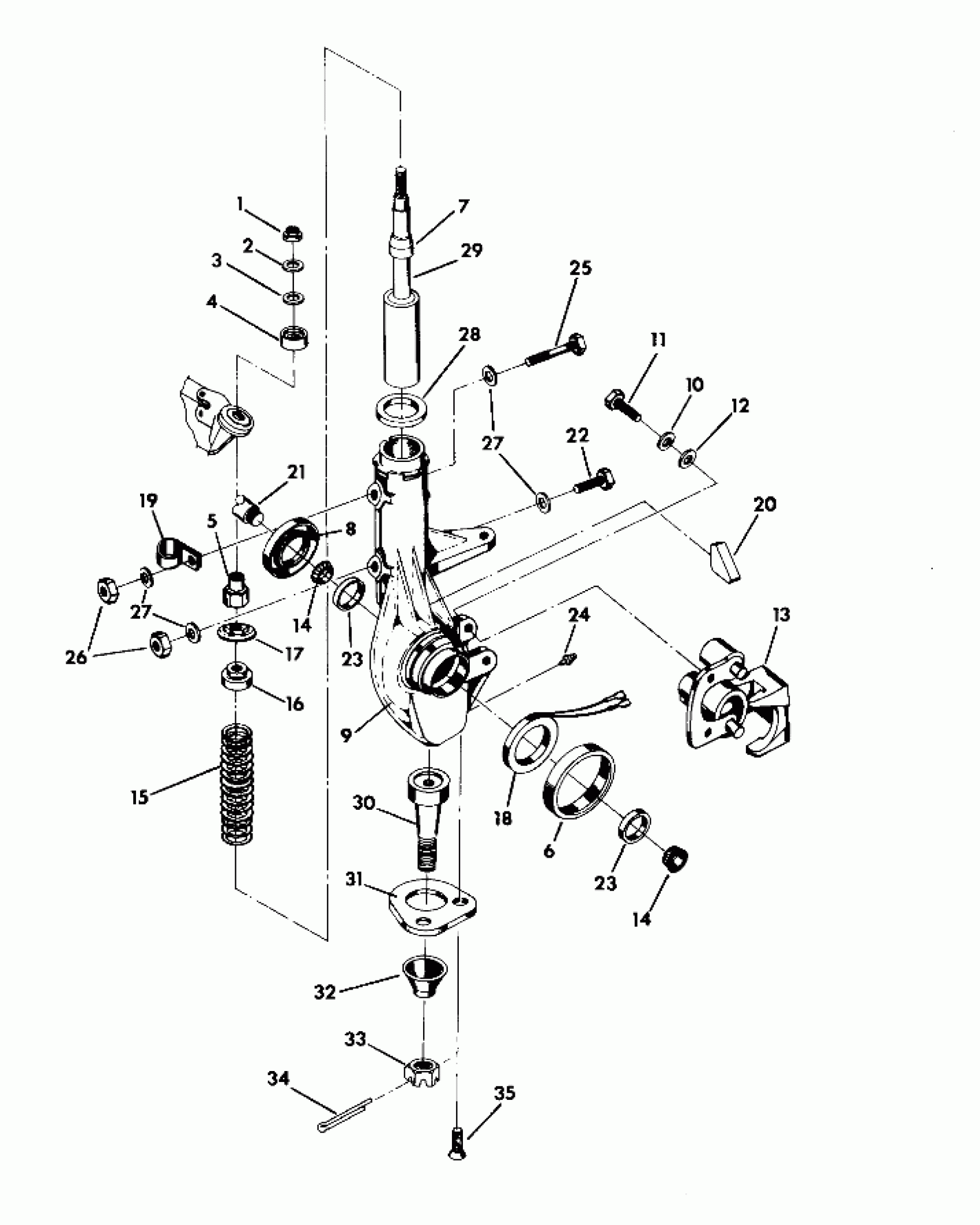

Polaris TRAIL BOSS 4X4 - W918127 STRUT ASSEMBLY 250 4X4 - Update (4919791979019A) Diagram

#

Description
Price

1

NUT,FLEX LOC(10)

7542507

$3.99

2

WASHER(10)

7555749

$1.49

3

SPACER-RUBBER

5810291

$3.99

4

PIVOT BALL, TOP Substituted by 5432872

5430806

Unavailable

5

SPACER,THREADED

5130668

$27.99

6

SLEEVE,STRUT HUB SEAL

5222193

$59.99

7

BUMPER, RUBBER

5410429

Unavailable

8

SEAL, HUB STRUT

3610028

$31.99

9

HUB STRUT ASM,LH (Incl.6,14,18,20,23,24,30-35)

1843033

Unavailable

9

HUB STRUT ASM,RH (Incl.6,14,18,20,23,24,30-35)

1843034

Unavailable

10

LOCK WASHER(10)

7552901

$1.49

11

SCREW, CAP(10)

7512365

$1.49

12

WASHER-.344X.688X.063 FL-Y

7558402

$1.49

13

CALIPER ASM,LH FR.BRAKE Substituted by 1910074

1910066

Unavailable

13

CALIPER ASM,RH FR.BRAKE Substituted by 1910075

1910067

Unavailable

14

BRG,TAPER.ROLL.CONE

3554506

$31.99

14

BRG,TAPER.ROLL.CONE

3554506

$31.99

15

SPRING,COIL,FR.SHOCK

7041238-067

Unavailable

16

RETAINER,SPRING,TOP

5220602

Unavailable

17

PIVOT BALL,BOTTOM Substituted by 5432871

5430807

Unavailable

18

COIL, MAGNETIC

4170003

$59.99

19

CLAMP(10) Substituted by 7080573

7080347

Unavailable

20

RETAINER,WIRE,STRUT CAST

5810439

Unavailable

21

SHAFT, DRIVE ASM.

1380040

Unavailable

22

BOLT(10)

7515334

Unavailable

23

BRG,TAPER,ROLL CUP

3554507

$31.99

23

BRG,TAPER,ROLL CUP

3554507

$31.99

24

FITTING,LUBE.W/BALL CK.(10)

7080306

$3.19

25

SCR-HH-5/16-18X2.25 GR5 ZY3

7515339

$4.79

26

NUT FLEX-LOC(10)

7542303

$6.39

28

WASHER-2.06X2.62X.105-Y

5211115

$3.99

29

SHOCK,FR.STRUT Substituted by 7041451

7041211

Unavailable

30

BALL JOINT Substituted by 7080673

7080364

Unavailable

31

BRACKET-BALL JOINT

5211121

$31.99

32

Boot, Rubber

5410548

Unavailable

33

NUT-3/8-24 HX CA GR5-Y

7542438

$1.59

34

PIN COTTER(10)

7661203

$1.49

35

SCR-1/4-20X5/8 FL HX SOC CP-Y

7512284

$1.49
