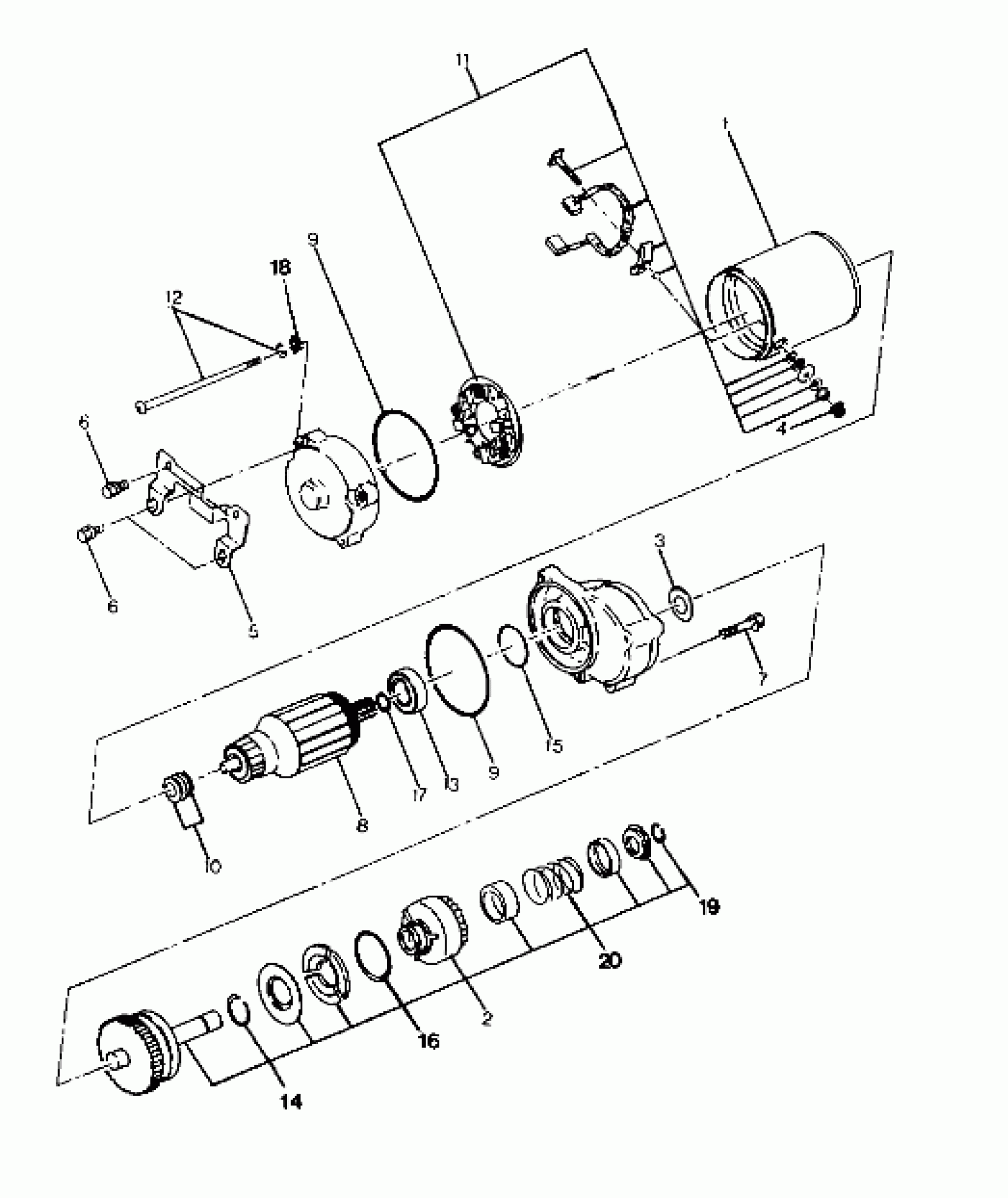

Polaris TRAIL BOSS 4X4 - W918127 STARTING MOTOR ASSEMBLY 250 4X4 - Update (4919791979045A) Diagram

#

Description
Price

1

STARTER MOTOR ASM. Substituted by 3084403 (Incl.8-17)

3083760

Unavailable

1

STARTER MOTOR ASM. Substituted by 3085393 (Incl.8-17) ("J" Model Only)

3084403

Unavailable

2

GEAR SHAFT ASM. Substituted by 3085394 (Incl. 3)

3083647

$271.10

3

WASHER, GEARSHAFT Substituted by 7555908

3083737

$3.17

4

NUT, FLANGE(10)

3083649

$3.97

5

Bracket

3083650

Unavailable

6

BOLT,(10)

3081645

Unavailable

6

BOLT,(10)

3081645

Unavailable

7

BOLT&WASHER ASM.

3082038

$3.97

8

ARMATURE ASM. (Incl. 13,17)

3083776

$190.48

8

ARMATURE ASM. * (Incl. 13,17) ("J" Model Only)

3084404

$142.99

9

RING, RUBBER ("J" Model Only)

3084405

Unavailable

9

RING, RUBBER

3083738

$1.83

9

RING, RUBBER ("J" Model Only)

3084405

Unavailable

9

RING, RUBBER

3083738

$1.83

10

Washer Set

3083754

$2.38

11

BRUSH ASM.

3083728

Unavailable

11

BRUSH,COMPL.2-POLE * ("J" Model Only)

3084406

$125.46

12

BOLT,THROUGH

3083739

$0.62

12

BOLT, THROUGH ("J" Model Only)

3084407

Unavailable

13

BALL BEARING

3083777

$31.75

14

CLIP ("J" Model Only)

3084412

$9.52

15

O RING

3083741

$9.37

16

SPRING, WEIGHT ("J" Model Only)

3084411

$15.56

17

O RING

3083934

Unavailable

18

O-RING ("J" Model Only)

3084408

Unavailable

19

CLIP ("J" Model Only)

3084409

$7.14

20

SPRING, RETURN ("J" Model Only)

3084410

Unavailable
