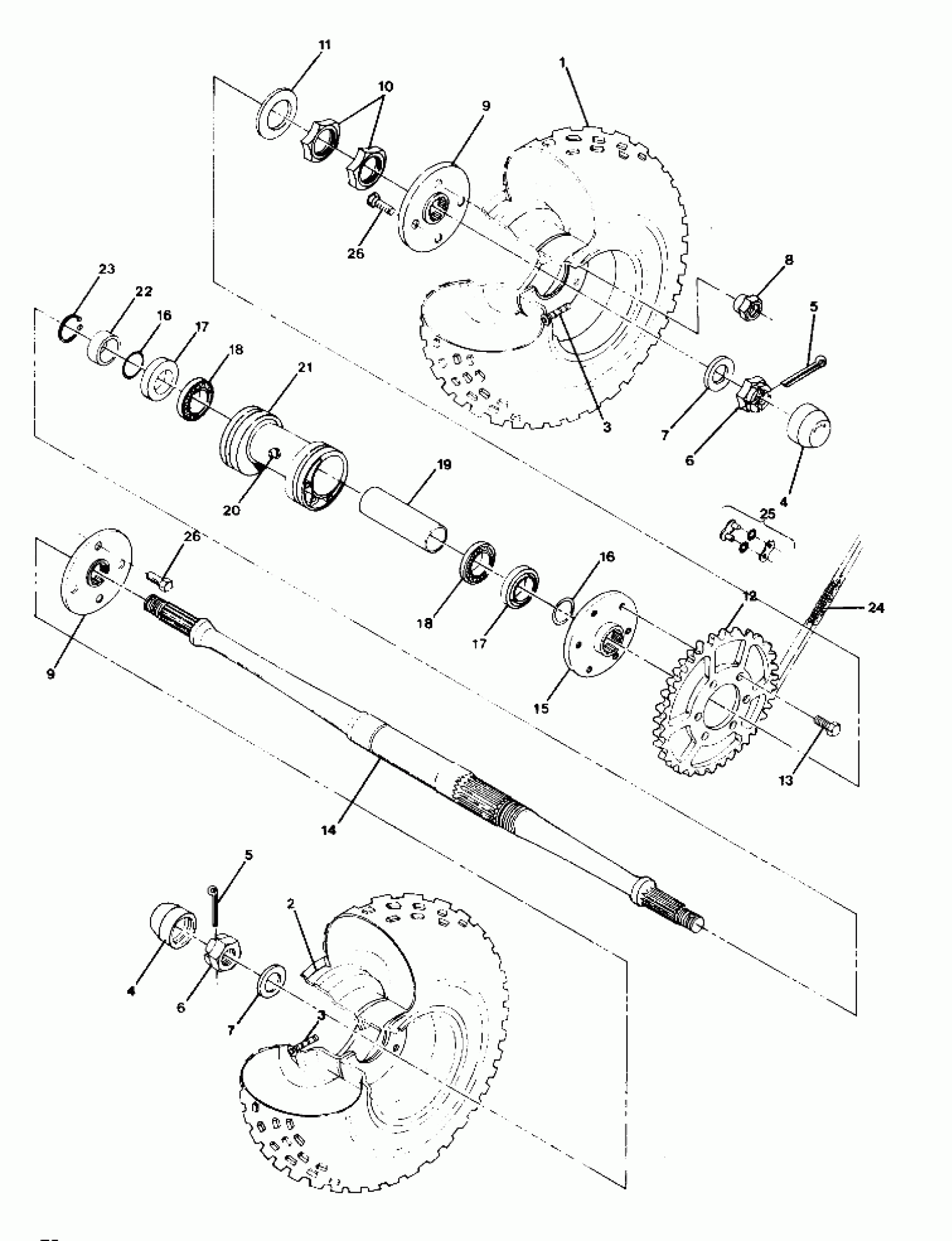

Polaris TRAIL BOSS 4X4 - W918127 REAR WHEEL DRIVE ASSEMBLY 250 4X4 - Update (4919791979023A) Diagram

#

Description
Price

1

TIRE,R(24X11-10)

5410479

Unavailable

2

RIM, REAR

1520145

Unavailable

3

VALVE-RIM

1525017

$5.59

3

VALVE-RIM

1525017

$5.59

4

COVER,DUST,HUB Substituted by 5411164

5410404

Unavailable

4

COVER,DUST,HUB Substituted by 5411164

5410404

Unavailable

5

PIN, COTTER(10)

7661404

$4.79

5

PIN, COTTER(10)

7661404

$4.79

6

NUT, CASTLE(10)

7543005

Unavailable

6

NUT, CASTLE(10)

7543005

Unavailable

7

WASHER(10)

7555745

$7.19

7

WASHER(10)

7555745

$7.19

8

NUT, WHEEL(10)

7542714

$1.59

9

HUB, WHEEL Substituted by 2200341

5130664

$93.08

9

HUB, WHEEL Substituted by 2200341

5130664

$93.08

10

Nut, Jam

5020468

$39.59

11

WASHER(10)

7555764

Unavailable

12

SPROCKET, 42T Substituted by 3222070

3223009

Unavailable

13

BOLT(10)

7515488

Unavailable

14

AXLE, REAR

5020504

$239.99

15

SPROCKET HUB ASM. ("J" Model Only)

1520170

Unavailable

15

HUB,SPROCKET WELD Substituted by 1520170

1011559

Unavailable

16

O RING, 1 5/16(10)

5410415

Unavailable

16

O RING, 1 5/16(10)

5410415

Unavailable

17

SEAL, REAR AXLE

3610013

$19.99

17

SEAL, REAR AXLE

3610013

$19.99

18

Bearing, Ball

3515501

$27.99

18

Bearing, Ball

3515501

$27.99

19

TUBE,BEARING SPACER

5010204

Unavailable

20

FITTING,LUBE.W/BALL CK.(10)

7080306

$3.19

21

HOUSING, AXLE

5130663

Unavailable

22

SPACER,BEARING

5010206

$35.99

23

RING, SNAP(10)

7710405

$4.79

24

CHAIN,DRIVE,108P

3224045

Unavailable

25

CONNECTOR LINK

3225024

$19.99

25

CONNECTOR LINK

3225024

$19.99

26

BOLT, WHEEL(10)

7512673

$3.19
