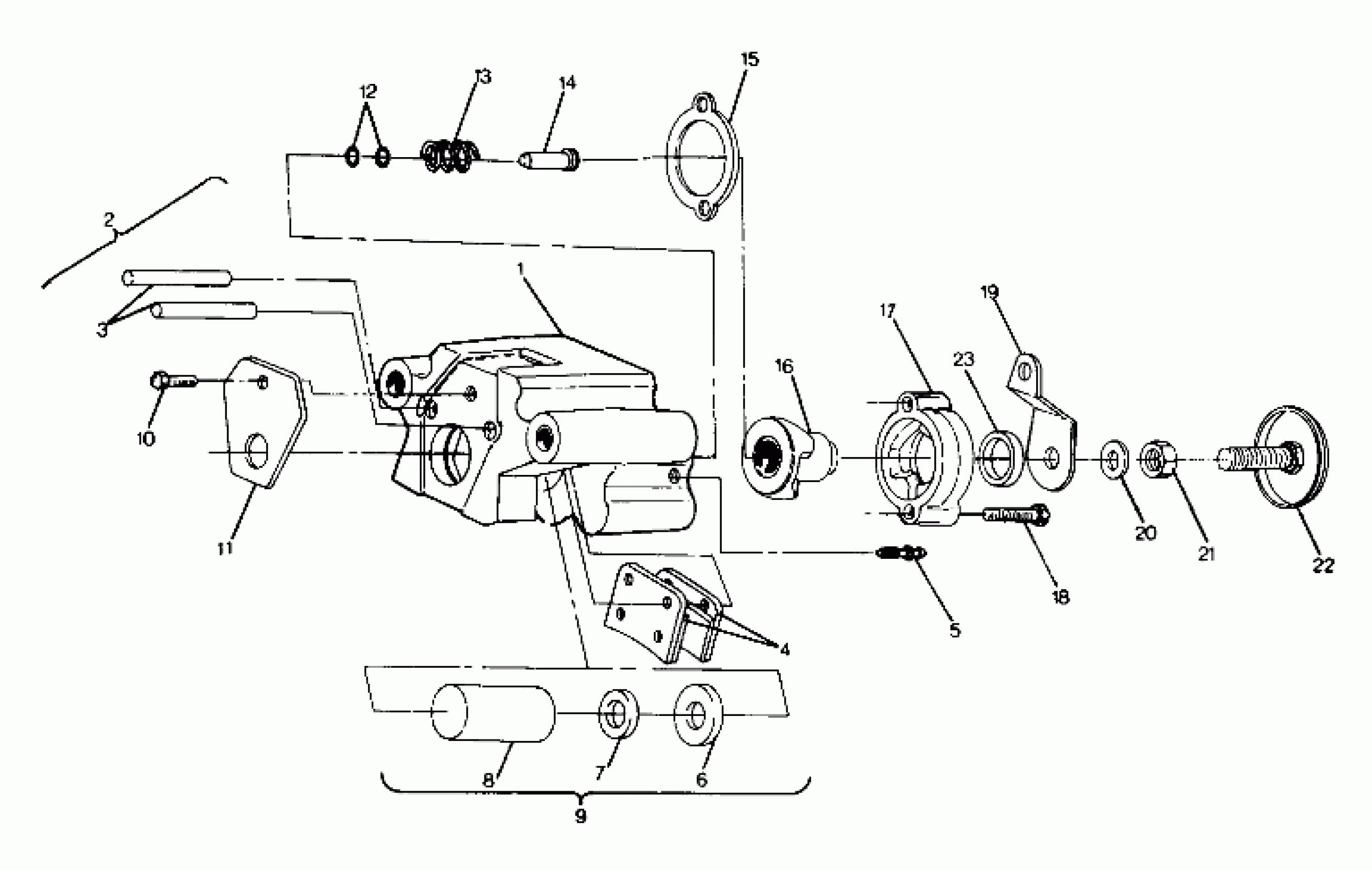

Polaris TRAIL BOSS 4X4 - W918127 REAR BRAKE ASSEMBLY 250 4X4 - Update (4919791979032A) Diagram

#

Description
Price

-

CALIPER ASM,R.BRAKE Substituted by 1910073 (Complete)

1910046

Unavailable

-

CALIPER, R.BRAKE (Complete) ("J" Model Only)

1910073

Unavailable

1

CALIPER,REAR BRAKE

5130714

Unavailable

2

KIT,PAD,R.BRAKE Substituted by 2200464 (Incl.3,4)

1930644

$31.75

3

PIN, DOWEL(10)

7661820

$13.99

4

PAD ASM. Substituted by 2200464

1910032

$31.75

5

SCREW,BLEEDER

7080352

$3.19

6

Seal Ring, .120 Sq.

-------

Unavailable

7

Seal Ring, .066 Sq.

-------

Unavailable

8

Brake Piston, Rear

-------

Unavailable

9

KIT,BRAKE SEALS&PISTON (Incl. 6-8,12,14,15)

1930666

Unavailable

10

SCREW, SEMS(10)

7512020

$2.39

11

PLATE, PIN

5211143

Unavailable

12

O-Ring, .070

-------

Unavailable

13

SPRING,BRAKE,COMP.

7041219

$24.99

14

PIN, BRAKE ADJUSTER

5020523

Unavailable

15

GASKET, BRAKE

5830009

$9.99

16

DESC NOT_AVAILABLE

5530366

Unavailable

17

RAMP,STATION.BRAKE Substituted by 2200391

5630346

Unavailable

18

BOLT, SOC. HD.(10)

7512292

Unavailable

19

ARM,BRAKE,CALIPER ("J" Model Only)

5222664

Unavailable

19

ARM,BRAKE CALIPER Substituted by 2200391

5222454

Unavailable

20

WASHER(10)

7558301

$1.49

21

NUT(10)

7542129

$4.79

22

BRAKE ADJUSTER Substituted by 1930691

1910050

Unavailable

23

SEAL, BRAKE

3610026

$7.99
