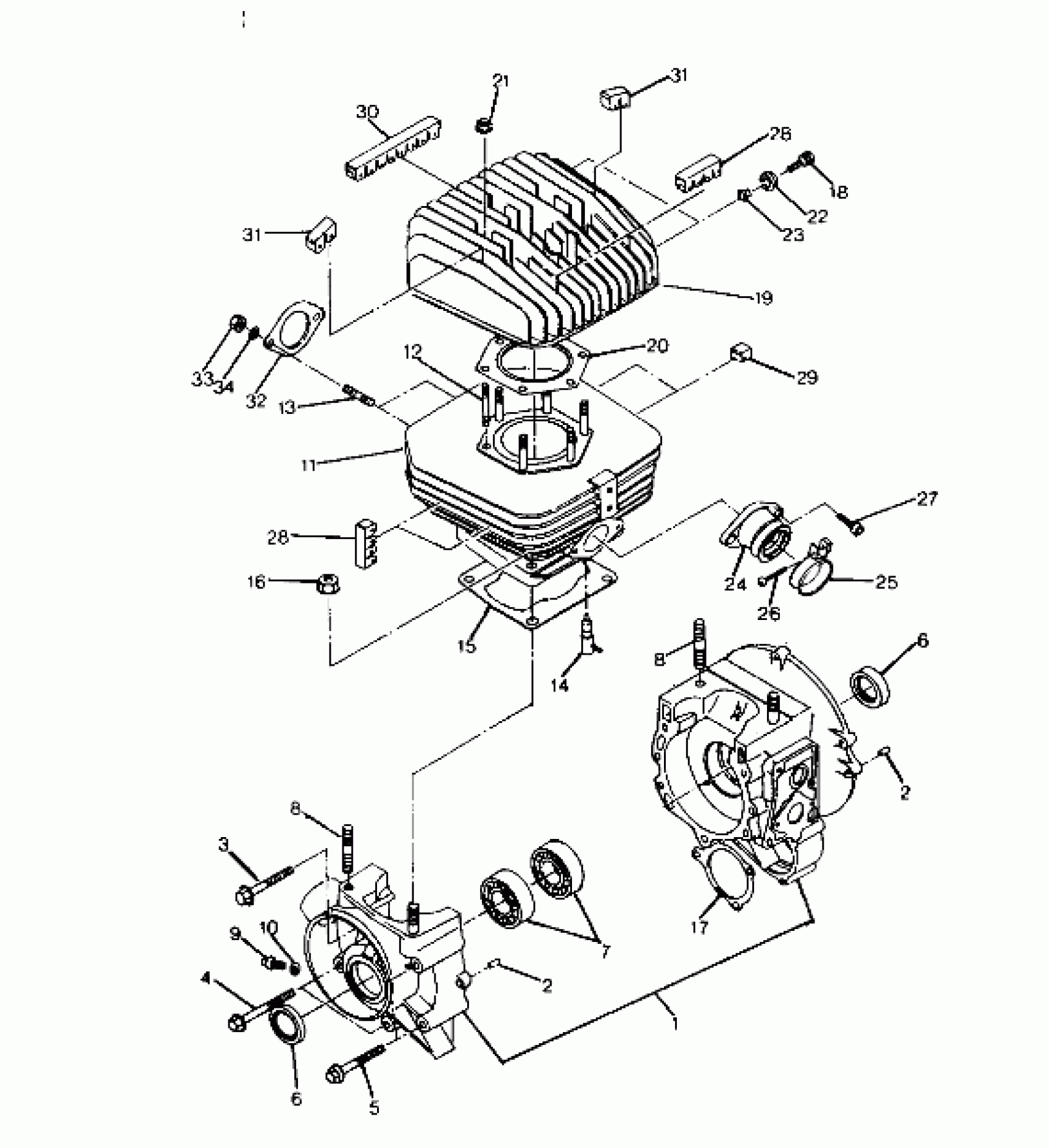

Polaris TRAIL BOSS 4X4 - W918127 CRANKCASE and CYLINDER 250 4X4 - Update (4919791979041A) Diagram

#

Description
Price

1

CRANKCASE ASM. Substituted by 3084579 (Incl. 2-10)

3083836

$504.99

2

PIN, DOWEL Substituted by 3086838

3080103

$7.14

2

PIN, DOWEL Substituted by 3086838

3080103

$7.14

3

BOLT AND WASHER ASSY.

3082096

$1.43

4

BOLT&WASHER ASSY.

3083615

Unavailable

5

BOLT W/WASHER

3080739

$6.35

6

SEAL,OIL

3082162

$40.46

6

SEAL,OIL

3082162

$40.46

7

BEARING,BALL

3083805

Unavailable

8

STUD Substituted by 3085713

3080746

$3.17

8

STUD Substituted by 3085713

3080746

$3.17

9

PLUG, DRAIN

3083767

Unavailable

10

GASKET, ALUM,(10) Substituted by 7555998

3082758

$1.19

11

CYLINDER Substituted by 3083769 (Incl. 12-14)

3083411

Unavailable

12

Stud

3080283

$13.75

13

STUD (10)

3080016

$5.71

14

VALVE, CHECK Substituted by 3086785

3083337

$56.65

15

GASKET,CYLINDER

3083733

$40.46

16

NUT-FLANGE(10)

3082911

$1.99

17

GASKET

3083835

Unavailable

18

BOLT&WASHER

3083730

$4.76

19

HEAD, CYLINDER Substituted by 3086841

3083620

Unavailable

20

GASKET, HEAD

3083768

Unavailable

21

NUT-FLANGE(10)

3082910

Unavailable

22

MOUNTING,RUBBER

3083731

$4.92

23

COLLAR

3083732

Unavailable

24

ADAPTER, CARB. Substituted by 3085013

3083412

$109.27

25

BAND-CARB MTG. (Incl. 26)

3082257

Unavailable

26

SCREW,(10)

3081497

$2.38

27

Bolt, Allen

3081330

$3.97

28

FIN DAMPER #1

3083929

Unavailable

28

FIN DAMPER #1

3083929

Unavailable

29

FIN DAMPER #2

3083930

Unavailable

30

DESC NOT_AVAILABLE

3093931

Unavailable

31

FIN DAMPER #4

3083932

$18.10

31

FIN DAMPER #4

3083932

$18.10

32

GASKET, EXHAUST

3083770

Unavailable

33

NUT(10)

3080285

Unavailable

34

WASHER LOCK ,(10)

3080530

$3.17
