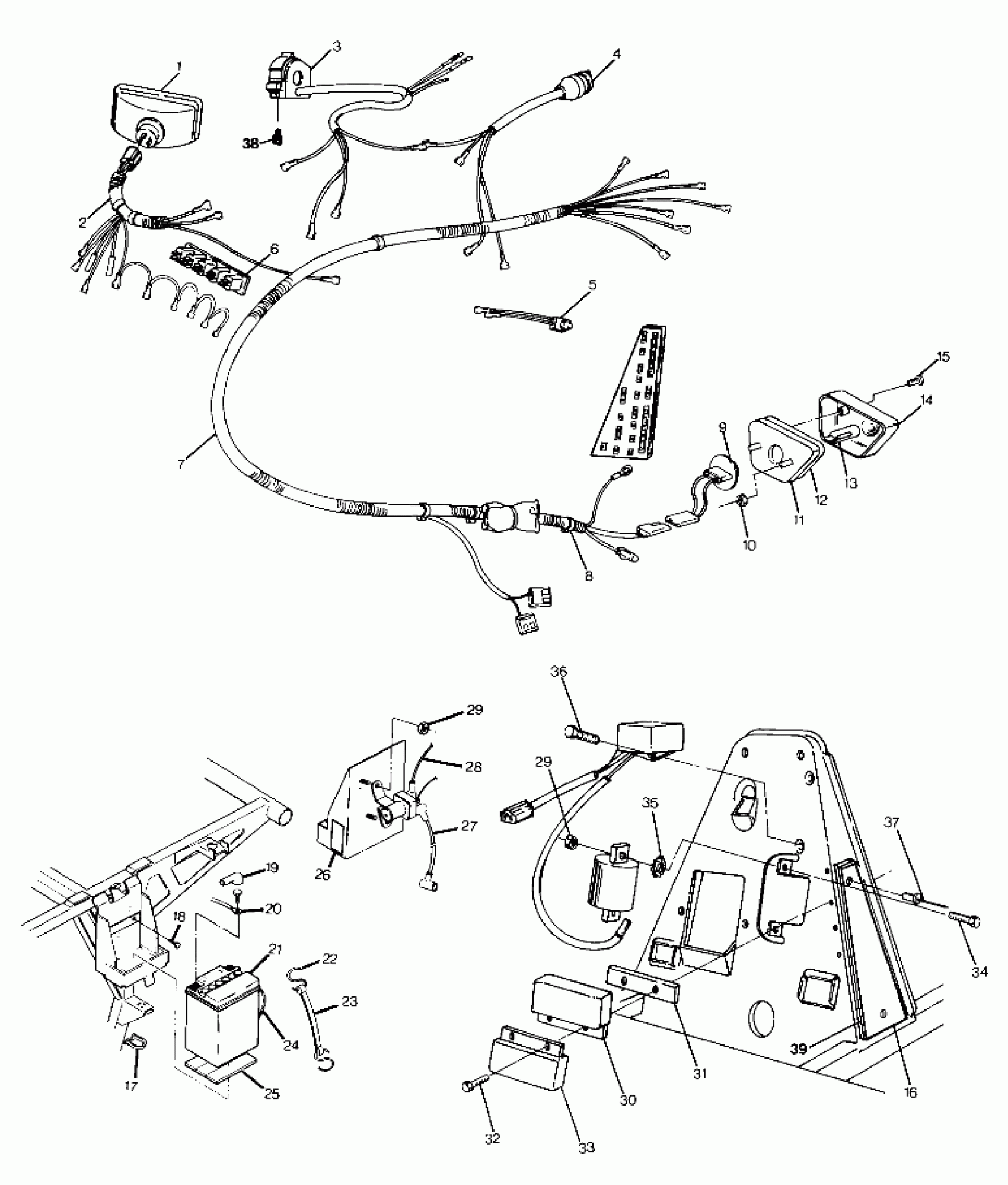

Polaris TRAIL BOSS 4X4 - W898127 Wiring Harness (4916351635033A) Diagram

#

Description
Price

1

HEADLIGHT ASM.

4032038

Unavailable

2

HARNESS, HEADLIGHT

2460282

Unavailable

3

SW,HI/LO/ST. Substituted by 4110157

4110087

Unavailable

4

SWITCH,IGN.(MODIFIED) Substituted by 4110140

4110086

$137.60

5

BOOT,SW. O'RIDE

7080412

Unavailable

5

SWITCH,O'RIDE,REV. Substituted by 2200342

4110088

Unavailable

6

STRIP, SOCKET

4032037

$27.19

7

HARNESS, MAIN WIRE

2460277

Unavailable

8

STRAP, BLK

7080272

Unavailable

9

SOCKET,TAILLIGHT ASM.

4032033

Unavailable

10

SPEED NUT-WASHER, HEAD-1/4

7670054

$1.49

11

BACKING,TAILLIGHT

4032036

Unavailable

12

GASKET,TAILLIGHT

4032031

Unavailable

13

BULB,TAILLIGHT,(10)

4030040

$8.79

14

LENS, TAILLIGHT Substituted by 4032046

4032030

Unavailable

15

Screw, Taillight

4032029

$4.79

16

BOARD,TERMINAL

4040022

Unavailable

17

CLAMP, POLY

7080303

Unavailable

18

SCREW(10)

7511942

Unavailable

19

INSULATOR-CABLE

5410346

$6.39

20

CABLE,BATTERY/ENGINE

4010066

Unavailable

21

Battery

4140006

$99.99

22

HOOK-BATT.H/D(10)

7010032

$1.59

23

STRAP,BATTERY HOLDDOWN

5410424

Unavailable

24

LINE,VENT,(38.0'') Substituted by 8360009-600

5521087

Unavailable

25

PAD-BATTERY

5810290

$7.27

26

DECAL, BATTERY [No Longer Available]

7072606

Unavailable

27

CABLE,SOLENOID/STARTER

4010064

Unavailable

28

CABLE,BATTERY/SOLENOID

4010065

Unavailable

29

NUT(10)

7541925

$1.49

29

NUT(10)

7541925

$1.49

30

RECTIFIER, VOLTAGE

4060087

Unavailable

31

HEAT SINK

5210650

Unavailable

32

SCR-#10-24X3/4,PN/TR RD-TORX-Y

7512018

$3.19

33

LIMITER,REV.SPEED

4060085

Unavailable

34

SCREW(10)

7512007

$3.99

35

WASHER(10)

7571602

$4.79

36

BOLT(10)

7512232

$1.49

37

RIVET, POP(50)

7621322

$0.56

38

SCREW

2010055

Unavailable

39

SHIELD,TERM.BOARD

5431152

Unavailable
