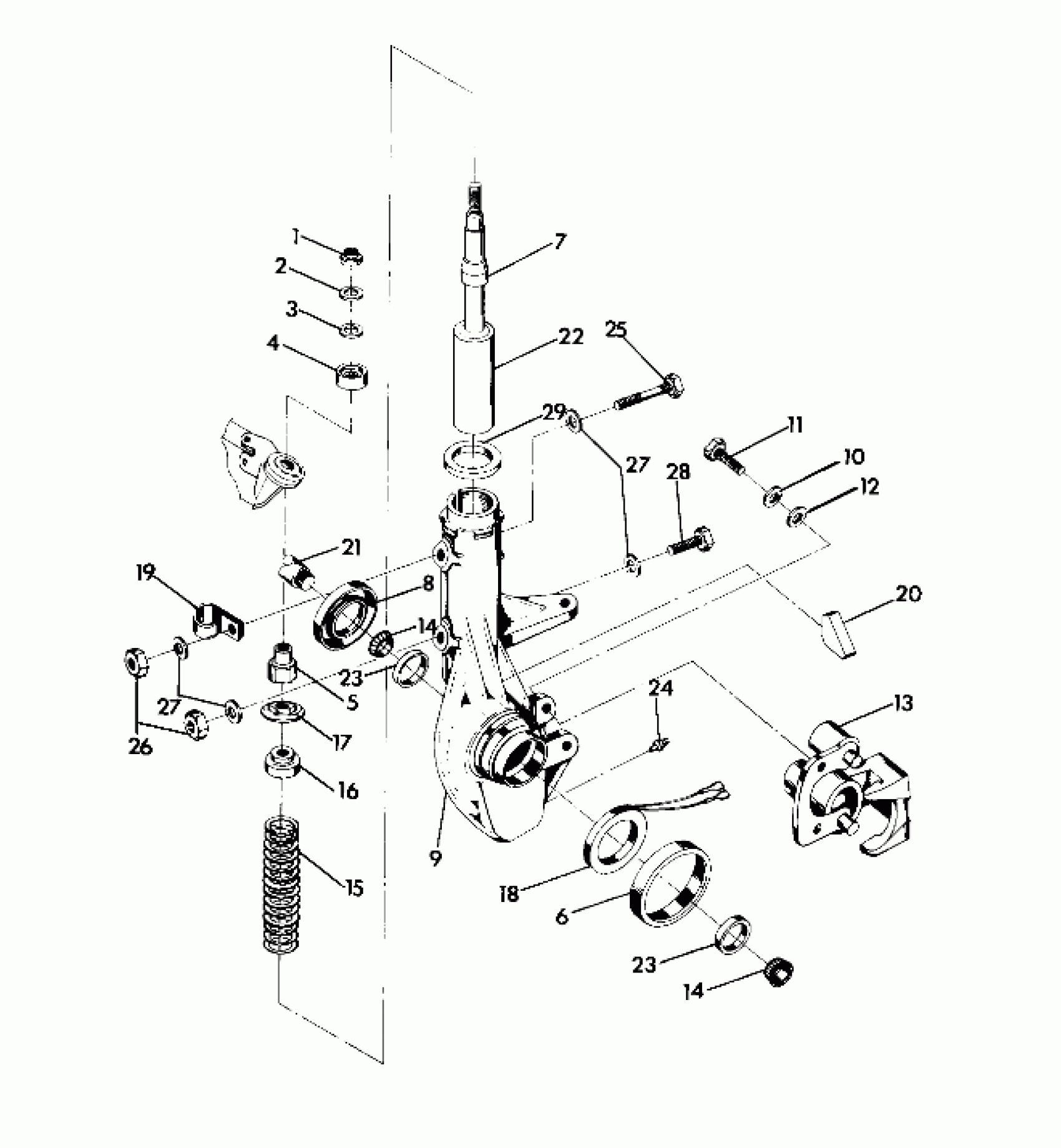

Polaris TRAIL BOSS 4X4 - W898127 Strut Assembly (4916351635019A) Diagram

#

Description
Price

1

NUT,FLEX LOC(10)

7542507

Unavailable

2

WASHER(10)

7555749

$1.19

3

SPACER-RUBBER

5810291

$3.97

4

PIVOT BALL, TOP Substituted by 5432872

5430806

$10.51

5

SPACER,THREADED

5130668

$27.78

6

SLEEVE,STRUT HUB SEAL

5222193

$64.75

7

BUMPER, RUBBER

5410429

Unavailable

8

SEAL, HUB STRUT

3610027

Unavailable

9

HUBSTRUT ASM, LH (Incl. 6, 18, 20, 23, 24)

2200316

Unavailable

9

HUBSTRUT ASM, RH (Incl. 6, 18, 20, 23, 24)

2200317

Unavailable

10

LOCK WASHER(10)

7552901

$1.19

11

SCREW, CAP(10)

7512365

$1.19

12

WASHER-.344X.688X.063 FL-Y

7558402

$0.99

13

BRAKE ASM,LH FRONT Substituted by 1930663

1930639

Unavailable

13

BRAKE ASM,RH FRONT Substituted by 1930664

1930640

Unavailable

14

BRG,TAPER.ROLL.CONE

3554506

$31.75

14

BRG,TAPER.ROLL.CONE

3554506

$31.75

15

SPRING,STRUT,RED Substituted by 7041161-093

7041215

Unavailable

16

RETAINER,SPRING,TOP

5220602

Unavailable

17

PIVOT BALL,BOTTOM Substituted by 5432871

5430807

$10.51

18

COIL, MAGNETIC

4170003

$64.75

19

CLAMP(10) Substituted by 7080573

7080347

$7.14

20

RETAINER,WIRE,STRUT CAST

5810439

Unavailable

21

SHAFT,DRIVE,FRONT

1380020

Unavailable

22

SLEEVE,DR.SHAFT SEAL

5222227

Unavailable

22

STRUT ASM,FRONT,25MM.

7041451

$68.79

23

BRG,TAPER,ROLL CUP

3554507

$31.75

23

BRG,TAPER,ROLL CUP

3554507

$31.75

24

FITTING,LUBE.W/BALL CK.(10)

7080306

$3.17

25

SCR-HH-5/16-18X2.25 GR5 ZY3

7515339

$4.76

26

NUT FLEX-LOC(10)

7542303

$6.35

28

BOLT(10)

7515334

Unavailable

29

WASHER-2.06X2.62X.105-Y

5211115

$3.97
