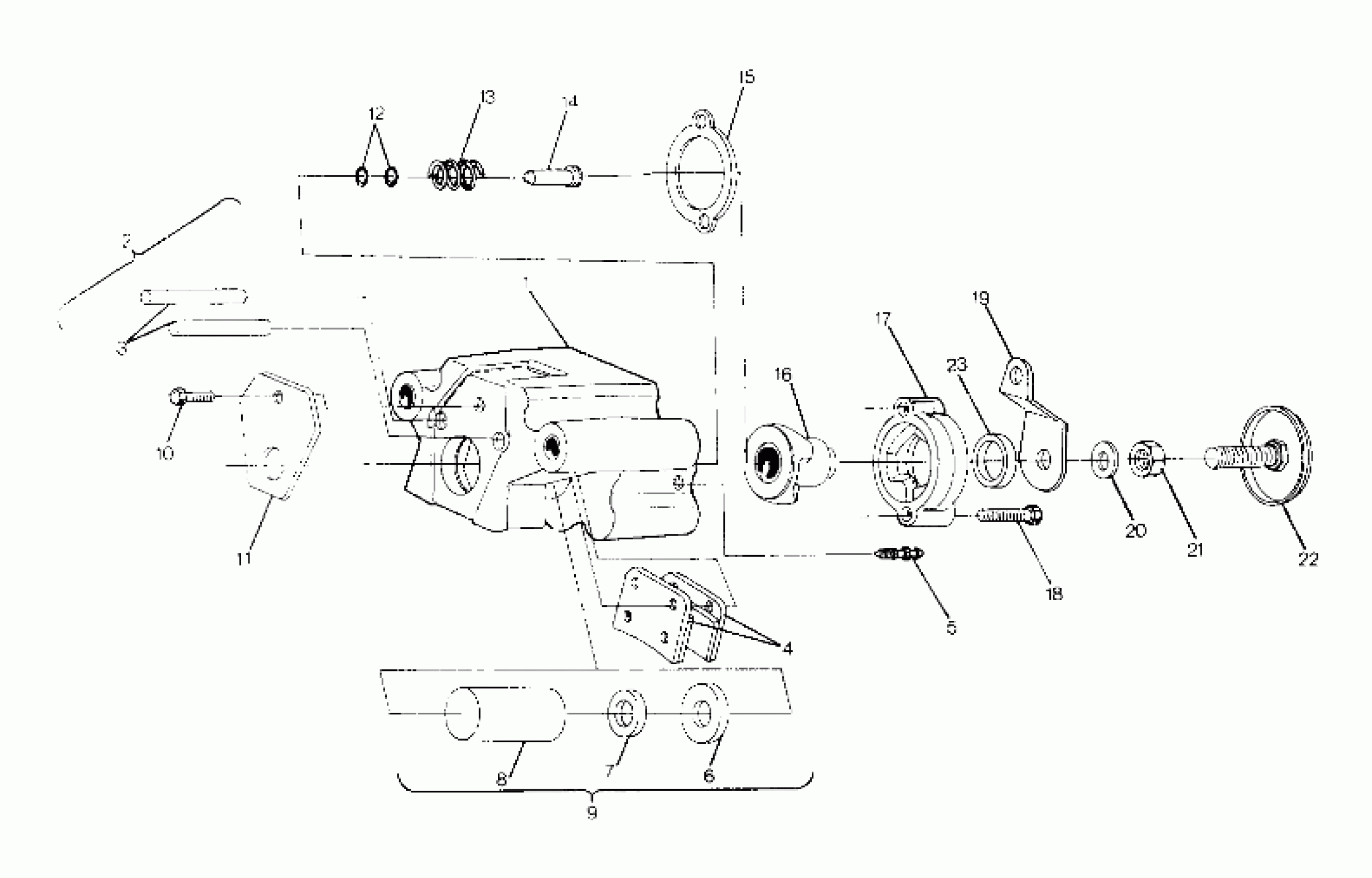

Polaris TRAIL BOSS 4X4 - W898127 Rear Brake Assembly 4x4-Updated 4/89 (49173717370032) Diagram

CALIPER ASM,R.BRAKE Substituted by 1910073 (Complete)

1910046

Unavailable

CALIPER,REAR BRAKE

5130714

Unavailable

KIT,PAD,R.BRAKE Substituted by 2200464 (Incl. 3,4)

1930644

$31.75

PIN, DOWEL(10)

7661820

$13.99

Brake Pad, Rear

-------

Unavailable

SCREW,BLEEDER

7080352

$3.19

Seal Ring, .120 Sq.

-------

Unavailable

Seal Ring, .066 Sq.

-------

Unavailable

Brake Piston, Rear

-------

Unavailable

KIT,BRAKE SEALS&PISTON (Incl.6-8,12,14,15)

1930666

Unavailable

SCREW, SEMS(10)

7512020

$2.39

PLATE, PIN

5211143

Unavailable

O-Ring, .070

-------

Unavailable

SPRING,BRAKE,COMP.

7041219

$24.99

Brake Pin, Actuator

-------

Unavailable

GASKET, BRAKE

5830009

$9.99

Ramp - Moveable, Brake

-------

Unavailable

RAMP,STATION.BRAKE Substituted by 2200391

5630346

Unavailable

BOLT, SOC. HD.(10)

7512292

Unavailable

Arm - Brake Caliper

-------

Unavailable

WASHER(10)

7558301

$1.49

NUT(10)

7542129

$4.79

BRAKE ADJUSTER Substituted by 1930691

1910050

Unavailable

SEAL, BRAKE

3610026

$7.99

KIT,BRAKE RAMP ASM. (Incl. 16 & 19)

2200333

Unavailable
