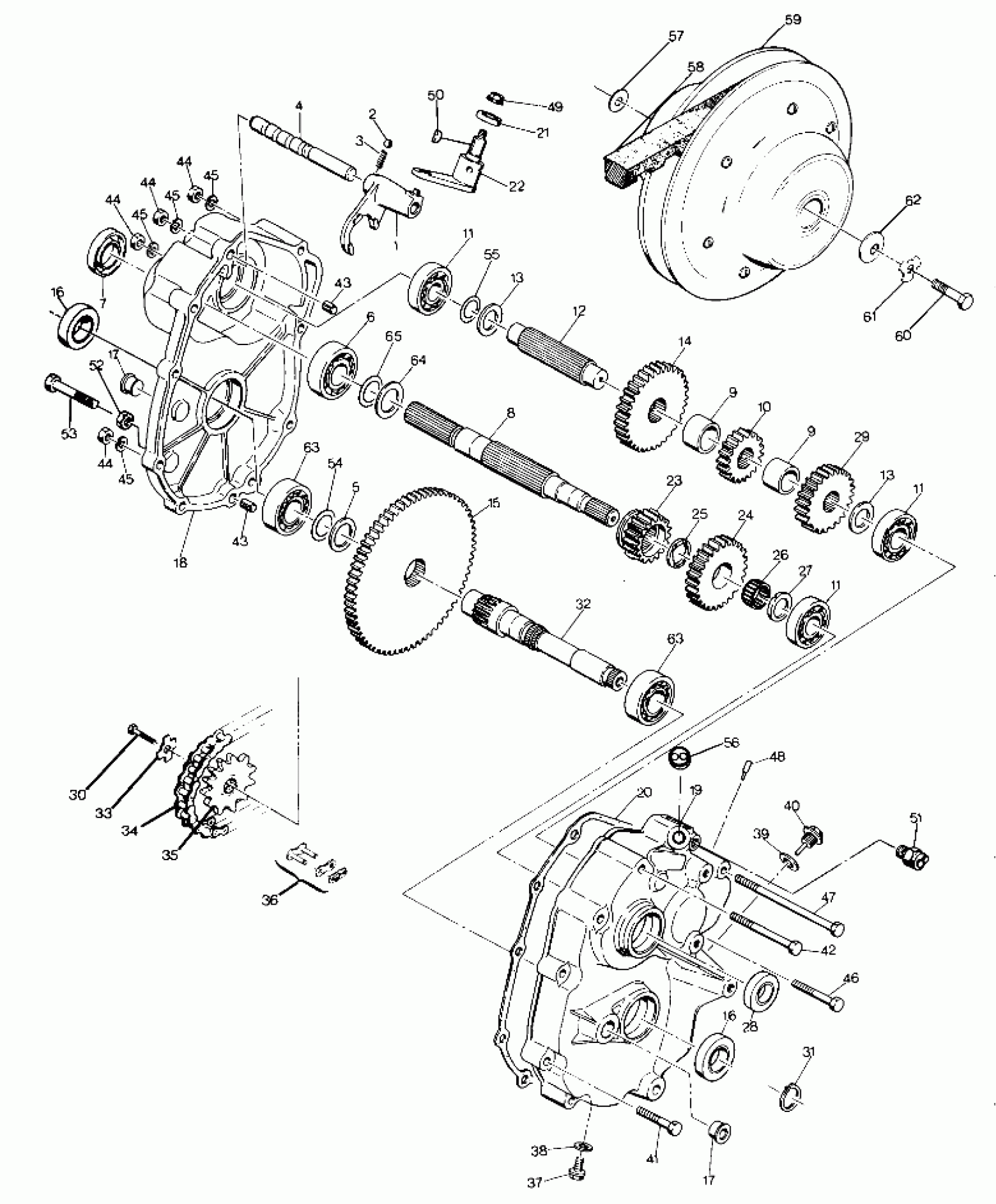

Polaris TRAIL BOSS 4X4 - W898127 Gearcase Assembly (ME25P5) (4916351635037A) Diagram

#

Description
Price

-

GEARCASE ASM.(4X4) Substituted by 1341066

1341057

Unavailable

1

SHIFTER

3231501

$78.39

2

BALL, STEEL

3231502

Unavailable

3

SPRING

3231550

$1.49

4

SHAFT, SHIFT

3231504

$15.99

5

WASHER

3231505

$3.40

6

BEARING

3231506

Unavailable

7

SEAL, OIL

3231507

Unavailable

8

SHAFT,INPUT

3231508

$46.83

9

COLLAR

3231509

Unavailable

9

COLLAR

3231509

Unavailable

10

GEAR

3231510

$29.59

11

BEARING

3231511

Unavailable

11

BEARING

3231511

Unavailable

11

BEARING

3231511

Unavailable

12

SHAFT

3231512

$34.70

13

Washer

3231513

$4.39

13

Washer

3231513

$4.39

14

GEAR

3231514

Unavailable

15

GEAR

3231515

$153.59

16

SEAL, OIL Substituted by 3231516

3231570

Unavailable

16

SEAL, OIL Substituted by 3231516

3231570

Unavailable

17

SUPPORT

3231517

Unavailable

17

SUPPORT

3231517

Unavailable

18

CASE, LH

3231571

$207.99

19

CASE, RH Substituted by 3231583

3231572

Unavailable

20

PACKING

3231553

Unavailable

21

SEAL, OIL

3231521

Unavailable

22

SHAFT, SELECT

3231559

$33.27

23

GEAR Substituted by 3231585

3231523

Unavailable

24

GEAR

3231524

$57.14

25

WASHER

3231525

Unavailable

26

BEARING,NEEDLE

3231526

Unavailable

27

WASHER

3231527

Unavailable

28

SEAL, OIL

3231528

Unavailable

29

GEAR

3231529

$55.54

30

BOLT(10)

7512391

Unavailable

31

C RING

3231531

Unavailable

32

SHAFT, OUTPUT

3231573

$110.39

33

WASHER,SHAKEPROOF,5/16

7577902

Unavailable

34

CHAIN, DRIVE

3224043

Unavailable

35

SPKT, 12T (Opt.)

3221044

$43.99

35

SPKT, 11T (Opt.)

3221043

$39.99

35

SPKT,13T,(SPLINED) Substituted by 3221041

3221045

$42.46

36

CONNECTOR LINK

3225024

$19.99

37

PLUG,DRAIN,20MM,MAGNET

3231569

Unavailable

38

GASKET [No Longer Available]

3231538

Unavailable

39

GASKET

3231539

Unavailable

40

PLUG, OIL

3231561

Unavailable

41

BOLT [No Longer Available]

3231541

Unavailable

42

BOLT [No Longer Available]

3231542

Unavailable

43

PIPE, KNOCK

3231543

$1.41

43

PIPE, KNOCK

3231543

$1.41

44

NUT(10) [No Longer Available]

3231544

Unavailable

44

NUT(10) [No Longer Available]

3231544

Unavailable

44

NUT(10) [No Longer Available]

3231544

Unavailable

44

NUT(10) [No Longer Available]

3231544

Unavailable

45

WASHER, SPRING(10)

3231545

Unavailable

45

WASHER, SPRING(10)

3231545

Unavailable

45

WASHER, SPRING(10)

3231545

Unavailable

45

WASHER, SPRING(10)

3231545

Unavailable

46

BOLT [No Longer Available]

3231546

Unavailable

47

BOLT [No Longer Available]

3231547

Unavailable

48

PIPE,BREATHER

3231548

Unavailable

49

NUT, LOCK

3231555

Unavailable

50

KEY, HI-PRO

7721113

Unavailable

51

SW,REV./NEUT.INDIC.

4110062

$32.37

52

NUT(10)

7542404

$1.59

53

BOLT(10)

7515485

$3.03

54

SHIM 25, 0.3

3231562

Unavailable

54

SHIM 25, 0.1

3231563

Unavailable

55

SHIM 20, 0.3

3231564

Unavailable

55

SHIM 20, 0.1

3231565

Unavailable

56

SW,REV./NEUT.INDIC.

4110062

$32.37

57

SPACER, DRIVEN

5211041

Unavailable

58

BELT-DRIVE(5) Substituted by 3211077

3211048

Unavailable

59

CLUTCH, DRIVEN Substituted by 1322136

1322112

Unavailable

60

SCR-HH-5/16-18X4 GR5 ZY3

7515327

$5.59

61

LOCK WASHER(10)

7552901

$1.49

62

WASHER, DOMED(10)

5220646

$2.39

63

BEARING

3231574

Unavailable

63

BEARING

3231574

Unavailable
