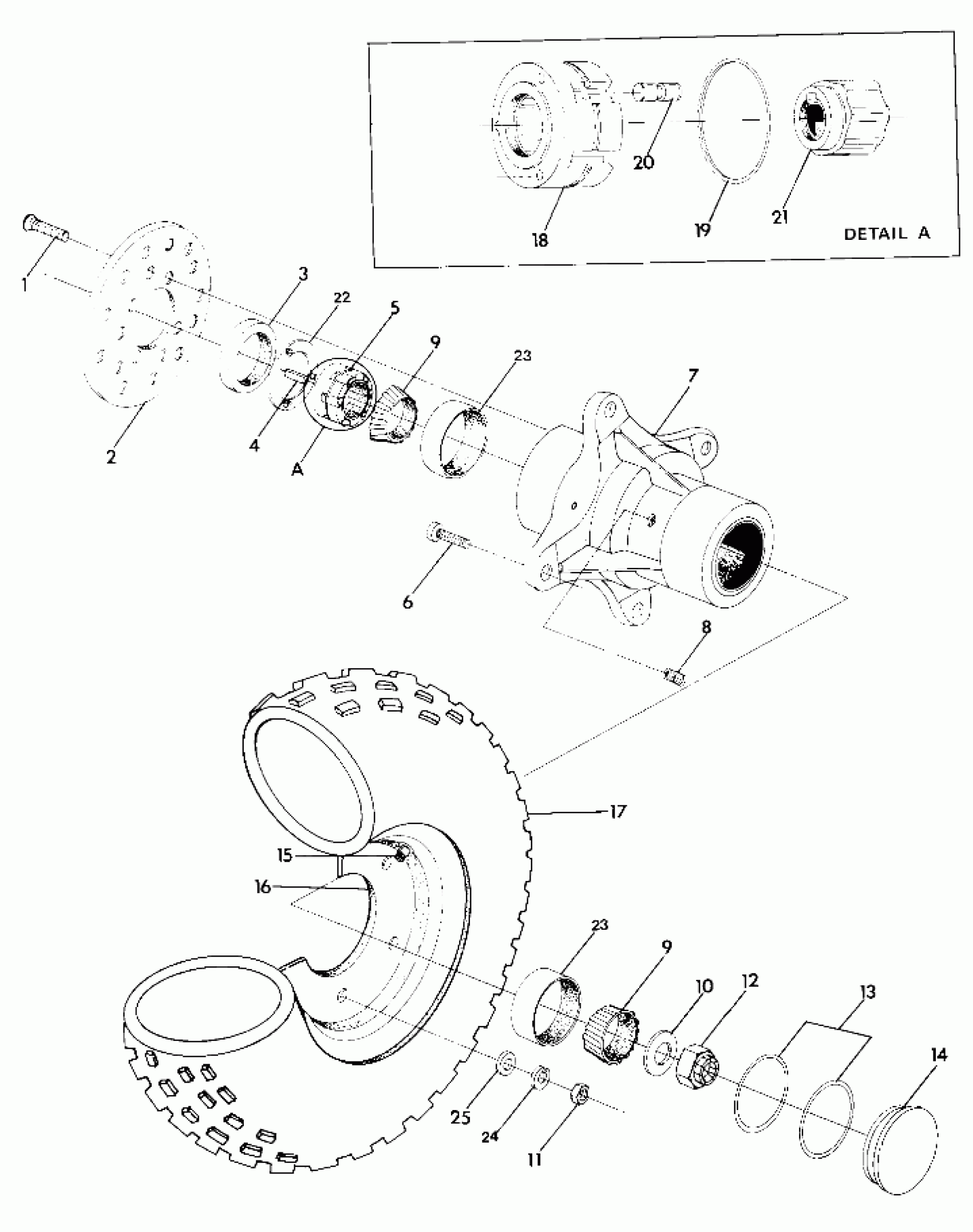

Polaris TRAIL BOSS 4X4 - W898127 Front Wheel Assembly 4x4-Updated 4/89 (49173717370021) Diagram

#

Description
Price

1

SCREW(10)

7515314

Unavailable

2

DISC BRAKE,FRONT

5211084

$124.99

3

SEAL, FR. HUB

3610019

$36.41

4

KEY

7721205

Unavailable

5

CLUTCH ASM,FR.HUB

1520143

$307.49

6

STUD,WHEEL,5/16-18(10)

7515330

Unavailable

7

HUB, WHEEL Substituted by 1520171

5130682

Unavailable

8

PLUG,PIPE

7052045

$13.75

9

BRG,TAPER.ROLL.CONE

3554506

$31.75

9

BRG,TAPER.ROLL.CONE

3554506

$31.75

10

WASHER(10)

5211101

Unavailable

11

NUT HEX(10)

7542301

$1.59

12

NUT, LOCK Substituted by 7543201

7543202

Unavailable

13

O RING

5410470

$2.41

14

CAP, HUB Substituted by 5431368

5130684

$24.27

15

VALVE-RIM

1525017

$6.46

16

RIM,FRONT,PRIMED Substituted by 1520118

1520127

Unavailable

17

TIRE,FR(22X8-10)

5410480

Unavailable

18

CAGE, ROLL Substituted by 3250028

3250023

Unavailable

19

SPRING, GARTER

3250022

Unavailable

20

ROLLS

3250010

$24.74

21

CAM

3250024

$140.09

22

Plate, Armature

5211148

$28.32

23

BRG,TAPER,ROLL CUP

3554507

$31.75

23

BRG,TAPER,ROLL CUP

3554507

$31.75

24

LOCK WASHER(10)

7552901

$1.19

25

WASHER-.344X.688X.063 FL-Y

7558402

$0.99
