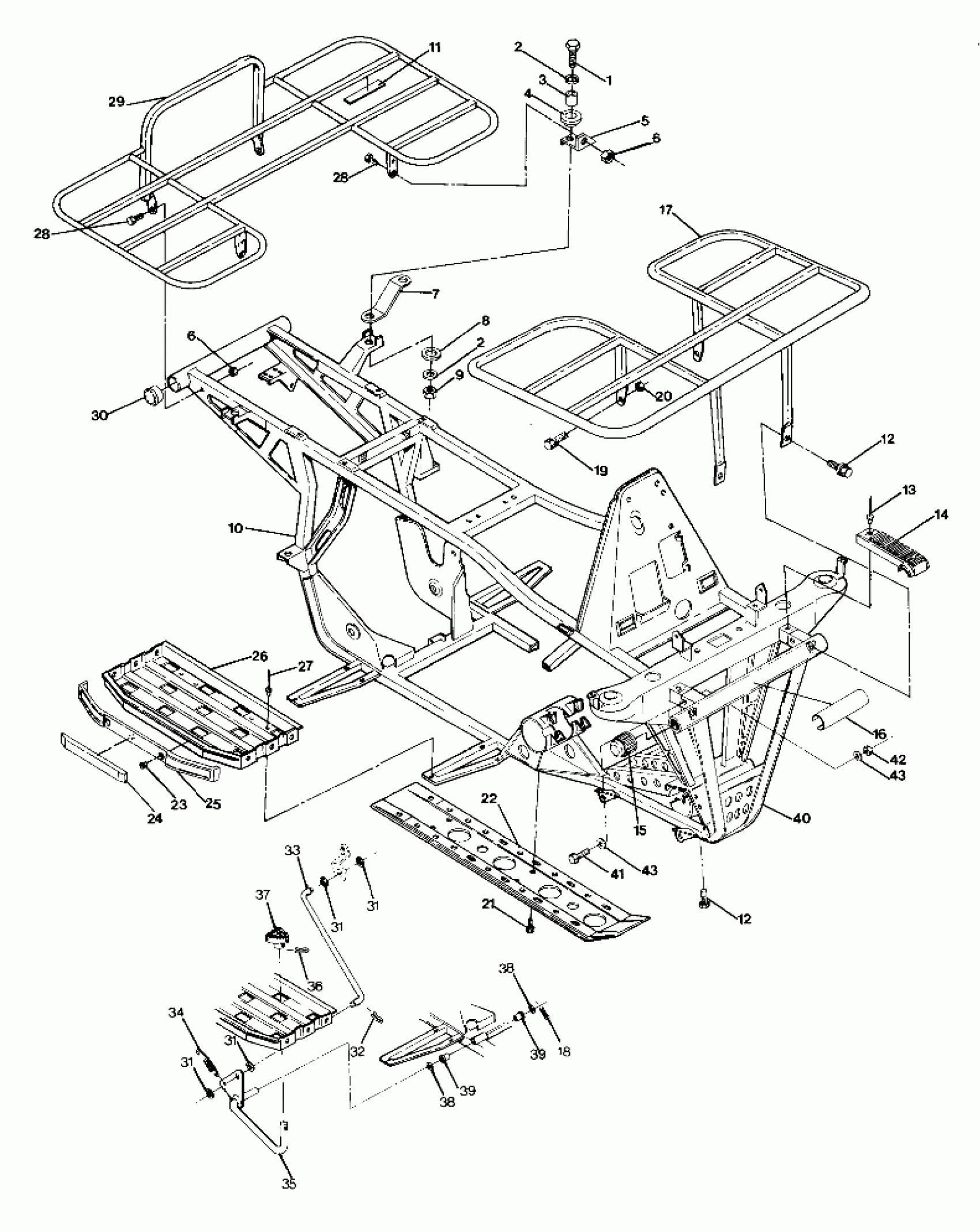

Polaris TRAIL BOSS 4X4 - W898127 Frame Assembly with Racks 4x4-Updated 4/89 (4916351635003A) Diagram

#

Description
Price

1

SCREW-FLANGED(10)

7515304

$5.59

2

WASHER(10)

7555716

$1.59

2

WASHER(10)

7555716

$1.59

3

BUSHING-RES. MT.

5010192

$6.39

4

DAMPENER

5410241

Unavailable

5

BRKT,LH SUPPORT RACK Substituted by 5220899-067

5220899

Unavailable

5

BRKT,RH SUPPORT RACK Substituted by 5220901-067

5220901

Unavailable

6

NUT, NYLOK(10) (Nylok)

7542327

$4.79

6

NUT, NYLOK(10) (Nylok)

7542327

$4.79

7

SUPPORT,R.FENDER Substituted by 5220902-067

5220902

$48.40

8

WASHER,RUBBER

5410436

$1.59

9

NUT-5/16-18 NYLOK-Y (Nylok)

7542324

$1.49

10

FRAME SQUARE WELD. Substituted by 1040167-067

1040167

Unavailable

11

PAD,RACK MOUNT

5810436

Unavailable

12

SCREW(10)

7512252

Unavailable

12

SCREW(10)

7512252

Unavailable

13

RIVET(50)

7621229

Unavailable

14

COVER,BRKT,BUMPER MT.

5431023

$10.71

15

CAP,BUMPER,FR. Substituted by 5431013-093

5431013

Unavailable

16

DECAL,FR.SUSPENSION [No Longer Available]

7072701

Unavailable

17

RACK, FRONT Substituted by 2670111-132

2670118

Unavailable

18

COTTER PIN(10)

7661401

$1.49

19

SCREW,PAN HD,PHILLIPS(10) Substituted by 7515355

7515341

Unavailable

20

NUT, NYLOK(10)

7542327

$4.79

21

BOLT(10)

7512232

$1.49

22

GUARD, ROCK Substituted by 5222272-067

5222272

Unavailable

23

RIVET,SEMI-TUBE,(50)

7661812

Unavailable

24

REFLECTOR AMBER

2670071

Unavailable

25

RUBRAIL,(FOOTREST) Substituted by 5431484

5431019

Unavailable

26

PAD, FOOT, LH. Substituted by 1040274-117

1040189

$81.75

26

PAD,FOOT, RH Substituted by 1040275-117

1040220

Unavailable

27

RIVET, (MONOBOLT) Substituted by 7661637

7661620

Unavailable

29

RACK, REAR Substituted by 2670110-132

2670117

Unavailable

30

CAP, BUMPER, 4 WHL.(10) Substituted by 5410794

5430823

Unavailable

31

WASHER Substituted by 7555827

BBC0173

Unavailable

31

WASHER Substituted by 7555827

BBC0173

Unavailable

31

WASHER Substituted by 7555827

BBC0173

Unavailable

31

WASHER Substituted by 7555827

BBC0173

Unavailable

32

PIN, COTTER(10)

7661103

$4.99

33

ROD,BRAKE LINKAGE Substituted by 5224447

5224385

Unavailable

34

SPRING-EXHAUST(10)

7042029

$4.84

35

ARM, BRAKE PAD Substituted by 1910045-067

1910045

Unavailable

36

PIN, SPIRAL(10)

7661416

Unavailable

37

PEDAL, FOOT Substituted by 5130715-067

5130715

Unavailable

38

WASHER THRUST(10)

7558702

$1.59

38

WASHER THRUST(10)

7558702

$1.59

39

BUSHING-PEDAL PIVOT

5431107

$8.79

39

BUSHING-PEDAL PIVOT

5431107

$8.79

40

BUMPER,FR,(BLK.) Substituted by 2670113-067

2670113

Unavailable

41

BOLT(10)

7512329

$3.99

42

NUT-5/16-18 NYLOK-Y

7542324

$1.49

43

WASHER-.344X.688X.063 FL-Y

7558402

$1.49

43

WASHER-.344X.688X.063 FL-Y

7558402

$1.49
