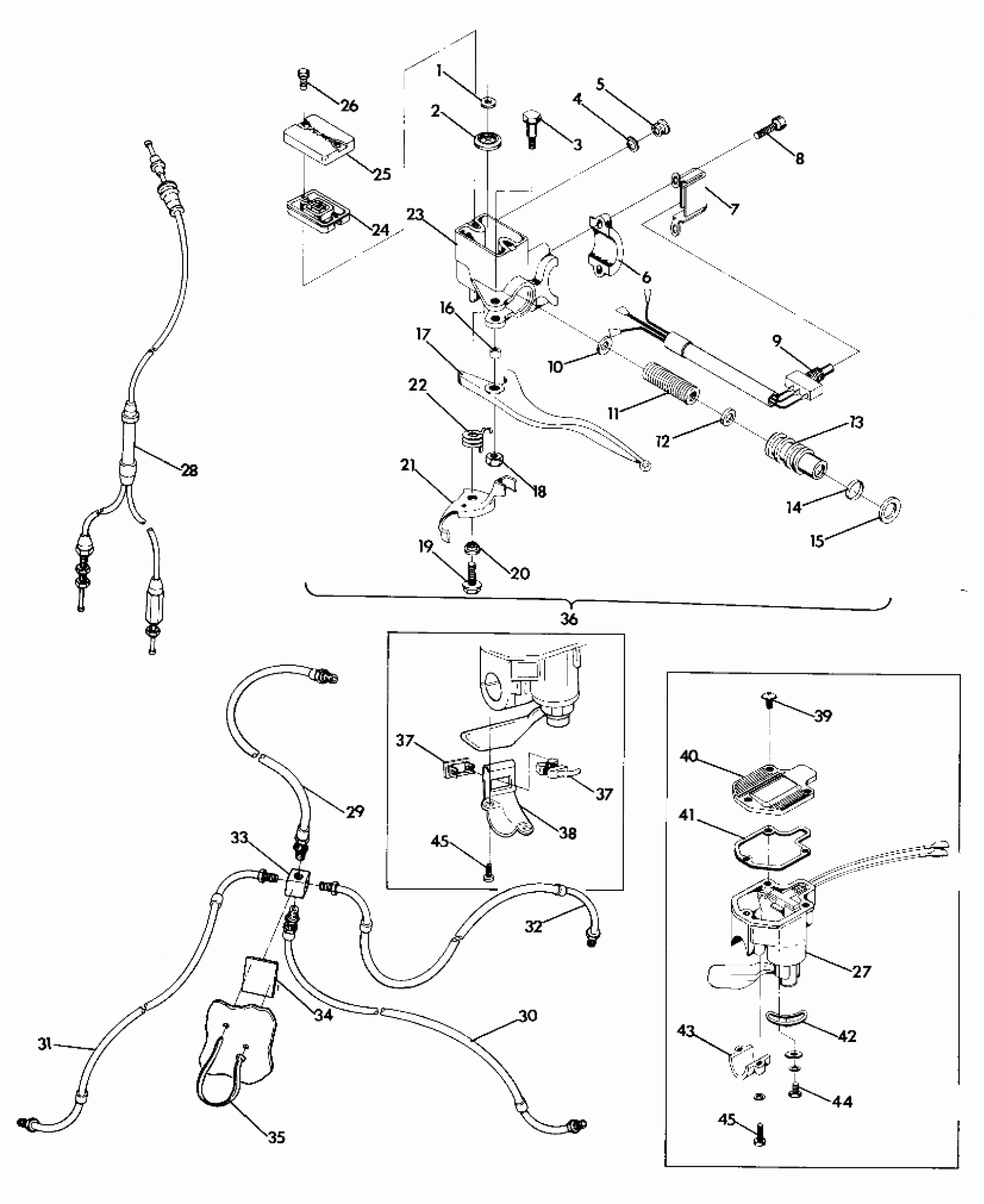

Polaris TRAIL BOSS 4X4 - W898127 Control Assembly (4916351635017A) Diagram

#

Description
Price

1

WASHER, BAFFLE(10)

1930662

Unavailable

2

BAFFLE Substituted by 1930673

1930661

Unavailable

3

BOLT,BRAKE LEVER(10)

7512287

Unavailable

4

SEAL, SIGHT GLASS

1930660

Unavailable

5

GLASS, SIGHT Substituted by 2200345

1930659

Unavailable

6

CLAMP, MASTER CYL.

5630342

Unavailable

7

BRKT,O'RIDE SW.(4X4)

5222317

Unavailable

8

BOLT,SOCKET HEAD(10)

7512290

$4.79

9

SWITCH,O'RIDE,REV. Substituted by 2200342

4110088

Unavailable

10

WASHER(10)

7555708

$3.99

11

SPRING,COMPRESSION,(10)

7041203

$33.87

12

U PACKING SEAL

5410164

Unavailable

13

PISTON, MASTER CYL.

5020520

Unavailable

14

O RING

5410163

$1.60

15

SEAL, OIL

3610022

Unavailable

16

BUSHING,BRAKE LEVER

5332931

Unavailable

17

LEVER,BRAKE,(ATV) Substituted by 2200347

5630343

Unavailable

18

NUT(10)

7542124

Unavailable

19

SCREW, SEMS(10)

7512020

$2.39

20

BUSHING,PK.BRAKE LEVER

5020545

Unavailable

21

LEVER,PARKING BRAKE

5222310

Unavailable

22

SPRING,PK.BRAKE

7041229

$32.37

23

HSG.W/SIGHT GLASS Substituted by 5130772

2200313

Unavailable

24

GASKET,MASTER CYL.

5410527

$8.99

25

COVER,MASTER CYL.

5630338

Unavailable

26

SCREW(10)

7512016

Unavailable

27

THROTTLE CONTROL ASM. Substituted by 2010091 (Incl. 39-45)

2010072

Unavailable

28

CABLE,THROTTLE CONTROL Substituted by 7080531

7080375

$204.99

29

LINE,BRAKE,UP.,W/FTGS. Substituted by 1930748 (M/C)

1930633

$84.93

30

LINE,BRAKE,LH.FRT,W/FTGS. Substituted by 1930752

1930631

$84.93

31

LINE,BRAKE,RH FRT. Substituted by 1930753

1930634

$84.93

32

LINE,BRAKE,R.,W/FTGS.

1930632

Unavailable

33

FITTING,INV.FLARE CROSS Substituted by 7052044

7052049

Unavailable

34

PAD,GAS TANK [No Longer Available]

5850040

Unavailable

35

CABLE-TIE,DIA12-50MM,WTHR-RES.

7080138

$2.41

36

MASTER CYL. ASM. Substituted by 2050046 (Incl. 1-5, 10-23)

1930651

$235.51

37

SW.,'DEMAND 4 DRIVE'

4110082

Unavailable

37

SW.,'DEMAND 4 DRIVE'

4110082

Unavailable

38

BRKT, SWITCH

5222167

Unavailable

39

SCREW,BUTTON HEAD

2010079

Unavailable

40

CAP

2010080

Unavailable

41

PACKING,THROTTLE

2010081

Unavailable

42

PLATE

2010075

Unavailable

43

HOLDER

2010078

$13.19

44

BOLT, HEX.

2010076

Unavailable

45

SCREW, SEMS(10)

2010077

Unavailable

45

SCREW, SEMS(10)

2010077

Unavailable
