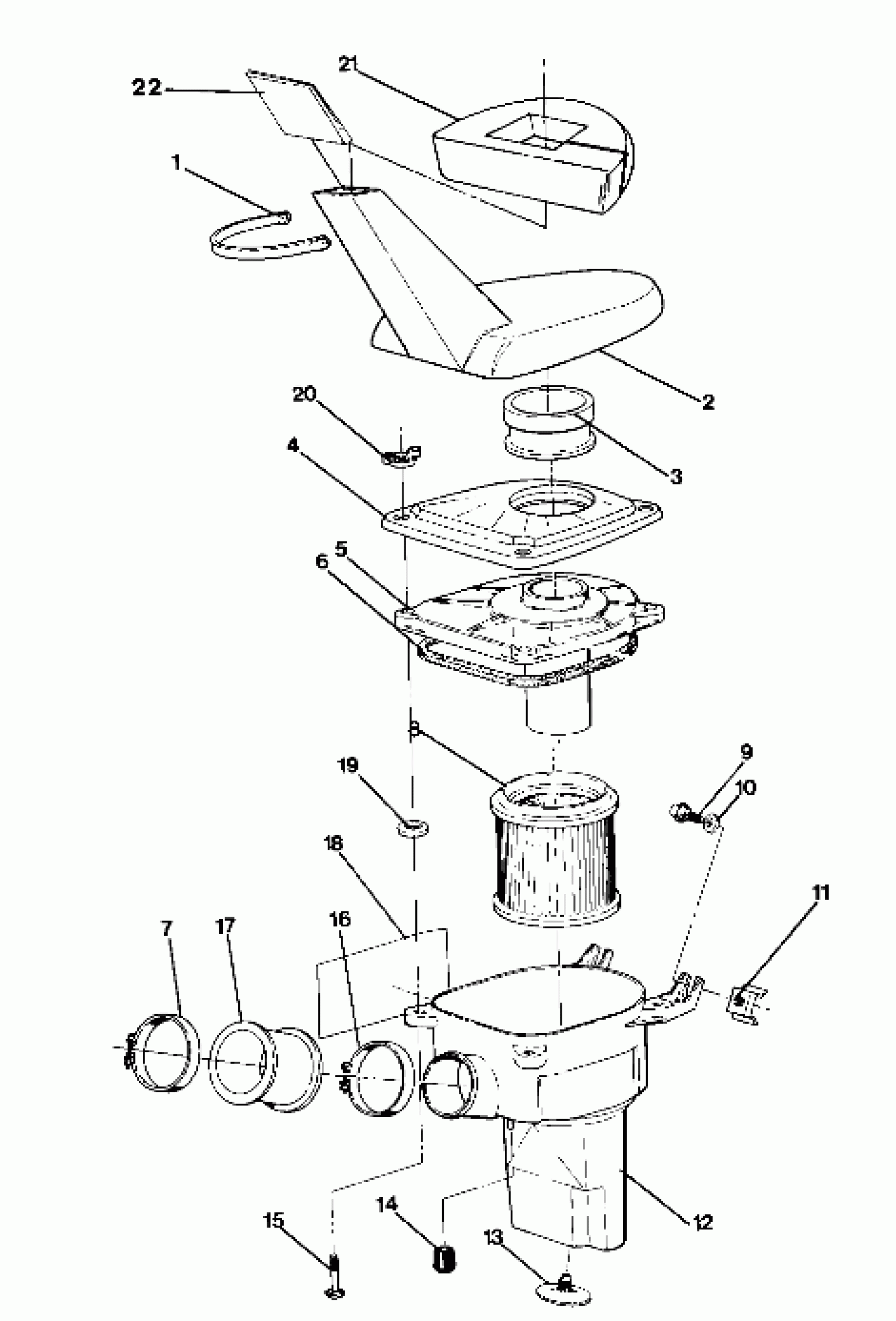

Polaris TRAIL BOSS 4X4 - W898127 Air Box Assembly (4916351635008A) Diagram

#

Description
Price

1

CLAMP, POLY

7080303

Unavailable

2

BOX,AIR SILENCER

5430976

Unavailable

3

BOOT, AIR SILENCER

5410506

Unavailable

4

RETAINER,COVER

5220980

Unavailable

5

COVER,AIR INTAKE

5430884

Unavailable

6

SEAL,COVER,AIR

5410510

Unavailable

7

BAND CLAMP

7080173

$1.29

8

FILTER, AIR

7080369

$27.99

9

BOLT(10)

7512246

Unavailable

10

WASHER,WROUGHT(10)

7558302

$1.59

11

NUT, SPEED(10)

7670060

$3.99

12

BOX,AIR INTAKE Substituted by 5431124

5430883

Unavailable

13

VALVE, UMBRELLA

5410549

Unavailable

14

BUSHING

5410529

Unavailable

15

BOLT-CARRIAGE(10)

7512275

$3.99

16

CLAMP,AIR BOX

7080336

Unavailable

17

BOOT,CARBURETOR

5410462

$27.99

18

TAPE, FOIL

5810310

Unavailable

19

NUT, PUSH-ON(10)

7670061

Unavailable

20

NUT,WING(10)

7542127

$1.49

21

SEAL, FOAM

5810441

Unavailable

22

FOAM, AIR FILTER (10)

5810444

$11.99
