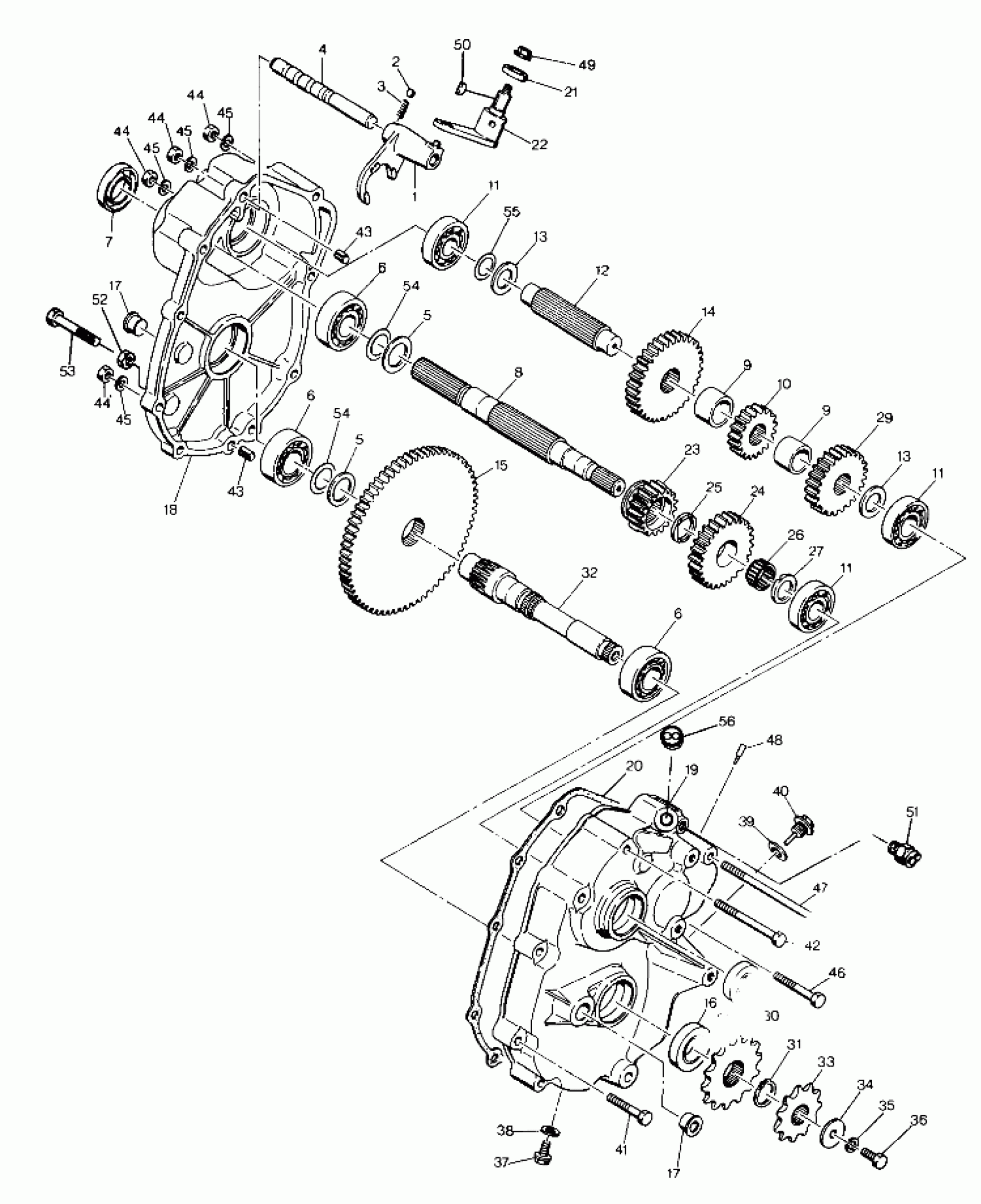

Polaris TRAIL BOSS 4X4 - W888127 Gearcase Assembly (4914761476027A) Diagram

#

Description
Price

-

GEARCASE ASM.(4X4) [No Longer Available]

1341047

Unavailable

1

SHIFTER

3231501

$78.39

2

BALL, STEEL

3231502

Unavailable

3

SPRING

3231550

$1.49

4

SHAFT, SHIFT

3231504

$15.99

5

WASHER

3231505

$3.40

5

WASHER

3231505

$3.40

6

BEARING

3231506

Unavailable

6

BEARING

3231506

Unavailable

6

BEARING

3231506

Unavailable

7

SEAL, OIL

3231507

Unavailable

8

SHAFT,INPUT

3231508

$46.83

9

COLLAR

3231509

Unavailable

9

COLLAR

3231509

Unavailable

10

GEAR

3231510

$29.59

11

BEARING

3231511

Unavailable

11

BEARING

3231511

Unavailable

11

BEARING

3231511

Unavailable

12

SHAFT

3231512

$34.70

13

Washer

3231513

$4.39

13

Washer

3231513

$4.39

14

GEAR

3231514

Unavailable

15

GEAR

3231515

$153.59

16

SEAL, OIL

3231516

Unavailable

17

SUPPORT

3231517

Unavailable

17

SUPPORT

3231517

Unavailable

18

CASE, LH [No Longer Available]

3231551

$83.19

19

CASE, RH

3231558

Unavailable

20

PACKING

3231553

Unavailable

21

SEAL, OIL

3231521

Unavailable

22

SHAFT, SELECT

3231559

$33.27

23

GEAR Substituted by 3231585

3231523

Unavailable

24

GEAR

3231524

$57.14

25

WASHER

3231525

Unavailable

26

BEARING,NEEDLE

3231526

Unavailable

27

WASHER

3231527

Unavailable

28

SEAL, OIL

3231528

Unavailable

29

GEAR

3231529

$55.54

30

SPROCKET Substituted by 3221044

3231530

$42.46

31

C RING

3231531

Unavailable

32

SHAFT, OUTPUT

3231532

Unavailable

33

SPROCKET Substituted by 3221058

3231533

$74.99

34

WASHER [No Longer Available]

3231534

Unavailable

35

WASHER, SPRING [No Longer Available]

3231535

Unavailable

36

BOLT

3231536

Unavailable

37

PLUG, DRAIN [No Longer Available]

3231537

Unavailable

38

GASKET [No Longer Available]

3231538

Unavailable

39

GASKET

3231539

Unavailable

40

PLUG, OIL

3231561

Unavailable

41

BOLT [No Longer Available]

3231541

Unavailable

42

BOLT [No Longer Available]

3231542

Unavailable

43

PIPE, KNOCK

3231543

$1.41

43

PIPE, KNOCK

3231543

$1.41

44

NUT(10) [No Longer Available]

3231544

Unavailable

44

NUT(10) [No Longer Available]

3231544

Unavailable

44

NUT(10) [No Longer Available]

3231544

Unavailable

44

NUT(10) [No Longer Available]

3231544

Unavailable

45

WASHER, SPRING(10)

3231545

Unavailable

45

WASHER, SPRING(10)

3231545

Unavailable

45

WASHER, SPRING(10)

3231545

Unavailable

45

WASHER, SPRING(10)

3231545

Unavailable

46

BOLT [No Longer Available]

3231546

Unavailable

47

BOLT [No Longer Available]

3231547

Unavailable

48

PIPE,BREATHER

3231548

Unavailable

49

NUT, LOCK

3231555

Unavailable

50

KEY, HI-PRO

7721113

Unavailable

51

SW,REV./NEUT.INDIC.

4110062

$32.37

52

NUT(10)

7542404

$1.59

53

BOLT(10)

7515485

$3.03

54

SHIM 25, 0.3

3231562

Unavailable

54

SHIM 25, 0.1

3231563

Unavailable

54

SHIM 25, 0.3

3231562

Unavailable

54

SHIM 25, 0.1

3231563

Unavailable

55

SHIM 20, 0.3

3231564

Unavailable

55

SHIM 20, 0.1

3231565

Unavailable

56

SW,REV./NEUT.INDIC.

4110062

$32.37
