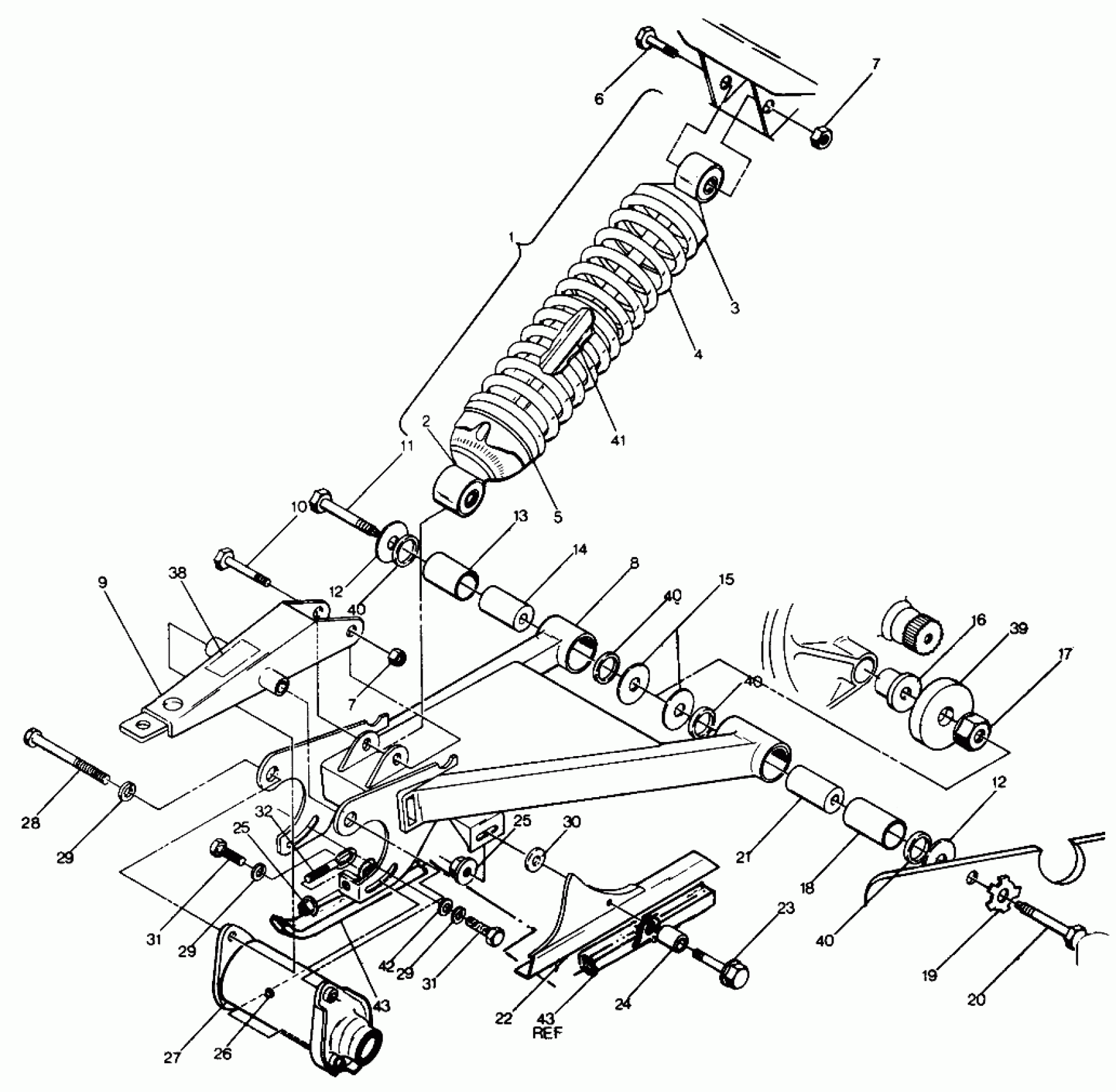

Polaris TRAIL BOSS 4X4 - W878327 Swing Arm Weldment & Rear Shock Assembly (49147514750021) Diagram

#

Description
Price

-

Desc not available [No Longer Available]

2870675

Unavailable

1

SHOCK ASM,REAR [Item NotAvailable] (Incl. 2-5)

1580004

Unavailable

2

SHOCK,REAR SUSP.

7041156

Unavailable

3

RETAINER, UPPER

5220631

Unavailable

4

SPRING,COIL(SHOCK)

7041159

Unavailable

5

CAM,ADJUSTING SPRING Substituted by 5630334

5610092

Unavailable

6

BOLT(10)

7515415

$1.49

7

NUT-LOCK(10)

7542439

$1.49

7

NUT-LOCK(10)

7542439

$1.49

8

ARM, SWING Substituted by 1580017-067

1580017

Unavailable

9

HITCH WELD. Substituted by 1040144-067

1040144

Unavailable

10

BOLT(10)

7515417

$4.79

11

BOLT, SPECIAL

7512664

Unavailable

12

BUSHING, MACH.(10)

7555752

Unavailable

12

BUSHING, MACH.(10)

7555752

Unavailable

13

BEARING

3576507

Unavailable

14

BUSHING,LH SWING ARM

5010232

$45.99

15

WASHER(10)

7555749

$1.49

16

BUSHING,SWING ARM MT.

5630267

Unavailable

17

NUT, LOCK(10)

7542717

Unavailable

18

BEARING

3576508

Unavailable

19

PLATE,BOLT LOCK

5220611

Unavailable

20

BOLT, SPECIAL

7512665

Unavailable

21

BUSHING,RH SWING ARM

5010233

Unavailable

22

GUARD, CHAIN Substituted by 5430776

5430862

$34.74

23

SCREW-FLANGED(10)

7515304

$5.59

24

Bushing

5332828

$9.59

25

NUT LOCK(10)

7542321

$1.49

25

NUT LOCK(10)

7542321

$1.49

26

FITTING,LUBE.W/BALL CK.(10)

7080306

$3.19

27

HOUSING,AXLE,WELD. Substituted by 1011657-067

1011657

Unavailable

28

BOLT

7512670

Unavailable

29

LOCK WASHER(10)

7553201

$3.99

29

LOCK WASHER(10)

7553201

$3.99

29

LOCK WASHER(10)

7553201

$3.99

30

WASHER,WROUGHT(10)

7558302

$1.59

31

BOLT(10)

7512669

Unavailable

31

BOLT(10)

7512669

Unavailable

32

BOLT, ADJUSTER

7080293

Unavailable

38

DECAL, HITCH [No Longer Available]

7072480

Unavailable

39

GUIDE,ROLLER&CHAIN

5430853

$9.91

40

SEAL,OIL

3610016

$28.32

40

SEAL,OIL

3610016

$28.32

40

SEAL,OIL

3610016

$28.32

40

SEAL,OIL

3610016

$28.32

41

SLEEVE

5430857

Unavailable

42

WASHER

7555753

Unavailable

43

GUARD,CHAIN,WELD. Substituted by 1040152-067

1040152

Unavailable

43

GUARD,CHAIN,WELD. Substituted by 1040152-067

1040152

Unavailable
