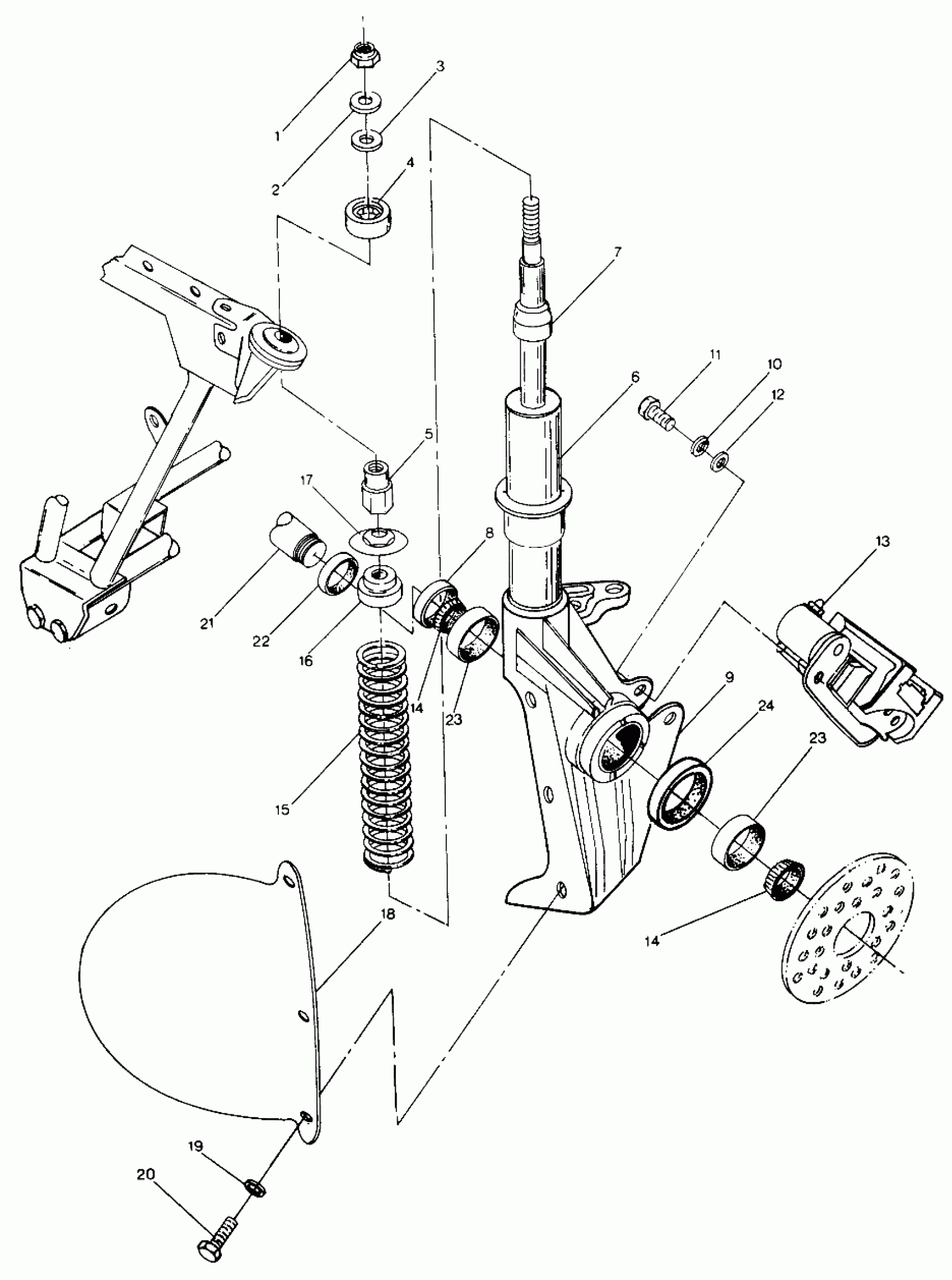

Polaris TRAIL BOSS 4X4 - W878327 Strut Assembly (49147514750015) Diagram

#

Description
Price

1

NUT,FLEX LOC(10)

7542507

$3.99

2

WASHER(10)

7555749

$1.49

3

SPACER-RUBBER

5810291

$3.99

4

PIVOT BALL, TOP Substituted by 5432872

5430806

Unavailable

5

SPACER, THREADED

5130631

Unavailable

6

TUBE, STRUT Substituted by 1843029

1843017

Unavailable

7

BUMPER, RUBBER

5410429

Unavailable

8

SEAL,STRUT,(4WHL.)

3610018

Unavailable

9

HUB STRUT ASM,LH Substituted by 2200283

1843024

Unavailable

9

HUB STRUT ASM,RH Substituted by 2200284

1843025

Unavailable

10

LOCK WASHER(10)

7552901

$1.49

11

SCREW,H.H.CAP(10) [No Longer Available]

7516714

$3.99

12

WASHER-.344X.688X.063 FL-Y

7558402

$1.49

13

CALIPER,LH,FRONT [No Longer Available]

1910033

Unavailable

13

CALIPER,RH,FRONT

1910034

Unavailable

14

BRG,TAPER.ROLL.CONE

3554506

$31.99

14

BRG,TAPER.ROLL.CONE

3554506

$31.99

15

SPRING,STRUT,RED Substituted by 7041161-067

7041189

Unavailable

16

RETAINER,SPRING,TOP

5220602

Unavailable

17

PIVOT BALL,BOTTOM Substituted by 5432871

5430807

Unavailable

18

SHIELD, BOOT,LH

5430915

Unavailable

18

SHIELD, BOOT,RH

5430916

Unavailable

19

WASHER(10)

7558301

$1.49

20

SCREW(10)

7512208

$3.99

21

U-JOINT ASM,W/SLEAVE Substituted by 1380017

1380013

Unavailable

22

COLLAR

5220883

Unavailable

23

BRG,TAPER,ROLL CUP

3554507

$31.99

23

BRG,TAPER,ROLL CUP

3554507

$31.99

24

SLEEVE,STRUT SEAL

5220882

$53.59
