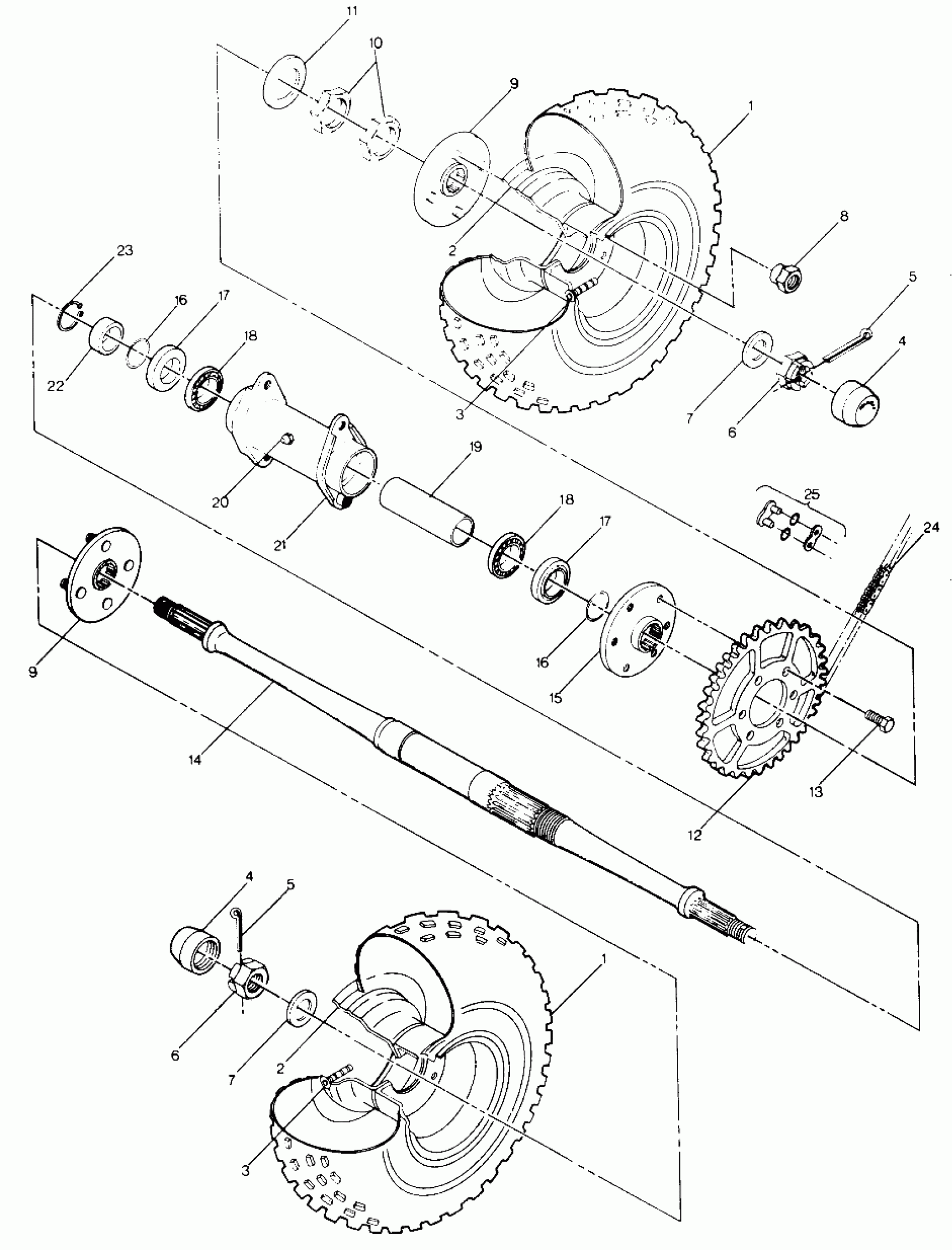

Polaris TRAIL BOSS 4X4 - W878327 Rear Wheel Drive Assembly (49147514750019) Diagram

#

Description
Price

1

TIRE,R(24X11-10)

5410479

Unavailable

1

TIRE,R(24X11-10)

5410479

Unavailable

2

RIM,REAR,PRIMED Substituted by 1520114

1520128

Unavailable

3

VALVE-RIM

1525017

$5.59

3

VALVE-RIM

1525017

$5.59

4

COVER,DUST,HUB Substituted by 5411164

5410404

Unavailable

4

COVER,DUST,HUB Substituted by 5411164

5410404

Unavailable

5

PIN, COTTER(10)

7661404

$4.79

5

PIN, COTTER(10)

7661404

$4.79

6

NUT, CASTLE(10)

7543005

Unavailable

6

NUT, CASTLE(10)

7543005

Unavailable

7

WASHER(10)

7555745

$7.19

7

WASHER(10)

7555745

$7.19

8

NUT, WHEEL(10)

7542714

$1.59

9

HUB, REAR Substituted by 1520102-067

1520102

Unavailable

9

HUB, REAR Substituted by 1520102-067

1520102

Unavailable

10

Nut, Jam

5020468

$39.59

11

WASHER(10)

7555764

Unavailable

12

SPROCKET, 42T Substituted by 3222070

3223009

Unavailable

13

BOLT(10) Substituted by 7515494

7515482

Unavailable

14

AXLE, REAR

5020469

Unavailable

15

HUB,SPROCKET WELD Substituted by 1520170

1011559

Unavailable

16

O RING, 1 5/16(10)

5410415

Unavailable

16

O RING, 1 5/16(10)

5410415

Unavailable

17

SEAL, REAR AXLE

3610013

$19.99

17

SEAL, REAR AXLE

3610013

$19.99

18

Bearing, Ball

3515501

$27.99

18

Bearing, Ball

3515501

$27.99

19

TUBE,BEARING SPACER

5010204

Unavailable

20

FITTING,LUBE.W/BALL CK.(10)

7080306

$3.19

21

HOUSING,AXLE,WELD. Substituted by 1011657-067

1011657

Unavailable

22

SPACER,BEARING

5010206

$35.99

23

RING, SNAP(10)

7710405

$4.79

24

CHAIN, FINAL DRIVE

3224034

Unavailable

25

CONNECTOR LINK

3225024

$19.99
