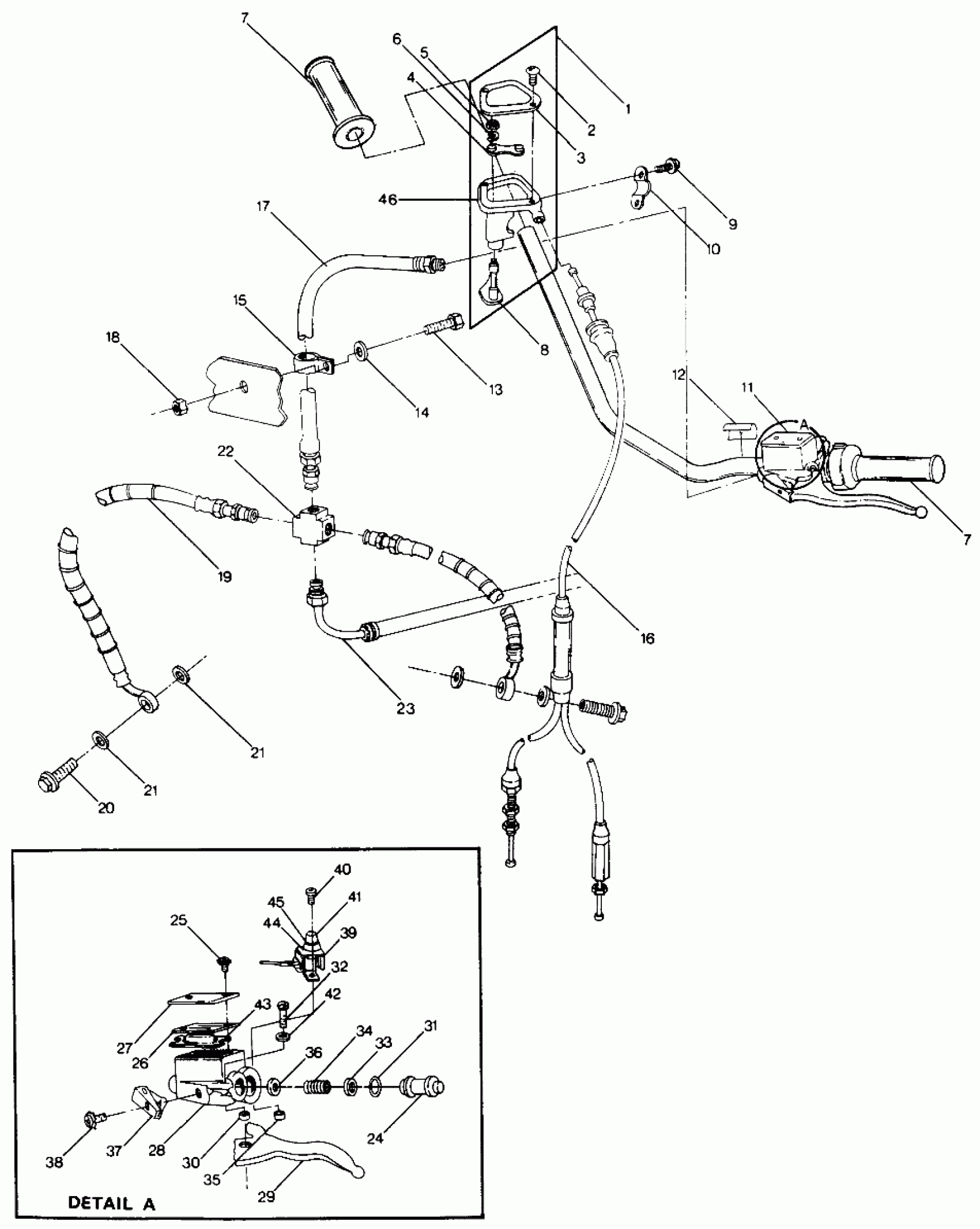

Polaris TRAIL BOSS 4X4 - W878327 Hand Control Cable Assembly (49147514750013) Diagram

#

Description
Price

1

LEVER,THROTTLE ASM. [No Longer Available] (Incl. 2-6, 8)

2010045

Unavailable

2

SCREW

2010054

Unavailable

3

COVER,THROTTLE CONTROL

5430804

Unavailable

4

ARM

2010051

Unavailable

5

NUT

2010053

Unavailable

6

WASHER [No Longer Available]

2010052

Unavailable

7

GRIP, HANDLE BAR Substituted by 5431030

5410416

$24.27

7

GRIP, HANDLE BAR Substituted by 5431030

5410416

$24.27

8

LEVER

2010049

Unavailable

9

SCREW&WASHER

2010047

Unavailable

10

HOLDER,LEVER,LOW.1

2050005

Unavailable

11

CYLINDER, MASTER Substituted by 2050062

1930622

$235.51

12

DECAL,O'RIDE SWITCH Substituted by 7076274

7072390

Unavailable

13

BOLT(10) Substituted by 7512240

7512111

Unavailable

14

WASHER(10)

7558301

$1.49

15

CLAMP(10) Substituted by 7080573

7080347

Unavailable

16

CABLE, THROTTLE

7080328

Unavailable

17

LINE,BRAKE,UPPER [No Longer Available]

1930620

Unavailable

18

NUT-LOCK(10)

7542122

$1.49

19

LINE,BRAKE,LOWER

1930602

Unavailable

20

BOLT [No Longer Available]

5020487

Unavailable

21

WASHER,BANJO BOLT Substituted by 5410988

5410469

Unavailable

21

WASHER,BANJO BOLT Substituted by 5410988

5410469

Unavailable

22

FITTING, TEE

7052044

Unavailable

23

LINE,BRAKE,REAR

1930619

Unavailable

24

PISTON

5020511

Unavailable

25

SCREW, SEMS(10)

7511859

Unavailable

26

GASKET

5410487

Unavailable

27

COVER RESERVOIR

5630127

$47.39

28

HOUSING,MASTER CYL. Substituted by 2050073

5630312

$235.51

29

LEVER, BRAKE

5610106

$28.15

30

BUSHING

5332892

Unavailable

31

O RING

5410163

$1.60

32

SCREW(10)

7512011

Unavailable

33

U PACKING SEAL

5410164

Unavailable

34

SPRING,COMPRESSION,(10)

7041203

$33.87

35

SCREW,SET(10)

7512308

Unavailable

36

WASHER(10)

7555708

$3.99

37

BRAKE LOCK ASM.

2050040

Unavailable

38

SCREW, SEMS(10)

7512010

Unavailable

39

BRKT.,O'RIDE SW.

5220837

Unavailable

40

SCREW, SEMS(10)

7511860

Unavailable

41

SWITCH,O'RIDE,REV.LIMIT

4110072

Unavailable

42

WASHER,TOOTH-LOCK(10)

7555780

Unavailable

43

BAFFLE,MASTER CYL.

5410512

Unavailable

44

WASHER(10)

5850081

Unavailable

45

DESC NOT_AVAILABLE

8560015

Unavailable

46

BODY, THROTTLE

2010056

Unavailable
