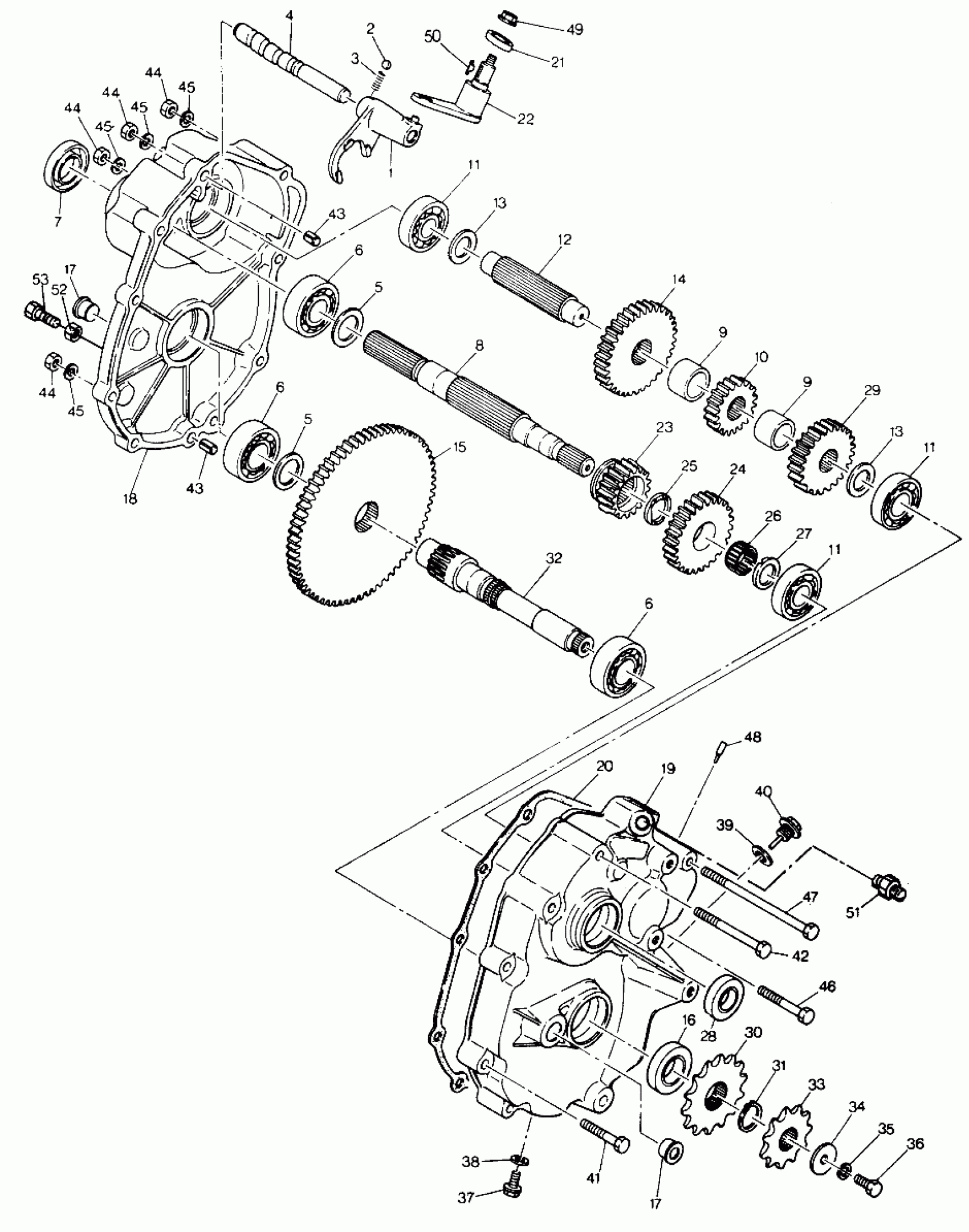

Polaris TRAIL BOSS 4X4 - W878327 Gearcase Assembly (49147514750027) Diagram

#

Description
Price

-

GEARCASE ASM. (4X4) [No Longer Available]

1341039

Unavailable

1

SHIFTER

3231501

$78.39

1

SHIFTER

3231501

$78.39

2

BALL, STEEL

3231502

Unavailable

3

SPRING

3231550

$1.49

4

SHAFT, SHIFT

3231504

$15.99

5

WASHER

3231505

$3.40

5

WASHER

3231505

$3.40

6

BEARING

3231506

Unavailable

6

BEARING

3231506

Unavailable

6

BEARING

3231506

Unavailable

7

SEAL, OIL

3231507

Unavailable

8

SHAFT,INPUT

3231508

$46.83

9

COLLAR

3231509

Unavailable

9

COLLAR

3231509

Unavailable

10

GEAR

3231510

$29.59

11

BEARING

3231511

Unavailable

11

BEARING

3231511

Unavailable

12

SHAFT

3231512

$34.70

13

Washer

3231513

$4.39

13

Washer

3231513

$4.39

14

GEAR

3231514

Unavailable

15

GEAR

3231515

$153.59

16

SEAL, OIL

3231516

Unavailable

17

SUPPORT

3231517

Unavailable

17

SUPPORT

3231517

Unavailable

18

CASE, LH [No Longer Available]

3231551

$83.19

19

CASE, RH

3231552

Unavailable

20

PACKING

3231553

Unavailable

21

SEAL, OIL

3231521

Unavailable

22

SHAFT, SELECT [No Longer Available]

3231554

Unavailable

23

GEAR Substituted by 3231585

3231523

Unavailable

24

GEAR

3231524

$57.14

25

WASHER

3231525

Unavailable

26

BEARING,NEEDLE

3231526

Unavailable

27

WASHER

3231527

Unavailable

28

SEAL, OIL

3231528

Unavailable

29

GEAR

3231529

$55.54

30

SPROCKET Substituted by 3221044

3231530

$42.46

31

C RING

3231531

Unavailable

32

SHAFT, OUTPUT

3231532

Unavailable

33

SPROCKET Substituted by 3221058

3231533

$74.99

34

WASHER [No Longer Available]

3231534

Unavailable

35

WASHER, SPRING [No Longer Available]

3231535

Unavailable

36

BOLT

3231536

Unavailable

37

PLUG, DRAIN [No Longer Available]

3231537

Unavailable

38

GASKET [No Longer Available]

3231538

Unavailable

39

GASKET

3231539

Unavailable

40

PLUG, OIL [No Longer Available]

3231540

Unavailable

41

BOLT [No Longer Available]

3231541

Unavailable

42

BOLT [No Longer Available]

3231542

Unavailable

43

PIPE, KNOCK

3231543

$1.41

43

PIPE, KNOCK

3231543

$1.41

44

NUT(10) [No Longer Available]

3231544

Unavailable

44

NUT(10) [No Longer Available]

3231544

Unavailable

44

NUT(10) [No Longer Available]

3231544

Unavailable

44

NUT(10) [No Longer Available]

3231544

Unavailable

45

WASHER, SPRING(10)

3231545

Unavailable

45

WASHER, SPRING(10)

3231545

Unavailable

45

WASHER, SPRING(10)

3231545

Unavailable

45

WASHER, SPRING(10)

3231545

Unavailable

46

BOLT [No Longer Available]

3231546

Unavailable

47

BOLT [No Longer Available]

3231547

Unavailable

48

PIPE,BREATHER

3231548

Unavailable

49

NUT, LOCK

3231555

Unavailable

50

KEY, HI-PRO

7721113

Unavailable

51

SW,REV./NEUT.INDIC.

4110062

$32.37

52

NUT(10)

7542404

$1.59

53

BOLT(10)

7515485

$3.03
