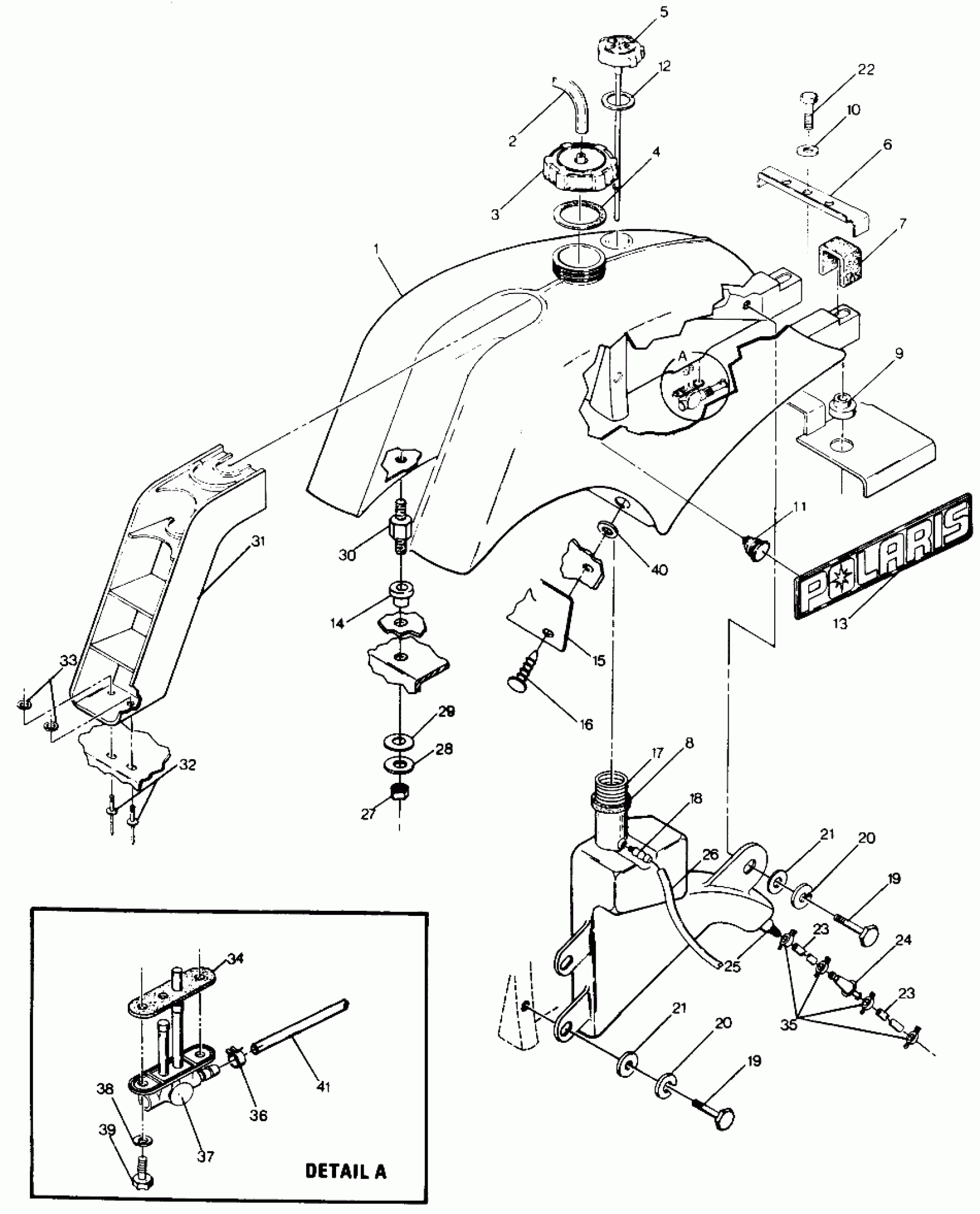

Polaris TRAIL BOSS 4X4 - W878327 Fuel Tank Assembly (49147514750009) Diagram

#

Description
Price

1

TANK,GAS,BLACK

5430898

Unavailable

2

LINE, VENT [No Longer Available]

5521171

Unavailable

3

CAP, GAS TANK [No Longer Available]

5430799

Unavailable

4

GASKET, GAS CAP

5810288

Unavailable

5

CAP/DIPSTICK, OIL [No Longer Available] (Incl. 12)

2511162

Unavailable

6

PLATE,REAR TANK MT.

5220674

Unavailable

7

PAD,FUELTANK BRKT. Substituted by 8360026

5810317

Unavailable

8

PAD,SPOUT,OIL [No Longer Available]

5810311

Unavailable

9

GROMMET,FUEL TANK,REAR

5410428

Unavailable

10

WASHER(10)

7558301

$1.49

11

CLIP, PUSH-ON(10)

7670052

$1.99

12

GASKET-OIL CAP

5810141

$2.39

13

LOGO,SILVER,POLARIS

5430901

Unavailable

14

GROMMET,FUEL TANK,FRONT

5410449

Unavailable

15

FLAP,SPLASHGUARD

5850070

Unavailable

16

CLIP,(PLASTIC DART)

7670058

Unavailable

17

TANK,OIL, 3&4 WHL.

5430762

Unavailable

18

VENT-TANK

5430579

Unavailable

19

SCREW(10)

7512113

$3.99

19

SCREW(10)

7512113

$3.99

20

LOCK WASHER(10)

7552801

$1.59

20

LOCK WASHER(10)

7552801

$1.59

21

WASHER,WROUGHT(10)

7558302

$1.59

21

WASHER,WROUGHT(10)

7558302

$1.59

22

SCREW(10)

7512252

Unavailable

23

GAS LINE, (FT.) [Cannot Purchase as Assembly]

8450003

Unavailable

23

GAS LINE, (FT.) [Cannot Purchase as Assembly]

8450003

Unavailable

24

FILTER,SMALL,IN-LINE,(10)

2530009

$5.65

25

FITTING - OUTLET(10)

7052023

$24.99

26

KIT-TANK VENT

2200190

Unavailable

27

NUT

7542332

Unavailable

28

WASHER(10)

7555716

$1.59

29

WASHER, RUBBER

5410430

Unavailable

30

STUD,FUELTANK MT.

5020499

Unavailable

31

LOUVER,AIR INTAKE

5430765

Unavailable

32

RIVET(50)

7621457

$1.49

33

WASHER,13/64X1/2X18GA,FL-Y

7558212

$1.49

34

GASKET, FUEL VALVE

5810308

Unavailable

35

CLAMP-HOSE, (LARGE GREEN)

7080307

$1.49

36

CLAMP-HOSE,(10)

7080236

$1.59

37

VALVE,FUEL TANK

7052041

Unavailable

39

BOLT(10)

7512261

$4.99

40

WASHER, RUBBER

5410450

Unavailable

41

GAS LINE,(GOODYEAR) [Cannot Purchase as Assembly]

8450042

Unavailable
