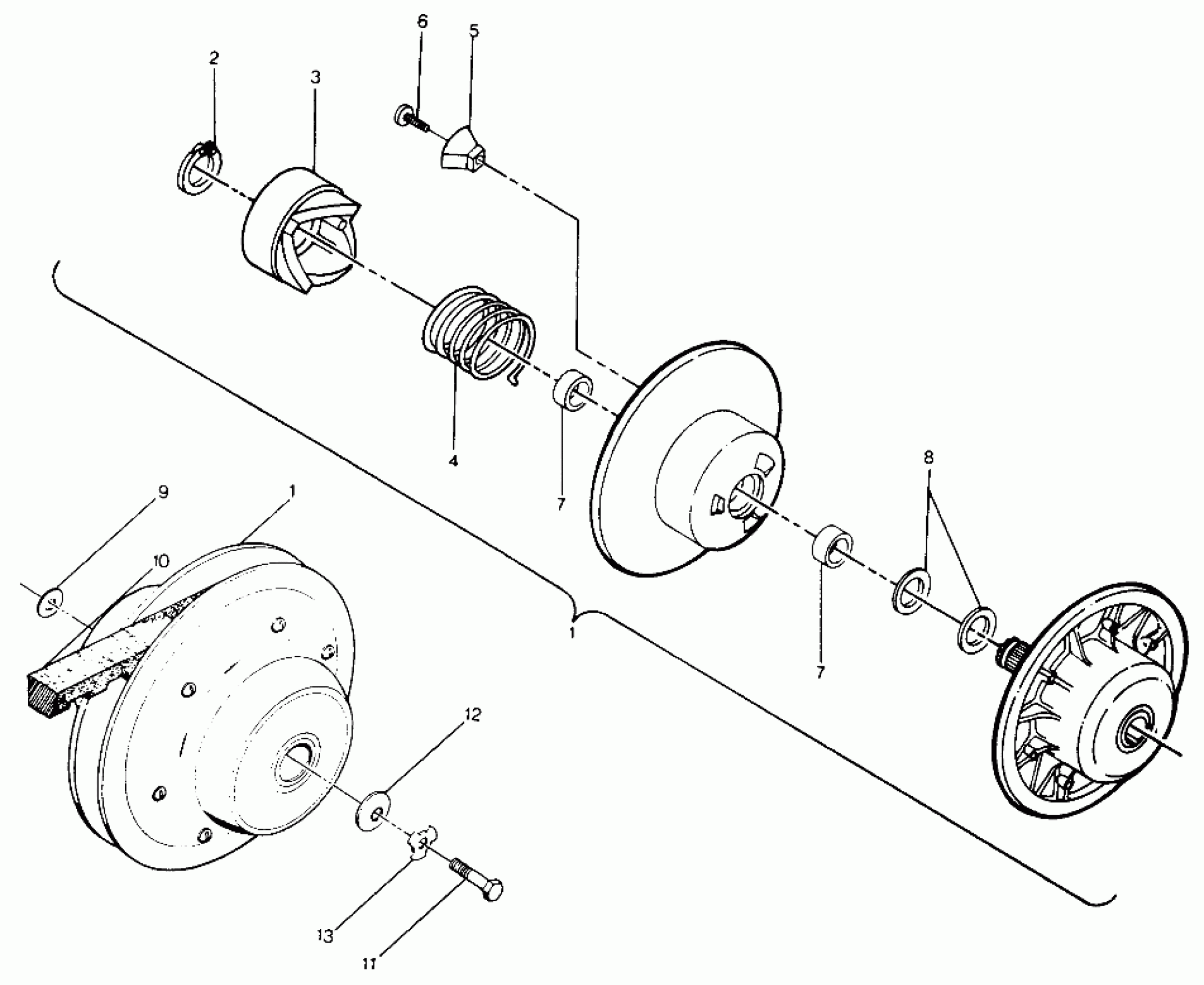

Polaris TRAIL BOSS 4X4 - W878327 Driven Clutch Assembly (49147514750025) Diagram

#

Description

Price

1

CLUTCH, DRIVEN Substituted by 1322136 (Incl. 2-8)

1322112

Unavailable

1

CLUTCH, DRIVEN Substituted by 1322136 (Incl. 2-8)

1322112

Unavailable

2

RETAINING RING(10)

7714401

$2.63

3

RAMP,STATIONARY Substituted by 5130738

5630256

Unavailable

4

SPRING-CLUTCH Substituted by 7041198

7041038

$52.60

5

BUTTON,RAMP

5430766

Unavailable

6

BOLT(10)

7511854

$1.49

7

BUSHING, DRIVEN

3576504

$23.99

7

BUSHING, DRIVEN

3576504

$23.99

8

WASHER(10)

7556804

$1.49

9

SPACER, DRIVEN

5211041

Unavailable

10

BELT-DRIVE(5) Substituted by 3211077

3211048

Unavailable

11

SCR-HH-5/16-18X4 GR5 ZY3

7515327

$5.59

12

WASHER, DOMED(10)

5220646

$2.39

13

LOCK WASHER(10)

7552901

$1.49
