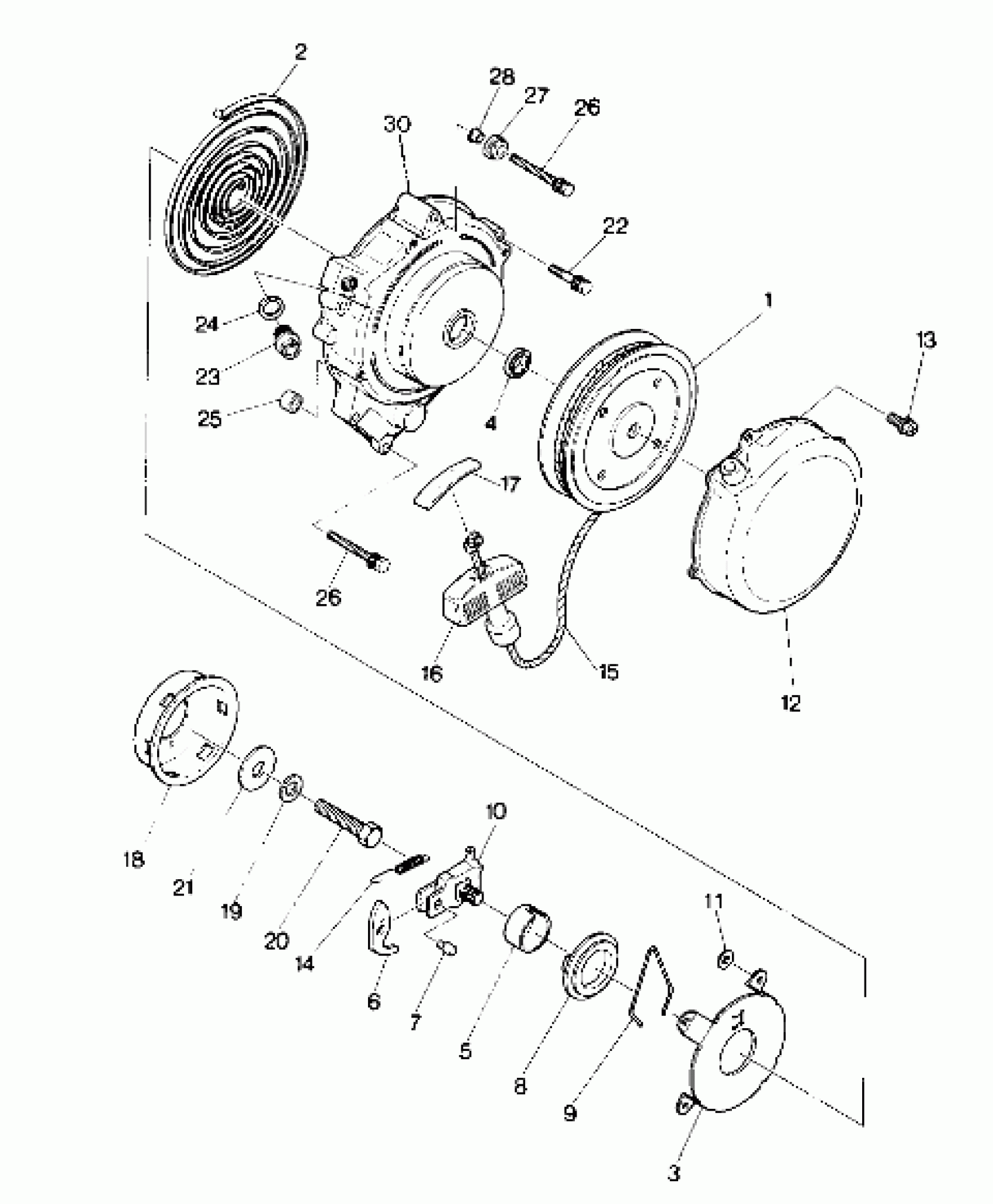

Polaris TRAIL BOSS 4X4 - W878127 Recoil Starter Assembly (4913521352044A) Diagram

#

Description
Price

-

STARTER, RECOIL Substituted by 3083924 (Incl. 1-18)

3083812

Unavailable

1

REEL, COMPL.

3083814

$97.13

2

Spiral Spring

-------

Unavailable

3

Spring Case

-------

Unavailable

4

Grommet

3083817

Unavailable

5

Hook, Spring

3083818

$39.99

6

Ratchet

3083819

Unavailable

7

Pin, Ratchet

3083820

Unavailable

8

GUIDE,RATCHET

3083821

Unavailable

9

SPRING,FRICTION Substituted by 3083912

3083822

$25.40

10

GUIDE, COMPL. Substituted by 3083913

3083823

Unavailable

11

Push Nut

-------

Unavailable

12

CASE, STARTER, COMPL. [No Longer Available]

3083825

Unavailable

13

Bolt, Flange

3083826

Unavailable

14

Spring, Return

3083827

$11.59

14

ROPE ASM. Substituted by 2870621

3083828

Unavailable

15

STARTER ROPE Substituted by 2870621

3083829

Unavailable

16

Knob, Starter

3083659

Unavailable

17

Cap, Knob

3083660

Unavailable

18

PULLEY,STARTING UNIT

3083830

Unavailable

19

WASHER, SPRING(10)

3080281

$0.79

20

BOLT

3083831

Unavailable

21

WASHER

3083832

Unavailable

22

BOLT&WASHER ASM.

3082228

Unavailable

23

PLUG Substituted by 3086749

3083453

Unavailable

24

GASKET

3082956

$4.84

25

BUSHING, STARTER

3083669

Unavailable

26

BOLT&WASHER Substituted by 3083729

3083217

Unavailable

26

BOLT&WASHER Substituted by 3083729

3083217

Unavailable

27

MOUNTING,RUBBER

3083731

$4.95

28

COLLAR

3083732

Unavailable

30

Starter Case B

-------

Unavailable
