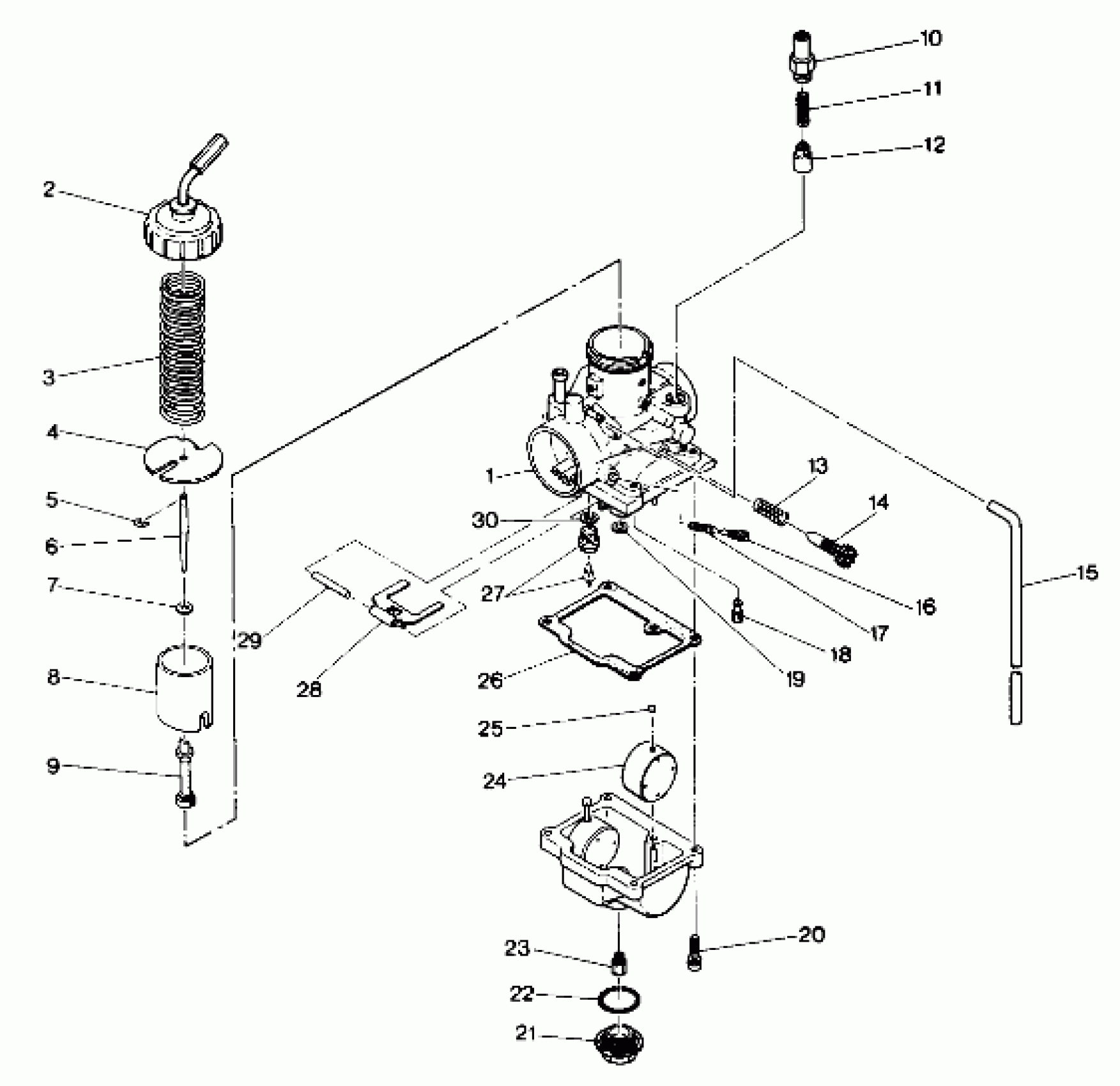

Polaris TRAIL BOSS 4X4 - W878127 Carburetor Assembly (4913521352041A) Diagram

#

Description
Price

1

CARBURETOR Substituted by 3130424

3130383

Unavailable

2

CAP ASM.

3130363

Unavailable

3

SPRING,THROTTLE

3130354

$32.37

4

PLATE,THROTTLE

3130002

$24.27

5

E RING(10) Substituted by 3130508

3130003

$6.46

6

JET NEEDLE Substituted by 3130155

3130356

$28.32

7

Washer

3130355

$7.14

8

VALVE,THROTTLE,2.5

3130384

$81.75

9

NEEDLE JET,O-0(169) (169)

3130385

Unavailable

10

Cap, Plunger

3130359

$14.56

11

SPRING,PLUNGER

3130006

$9.70

12

PLUNGER ASM, STARTER

3130328

$36.41

13

SPRING,THROTTLE ADJ.

3130010

$9.70

14

Screw, Throttle Stop

3130324

Unavailable

15

KIT-TANK VENT

2200190

Unavailable

16

SCREW,AIR

3130011

$19.84

17

SPRING,AIR ADJUST

3130012

$9.70

18

JET,PILOT,#50(10) Substituted by 3130629

3130069

$8.08

19

WASHER (10)

3130014

$1.59

20

SCREW & WASHER(10)

3130025

$3.17

21

BOLT,BANJO

3130321

$23.81

22

O RING

3130239

Unavailable

23

JET,MAIN,HX.HD.#145

3130112

Unavailable

24

FLOAT ASM

3130021

$44.51

25

CAP,(10)

3130237

$4.03

26

PACKING,FLOAT CHAMBER

3130020

$16.17

27

VALVE, NEEDLE

3130360

$56.99

28

ARM,FLOAT

3130018

$28.32

29

PIN, FLOAT

3130361

$9.70

30

PACKING(10)

3130017

$4.03
