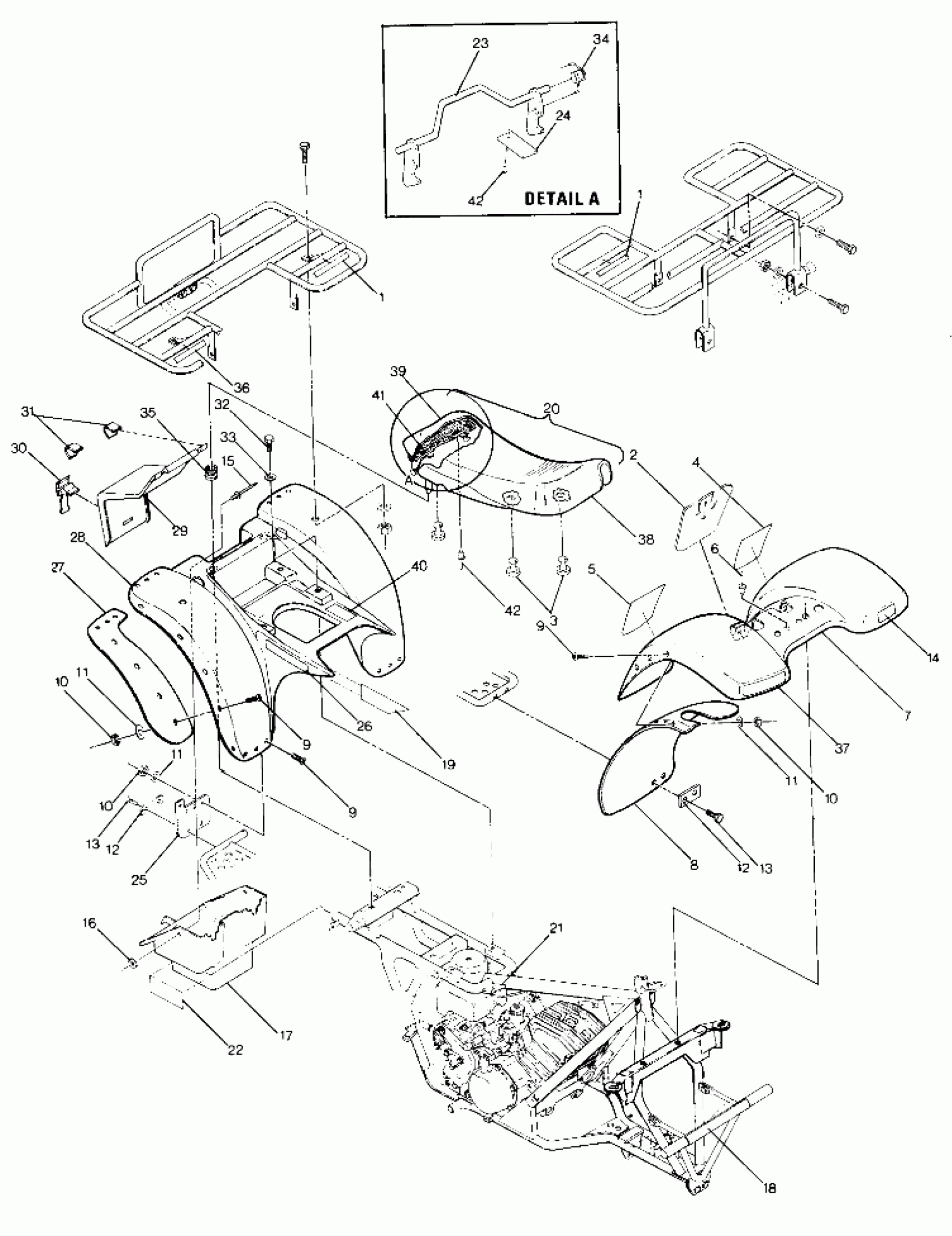

Polaris TRAIL BOSS 4X4 - W878127 Body Assembly (4913521352001A) Diagram

#

Description
Price

1

DECAL,WRN.HVY.LD. Substituted by 7072605

7072381

Unavailable

1

DECAL,WRN.HVY.LD. Substituted by 7072605

7072381

Unavailable

2

FLAP,SPLASHGUARD

5850070

Unavailable

3

Bumper, Rubber

5410414

$3.19

4

DECAL,WRN.,FR. Substituted by 7072435 (French)

7072384

Unavailable

5

DECAL,WRN.,ENG. Substituted by 7072436 (English)

7072385

Unavailable

6

RIVET(50)

7621457

$1.49

7

CAB, FRONT Substituted by 5431248-119

5430897

Unavailable

8

MUDFLAP,FRONT,LH

5850071

Unavailable

8

MUDFLAP,FRONT,RH

5850072

Unavailable

9

BOLT, BLACK(10)

7512282

$1.49

9

BOLT, BLACK(10)

7512282

$1.49

9

BOLT, BLACK(10)

7512282

$1.49

10

NUT-LOCK(10)

7542122

$1.49

10

NUT-LOCK(10)

7542122

$1.49

10

NUT-LOCK(10)

7542122

$1.49

11

WASHER(10)

7558301

$1.49

11

WASHER(10)

7558301

$1.49

11

WASHER(10)

7558301

$1.49

12

BRACKET,MUD FLAP Substituted by 5211020-067

5211020

Unavailable

12

BRACKET,MUD FLAP Substituted by 5211020-067

5211020

Unavailable

13

BOLT(10)

7512232

$1.49

13

BOLT(10)

7512232

$1.49

14

LABEL, 'U.S.A.' [No Longer Available]

7073025

Unavailable

15

RIVET(50)

7621462

$1.49

16

WASHER,13/64X1/2X18GA,FL-Y

7558212

$1.49

17

BOX,TOOL COMP.

5430882

Unavailable

18

DECAL,FRONT SUSP. [No Longer Available]

7072423

Unavailable

19

TAPE, FOIL

5810349

Unavailable

20

SEAT ASM.(4WHL.) Substituted by 2681362 36

2681288

Unavailable

21

STRAP, BLK

7080272

Unavailable

22

TAPE, FOIL

5810310

Unavailable

23

LATCH,SEAT

1011558

Unavailable

24

BRACKET,LEVER RETAINER

5211033

$29.25

25

FLAP,MUD,LH REAR

5850062

Unavailable

25

FLAP,MUD,RH REAR

5850066

Unavailable

26

DECAL,"T.B.4X4" [No Longer Available]

7072413

Unavailable

27

FLAP,MUD,LH REAR

5850060

Unavailable

27

FLAP,MUD,RH REAR

5850061

Unavailable

28

CAB, REAR Substituted by 5430991-119

5430896

Unavailable

29

LID, TOOL BOX

5430899

Unavailable

30

STRAP,TOOL COMPARTMENT

5410425

Unavailable

31

CLIP, LID HINGE(10)

7670050

Unavailable

32

BOLT(10) Substituted by 7512240

7512111

Unavailable

33

LOCK WASHER(10)

7552801

$1.59

34

SPRING, LATCH

7041158

Unavailable

35

GROMMET

5410413

Unavailable

36

DECAL,RACK,REAR Substituted by 7072604

7072382

Unavailable

37

DECAL,'POLARIS',SILVER [No Longer Available]

7072383

Unavailable

38

COVER, SEAT,(4WHL.) Substituted by 2681241

2681289

Unavailable

39

FOAM BUN, SEAT [No Longer Available]

5430803

Unavailable

40

DECAL,FILTER ELEMENT [No Longer Available]

7072403

Unavailable

41

BASE, SEAT Substituted by 2681288

5430773

Unavailable

42

BLIND RIVET(50)

7621403

$1.49

42

BLIND RIVET(50)

7621403

$1.49
