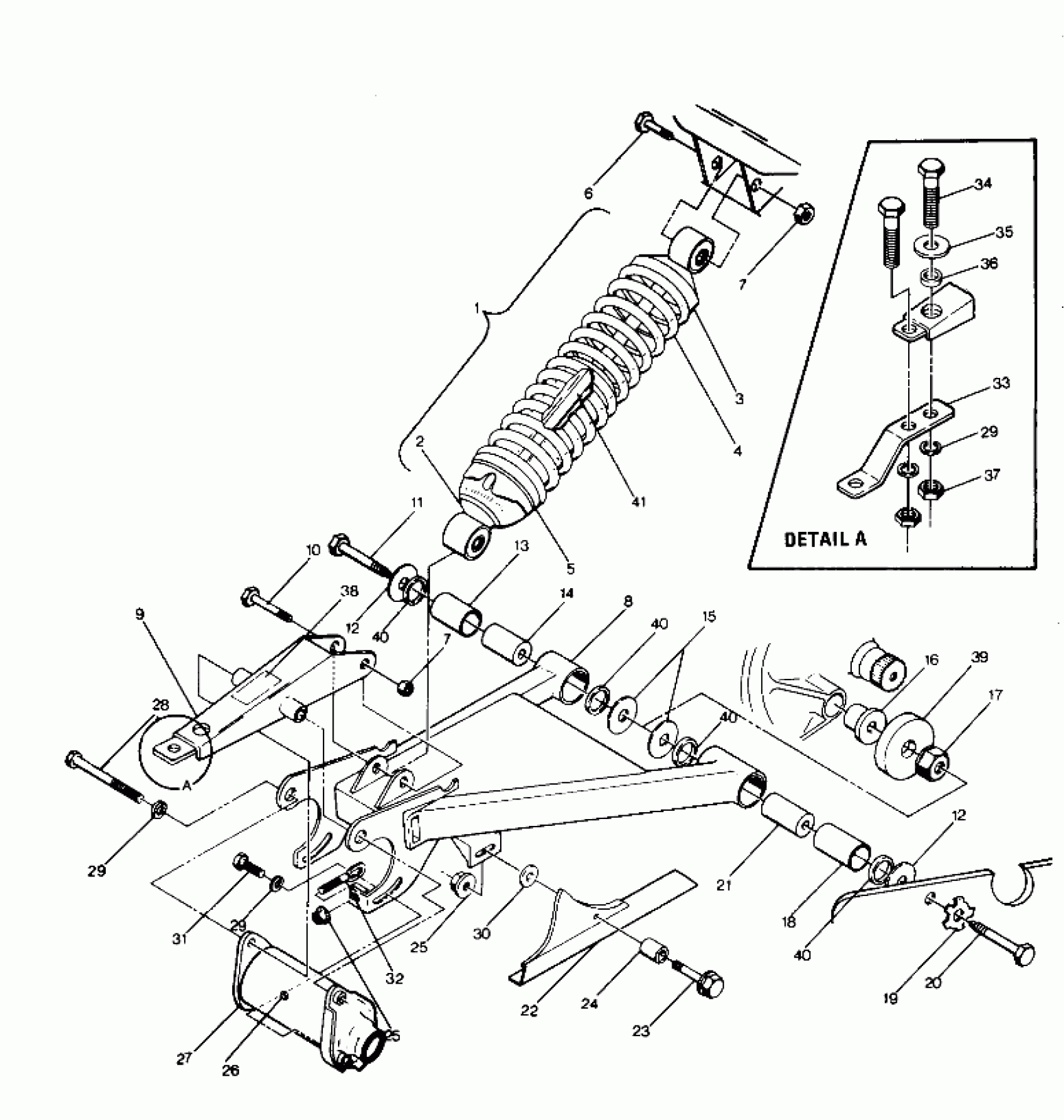

Polaris TRAIL BOSS 4X4 - W878027 Swing Arm Weldment & Rear Shock Assembly (4913511351021A) Diagram

#

Description
Price

-

Desc not available [No Longer Available]

2870675

Unavailable

1

SHOCK ASM,REAR [Item NotAvailable] (Incl. 2-5)

1580004

Unavailable

2

SHOCK,REAR SUSP.

7041156

Unavailable

3

RETAINER, UPPER

5220631

Unavailable

4

SPRING,COIL(SHOCK)

7041159

Unavailable

5

CAM,ADJUSTING SPRING Substituted by 5630334

5610092

Unavailable

6

BOLT(10)

7515415

$1.49

7

NUT-LOCK(10)

7542439

$1.49

7

NUT-LOCK(10)

7542439

$1.49

8

ARM, SWING Substituted by 1580017-067

1580017

Unavailable

9

HITCH WELD. Substituted by 1040144-067

1040144

Unavailable

10

BOLT(10)

7515417

$4.79

11

BOLT, SPECIAL

7512664

Unavailable

12

BUSHING, MACH.(10)

7555752

Unavailable

12

BUSHING, MACH.(10)

7555752

Unavailable

13

BEARING

3576507

Unavailable

14

BUSHING,LH SWING ARM

5010232

$45.99

15

WASHER(10)

7555749

$1.49

16

BUSHING,SWING ARM MT.

5630267

Unavailable

17

NUT, LOCK(10)

7542717

Unavailable

18

BEARING

3576508

Unavailable

19

PLATE,BOLT LOCK

5220611

Unavailable

20

BOLT, SPECIAL

7512665

Unavailable

21

BUSHING,RH SWING ARM

5010233

Unavailable

22

GUARD, CHAIN Substituted by 5430776

5430862

$34.74

23

SCREW-FLANGED(10)

7515304

$5.59

24

Bushing

5332828

$9.59

25

NUT LOCK(10)

7542321

$1.49

25

NUT LOCK(10)

7542321

$1.49

26

FITTING,LUBE.W/BALL CK.(10)

7080306

$3.19

27

HOUSING,AXLE,WELD. Substituted by 1011657-067

1011657

Unavailable

28

BOLT(10) Substituted by 7512670

7512661

Unavailable

29

LOCK WASHER(10)

7553201

$3.99

29

LOCK WASHER(10)

7553201

$3.99

29

LOCK WASHER(10)

7553201

$3.99

30

WASHER,WROUGHT(10)

7558302

$1.59

31

BOLT Substituted by 7512669

7512662

Unavailable

32

Desc not available [No Longer Available] 47

2870657

Unavailable

32

BOLT, ADJUSTER

7080293

Unavailable

33

PLATE,HITCH KIT [No Longer Available]

5220650

Unavailable

35

WASHER(10)

7555721

$1.49

36

SPACER,HITCH KIT

5332840

Unavailable

37

NUT-JAM(10)

7542711

$2.39

38

DECAL, HITCH [No Longer Available]

7072243

Unavailable

39

GUIDE,ROLLER&CHAIN

5430853

$9.91

40

SEAL,OIL

3610016

$28.32

40

SEAL,OIL

3610016

$28.32

40

SEAL,OIL

3610016

$28.32

40

SEAL,OIL

3610016

$28.32

41

SLEEVE

5430857

Unavailable
