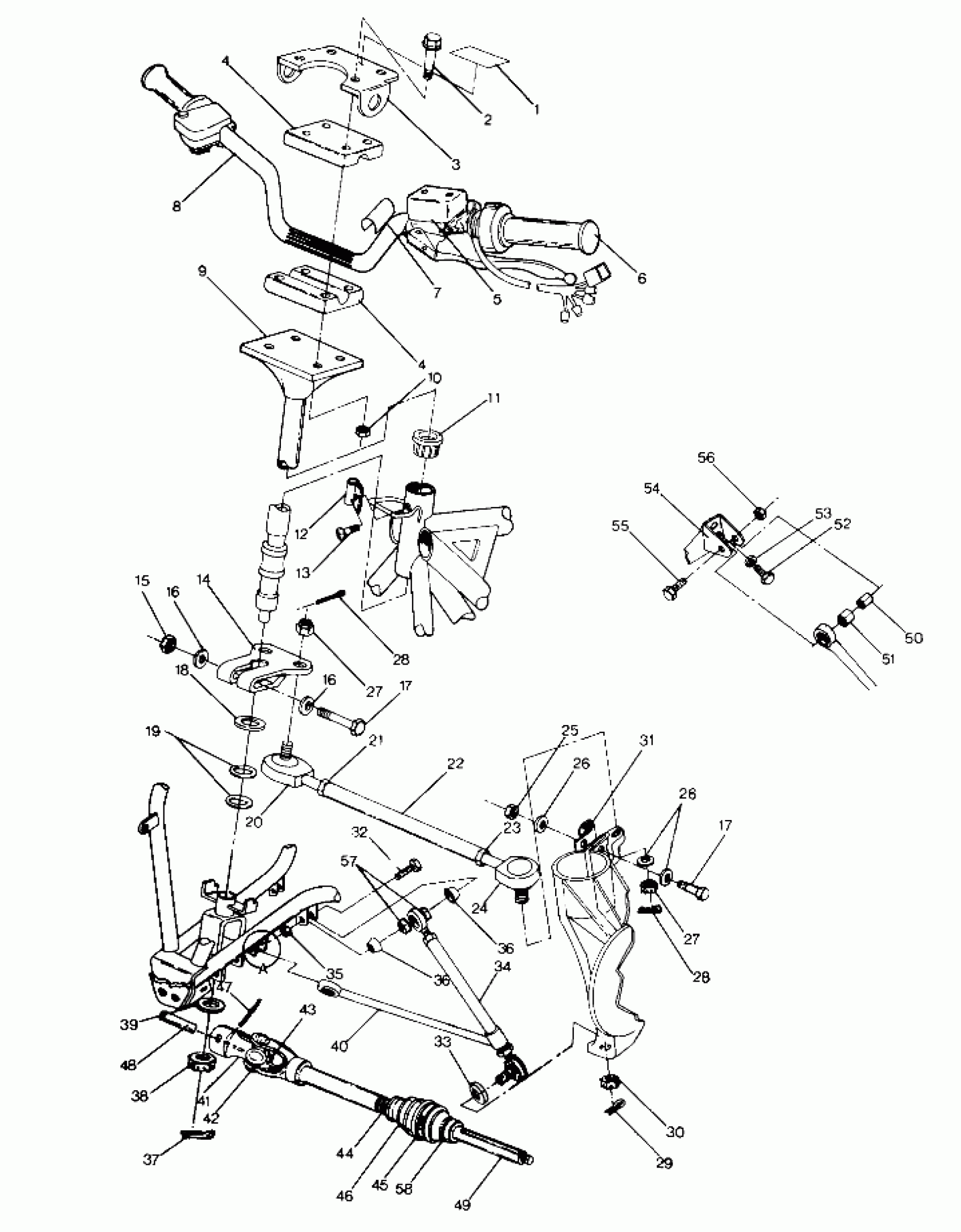

Polaris TRAIL BOSS 4X4 - W878027 Steering Assembly (4913511351011A) Diagram

#

Description
Price

1

DECAL,OIL/PARK [No Longer Available]

7072376

Unavailable

2

BOLT(10)

7512272

Unavailable

3

BRACKET,H/L MT.

5220484

Unavailable

4

BLOCK,HANDLEBAR Substituted by 5630187-067

5630187

$3.65

4

BLOCK,HANDLEBAR Substituted by 5630187-067

5630187

$3.65

5

CYLINDER, MASTER Substituted by 2050062

1930622

$235.51

6

GRIP, HANDLE BAR Substituted by 5431030

5410416

$24.27

7

DECAL,O'RIDE SWITCH Substituted by 7076274

7072390

Unavailable

8

TUBE,HDLBAR.(4WHL) Substituted by 5224316-067

5224316

Unavailable

9

POST, STEERING Substituted by 1843020-067

1843020

Unavailable

10

NUT-LOCK(10)

7542122

$1.49

11

BUSHING,STEERING

5430856

Unavailable

12

CLAMP, LOOP

7080325

Unavailable

13

SCREW

7510503

Unavailable

14

FROG,STEERING

5220546

Unavailable

15

NUT LOCK(10)

7542411

$3.19

16

WASHER(10) Substituted by 7555806

7555720

$0.79

16

WASHER(10) Substituted by 7555806

7555720

$0.79

17

BOLT(10) Substituted by 7515492

7512410

Unavailable

17

BOLT(10) Substituted by 7515492

7512410

Unavailable

18

WASHER(10)

7555726

$1.59

19

O-RING

5410483

Unavailable

20

ROD END, LH

7060139

Unavailable

21

NUT, LH, 10 MM.(10)

7546902

Unavailable

22

ROD, TIE

5332888

Unavailable

23

NUT, RH, 10 MM.(10)

7546901

$2.39

24

ROD END, RH [No Longer Available]

7060140

Unavailable

25

NUT LOCK(10)

7542403

$3.99

26

WASHER(10) Substituted by 7555806

7555803

Unavailable

26

WASHER(10) Substituted by 7555806

7555803

Unavailable

27

NUT, CASTLE(10)

7546904

$4.79

27

NUT, CASTLE(10)

7546904

$4.79

28

PIN COTTER(10)

7661203

$1.49

28

PIN COTTER(10)

7661203

$1.49

29

KEY, COTTER

7661402

$1.86

30

NUT,HEX,SLOTTED(10) [No Longer Available]

7542720

Unavailable

31

CLAMP(10) Substituted by 7080573

7080347

Unavailable

32

BOLT(10) [No Longer Available]

7512668

Unavailable

33

WASHER,HARD

7555768

Unavailable

34

STRUT ASM,TRLG. [No Longer Available]

1843013

Unavailable

35

NUT FLEX,(10)

7542703

Unavailable

36

BOOT

5410477

Unavailable

36

BOOT

5410477

Unavailable

37

PIN, COTTER

7661207

Unavailable

38

NUT, LOCK(10)

7542717

Unavailable

39

WASHER(10)

7555721

$1.49

40

STRUT,LH SUPPORT Substituted by 1580023-067

1580023

Unavailable

40

STRUT, RH SUPPORT Substituted by 1580024-067

1580024

Unavailable

41

Yoke

3260101

Unavailable

42

KIT,CROSS&BEARING

3260104

$43.99

43

DESC NOT_AVAILABLE

3260102

Unavailable

44

CLAMP, SMALL Substituted by 7080346

3260105

$7.99

45

CLAMP, LARGE

3260107

Unavailable

46

BOOT Substituted by 3260108

3260106

Unavailable

47

WIRE, SAFETY

7080345

Unavailable

48

PIN-SPRING,5/16 X 1 5/8-Y

7661913

$3.99

49

U-JOINT ASM.W/SLEAVE Substituted by 2200307

1380009

Unavailable

50

SHAFT,PIVOT,TIGHTENER [No Longer Available]

5020483

Unavailable

51

PIVOT-TRAILING ARM

5410382

Unavailable

52

BOLT(10)

7515483

Unavailable

53

WASHER SPRINGLOCK(10) Substituted by 7552603

7553001

Unavailable

54

BRKT,SPARE LINK

5220855

Unavailable

55

BOLT(10)

7515334

Unavailable

56

NUT-5/16-18 NYLOK-Y

7542324

$1.49

57

SPACER

5332889

Unavailable

58

COLLAR

5220883

Unavailable
