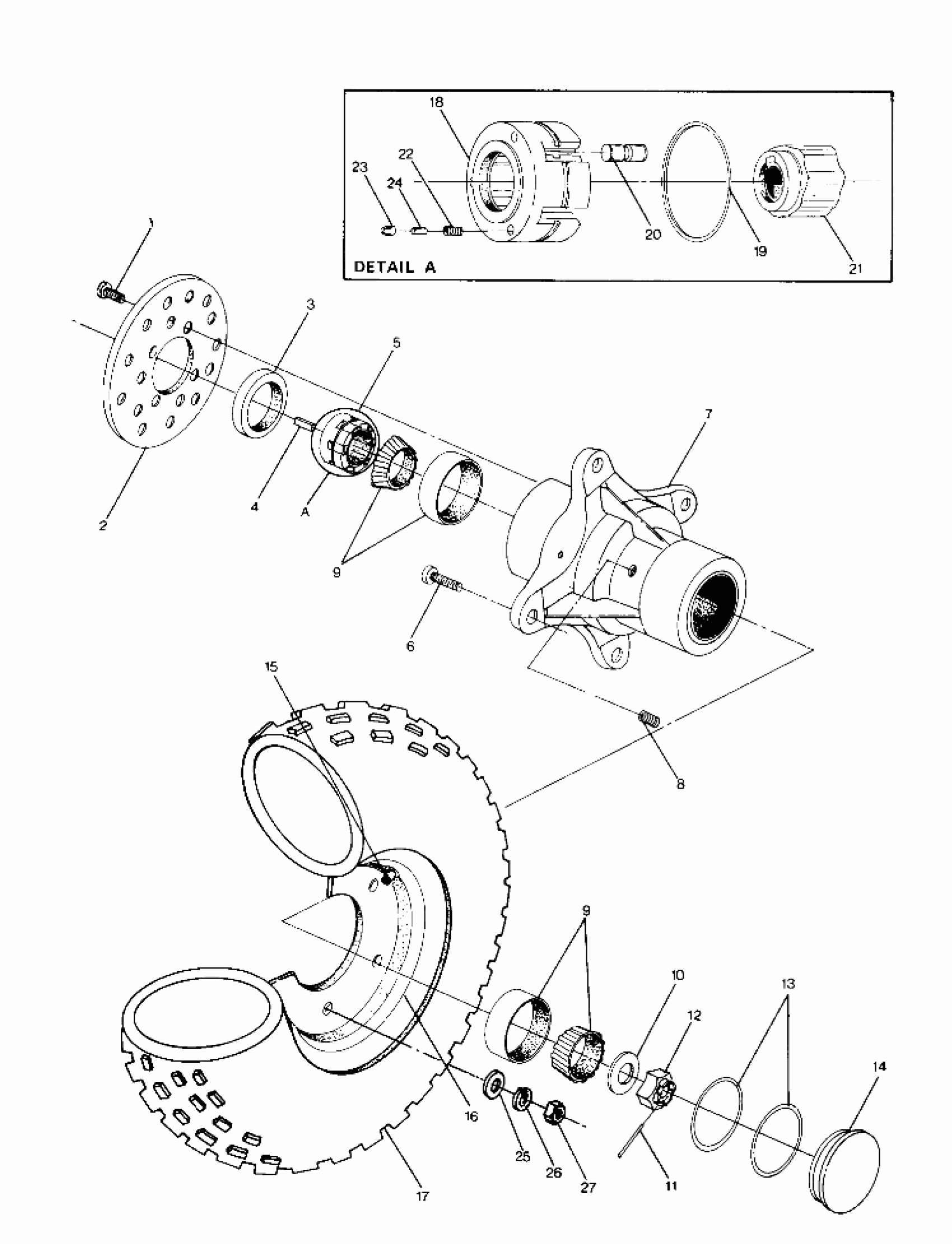

Polaris TRAIL BOSS 4X4 - W878027 Front Wheel Assembly (4913511351017A) Diagram
#
Description
Price
1
SCREW(10)
7515314
Unavailable
4
KEY
7721205
Unavailable
5
CLUTCH,HILLIARD,RH [No Longer Available]
1520122
Unavailable
5
CLUTCH,HILLIARD,LH [No Longer Available]
1520126
Unavailable
6
STUD,WHEEL,5/16-18(10)
7515330
Unavailable
7
HUB,FRONT WHEEL [No Longer Available]
5130635
Unavailable
8
PLUG, PIPE
7051514
Unavailable
9
BEARING
3554505
Unavailable
9
BEARING
3554505
Unavailable
10
WASHER,WROUGHT,1/2"
7555771
Unavailable
11
LOCK,WIRE SAFETY
7080350
Unavailable
12
NUT,HEX,SLOTTED(10) Substituted by 7543201
7542719
Unavailable
16
RIM,FRONT,PRIMED Substituted by 1520118
1520127
Unavailable
17
TIRE,FR(22X8-10)
5410480
Unavailable
18
CAGE, ROLL
3250012
Unavailable
19
SPRING, GARTER Substituted by 3250021
3250011
Unavailable
21
CAM, LH,(PROTO) [No Longer Available]
3250018
Unavailable
21
CAM, RH,(PROTO) [No Longer Available]
3250019
Unavailable
22
SPRING,COMPRESSION
3250015
Unavailable
23
PLUNGER
3250014
Unavailable
24
SUPPORT, SPRING
3250013
Unavailable
