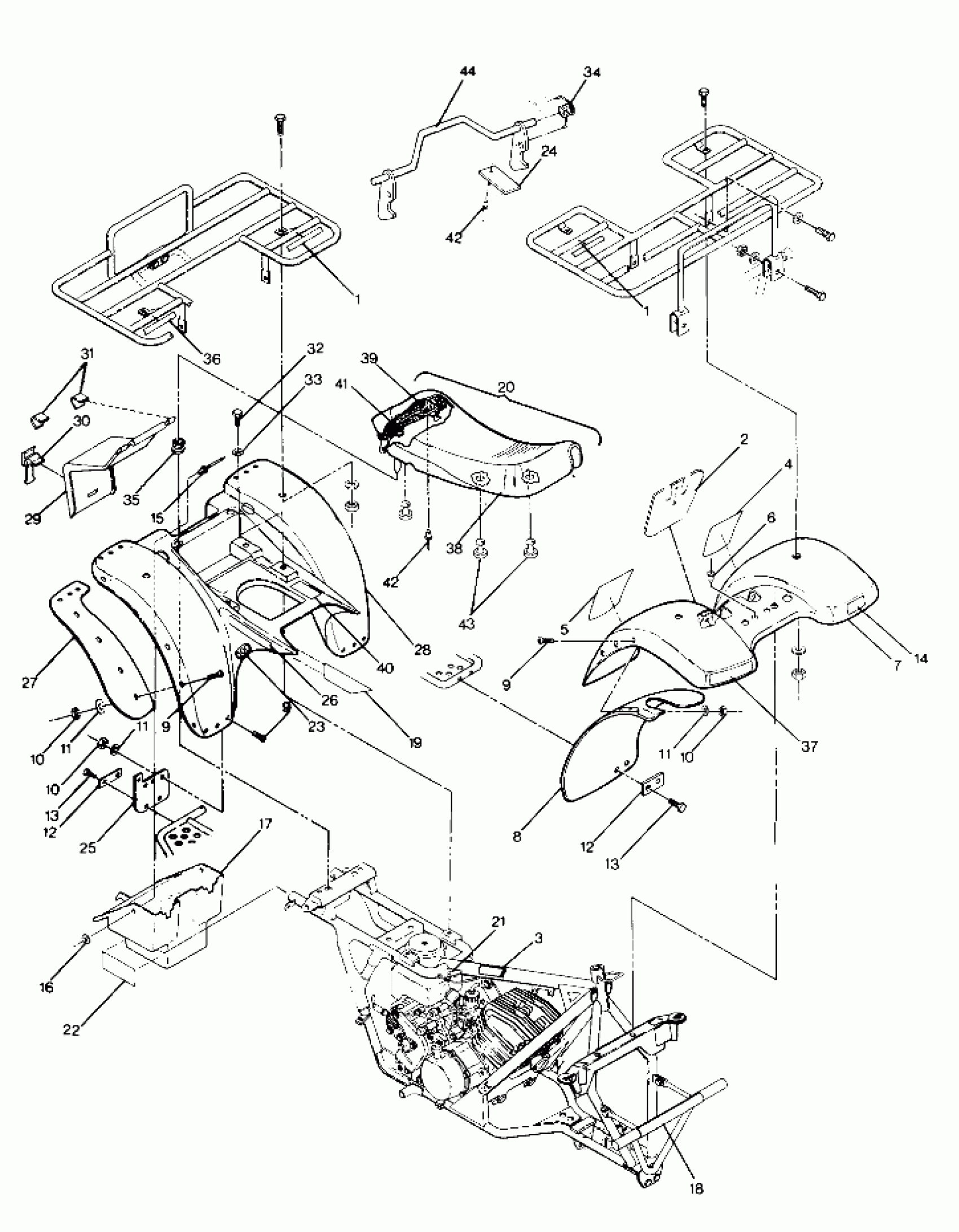

Polaris TRAIL BOSS 4X4 - W878027 Body Assembly (4913511351001A) Diagram

#

Description
Price

1

DECAL,WRN.HVY.LD. Substituted by 7072605

7072381

Unavailable

1

DECAL,WRN.HVY.LD. Substituted by 7072605

7072381

Unavailable

2

FLAP,SPLASHGUARD

5850070

Unavailable

3

DECAL,MANUFACTURING [No Longer Available]

7072432

Unavailable

4

DECAL,WRN.,FR. Substituted by 7072435 (French)

7072384

Unavailable

5

DECAL,WRN.,ENG. Substituted by 7072436 (English)

7072385

Unavailable

6

RIVET(50)

7621457

$1.19

7

CAB, FRONT Substituted by 5431248-119

5430897

Unavailable

8

MUDFLAP,FRONT,LH

5850071

Unavailable

8

MUDFLAP,FRONT,RH

5850072

Unavailable

9

BOLT, BLACK(10)

7512282

Unavailable

9

BOLT, BLACK(10)

7512282

Unavailable

10

NUT-LOCK(10)

7542122

$1.19

10

NUT-LOCK(10)

7542122

$1.19

10

NUT-LOCK(10)

7542122

$1.19

11

WASHER(10)

7558301

$1.19

11

WASHER(10)

7558301

$1.19

11

WASHER(10)

7558301

$1.19

12

BRACKET,MUD FLAP Substituted by 5211020-067

5211020

Unavailable

12

BRACKET,MUD FLAP Substituted by 5211020-067

5211020

Unavailable

13

BOLT(10)

7512232

$1.19

13

BOLT(10)

7512232

$1.19

14

LABEL, 'U.S.A.'

7073024

Unavailable

15

RIVET(50)

7621462

$1.19

16

WASHER,13/64X1/2X18GA,FL-Y

7558212

$0.79

17

BOX,TOOL COMP.

5430882

Unavailable

18

DECAL,FRONT SUSP. [No Longer Available]

7072423

Unavailable

19

TAPE, FOIL

5810349

Unavailable

20

SEAT ASM.(4WHL.) Substituted by 2681362 (Incl. 24, 34, 38,39, 41 -44)

2681288

Unavailable

21

STRAP, BLK

7080272

Unavailable

22

TAPE, FOIL

5810310

Unavailable

23

DECAL, SHIFT

7072408

Unavailable

24

BRACKET,LEVER RETAINER

5211033

$34.99

25

FLAP,MUD,LH REAR

5850062

Unavailable

25

FLAP,MUD,RH REAR

5850066

Unavailable

26

DECAL,"T.B.4X4" [No Longer Available]

7072413

Unavailable

27

FLAP,MUD,LH REAR

5850060

Unavailable

27

FLAP,MUD,RH REAR

5850061

Unavailable

28

CAB, REAR Substituted by 5430991-119

5430896

Unavailable

29

LID, TOOL BOX

5430899

Unavailable

30

STRAP,TOOL COMPARTMENT

5410425

Unavailable

31

CLIP, LID HINGE(10)

7670050

Unavailable

32

BOLT(10) Substituted by 7512240

7512111

$3.97

33

LOCK WASHER(10)

7552801

$1.59

34

SPRING, LATCH

7041158

Unavailable

35

GROMMET

5410413

Unavailable

36

DECAL,RACK,REAR Substituted by 7072604

7072382

Unavailable

37

DECAL,'POLARIS',SILVER [No Longer Available]

7072383

Unavailable

38

COVER, SEAT,(4WHL.) Substituted by 2681241

2681289

Unavailable

39

FOAM BUN, SEAT [No Longer Available]

5430803

Unavailable

40

DECAL,FILTER ELEMENT [No Longer Available]

7072403

Unavailable

41

BASE, SEAT Substituted by 2681288

5430773

Unavailable

42

BLIND RIVET(50)

7621403

$1.19

42

BLIND RIVET(50)

7621403

$1.19

43

Bumper, Rubber

5410414

$3.17

44

LATCH,SEAT

1011558

Unavailable
