- TRAIL BOSS 350L 4X4 - W928139
WIRING HARNESS 350 4X4 / W928139 (4922832283031A)

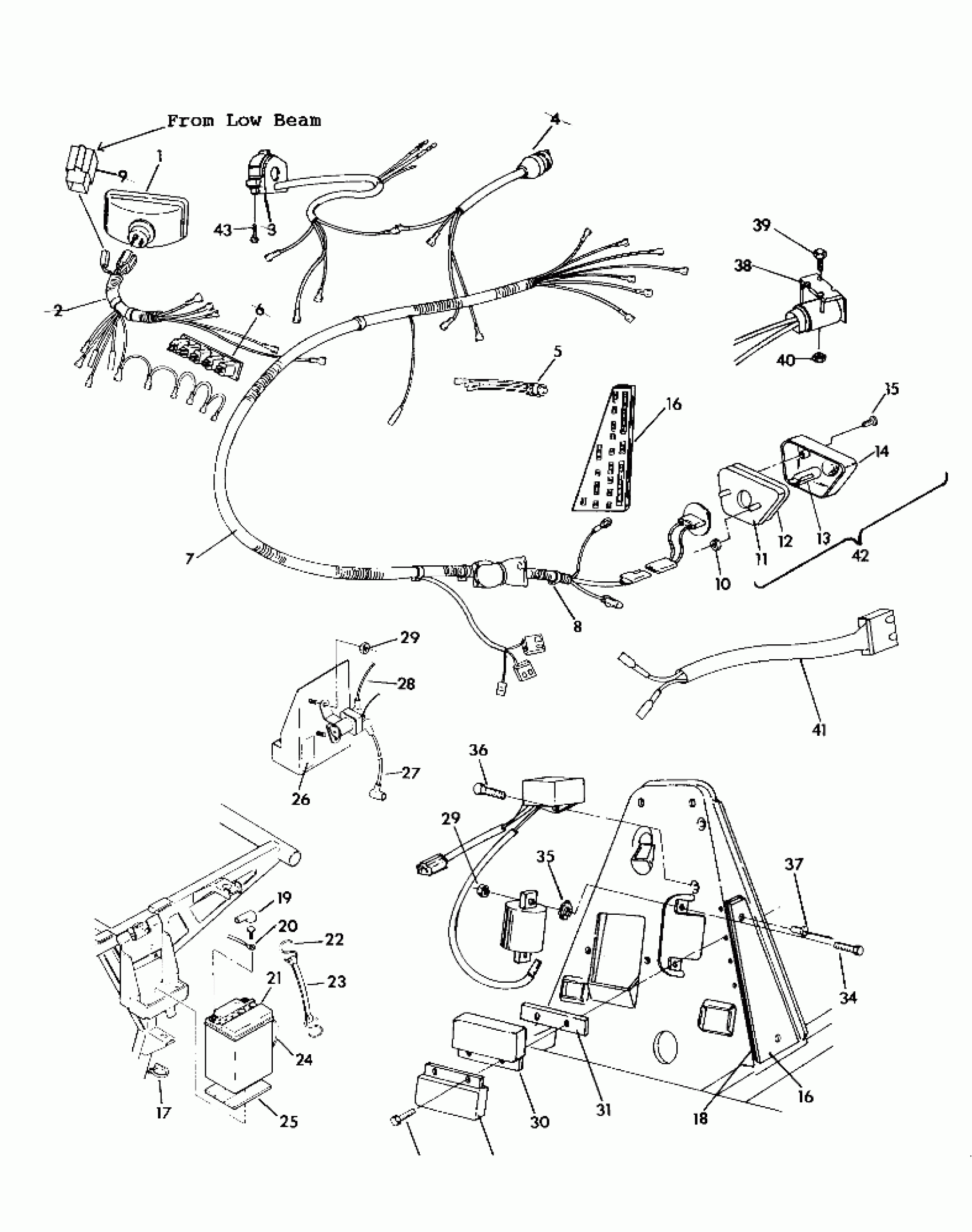

Polaris TRAIL BOSS 350L 4X4 - W928139 WIRING HARNESS 350 4X4 / W928139 (4922832283031A) Diagram
#
2
HARNESS, HEADLIGHT
2460352
Unavailable
3
SWITCH,HI/LO/ST. Substituted by 4110157
4110095
Unavailable
4
SWITCH,IGN.(MODIFIED) Substituted by 4110140
4110086
$137.60
5
SW,O'RIDE,REV.LIMIT.
4110083
$35.99
6
STRIP, SOCKET
4032037
$27.19
7
HARNESS,MAIN WIRE(350-4X4) Substituted by 2460402
2460351
Unavailable
8
STRAP, BLK
7080272
Unavailable
9
HSG,DUAL,FEMALE
4040024
$3.99
10
SPEED NUT-WASHER, HEAD-1/4
7670054
$1.49
11
BACKING,TAILLIGHT
4032064
$83.99
12
GASKET,TAILLIGHT
4032045
$4.03
13
BULB,TAILLIGHT
4030043
$6.46
14
LENS,TAILLIGHT
4032046
$32.37
15
Screw, Taillight
4032029
$4.79
16
BOARD,TERMINAL
4040022
Unavailable
16
BOARD,TERMINAL
4040022
Unavailable
17
CLAMP, POLY
7080303
Unavailable
18
SHIELD,TERM.BOARD
5431152
Unavailable
19
INSULATOR-CABLE
5410346
$6.39
20
CABLE,GROUND/ENG.
4010067
Unavailable
21
Battery
4140006
$99.99
22
HOOK-BATT.H/D(10)
7010032
$1.59
23
STRAP,BATTERY HOLDDOWN
5410424
Unavailable
24
LINE,VENT,(38.0'') Substituted by 8360009-600
5521087
Unavailable
25
PAD-BATTERY
5810290
$7.27
26
DECAL, BATTERY [No Longer Available]
7072606
Unavailable
27
CABLE,SOLENOID/STARTER
4010064
Unavailable
28
CABLE,SOLENOID-STRTR. (Red)
4010075
Unavailable
29
NUT(10)
7541925
$1.49
29
NUT(10)
7541925
$1.49
30
RECTIFIER, VOLTAGE
4060087
Unavailable
31
HEAT SINK
5210650
Unavailable
32
SCR-#10-24X3/4,PN/TR RD-TORX-Y
7512018
$3.19
33
LIMITER,REV.SPEED
4060085
Unavailable
34
SCREW(10)
7512007
$3.99
35
WASHER(10)
7571602
$4.79
36
BOLT(10)
7512232
$1.49
37
RIVET, POP(50)
7621322
$0.56
38
OUTLET,12V(WATERPROOF)
2410002
$70.39
39
SCREW(10)
7511851
Unavailable
40
NUT(10)
7541915
Unavailable
41
HARNESS,(BRAKELIGHT KIT)
2460310
Unavailable
42
TAIL LIGHT ASM.
2432034
$55.99
43
TAIL LIGHT ASM.
2432034
$55.99
43
SCREW
2010055
Unavailable
43
SWITCH,FWD.(4WD) (4WD)
4110090
Unavailable
