- TRAIL BOSS 350L 4X4 - W928139
SWING ARM WLD. / REAR SHOCK ASSEMBLY 350 4X4 / W928139 (4922832283021A)

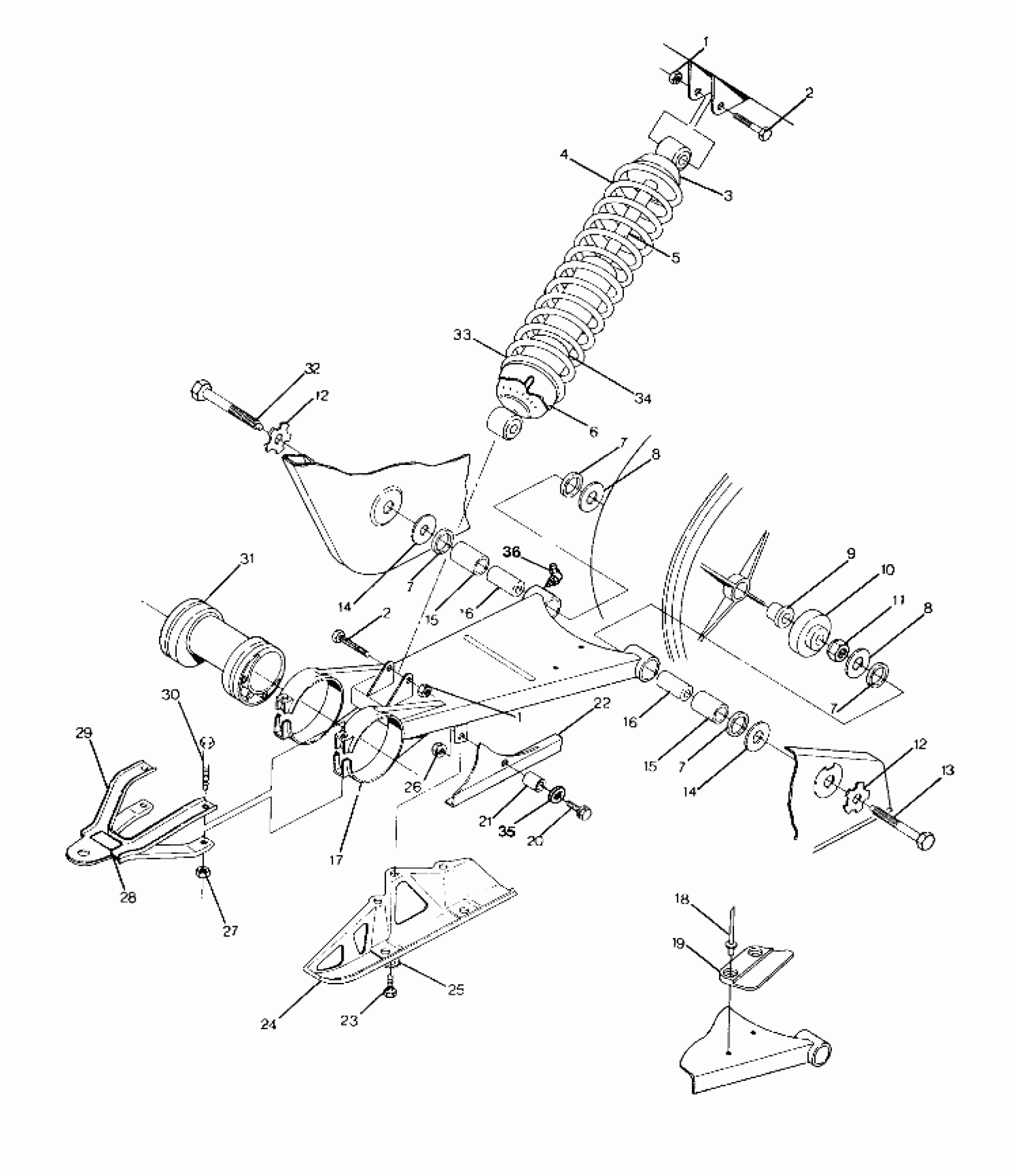

Polaris TRAIL BOSS 350L 4X4 - W928139 SWING ARM WLD. / REAR SHOCK ASSEMBLY 350 4X4 / W928139 (4922832283021A) Diagram
#
1
NUT-LOCK(10)
7542439
$1.49
1
NUT-LOCK(10)
7542439
$1.49
2
BOLT(10)
7515415
$1.49
2
BOLT(10)
7515415
$1.49
3
RETAINER, SHOCK
5222118
Unavailable
4
SPRING,COMP,REAR
7041204-067
$64.99
5
SHOCK, REAR Substituted by 7041448
7041218
$146.71
6
CAM,ADJUSTING SPRING
5630334
$32.37
7
SEAL,OIL
3610016
$28.32
7
SEAL,OIL
3610016
$28.32
7
SEAL,OIL
3610016
$28.32
7
SEAL,OIL
3610016
$28.32
8
WASHER(10)
7555779
Unavailable
8
WASHER(10)
7555779
Unavailable
9
SUPPORT
3231517
Unavailable
10
ROLLER,CHAIN GUIDE
5431003
Unavailable
11
NUT,CROWN LOCK(10)
7542601
Unavailable
12
PLATE,BOLT LOCK
5220958
$35.99
12
PLATE,BOLT LOCK
5220958
$35.99
13
BOLT, SHOULDER
7512702
Unavailable
14
BUSHING, MACH.(10)
7555752
Unavailable
14
BUSHING, MACH.(10)
7555752
Unavailable
15
BEARING
3576507
Unavailable
15
BEARING
3576507
Unavailable
16
BUSHING,SWING ARM
5010255
Unavailable
16
BUSHING,SWING ARM
5010255
Unavailable
17
ARM, SWING
1580048-067
Unavailable
18
RIVET(50)
7621433
$1.49
19
GUIDE, CHAIN
5431017
$1.83
20
SCREW-FLANGED(10)
7515304
$5.59
21
Bushing
5332828
$9.59
22
GUARD,CHAIN(MODIFIED) Substituted by 5430776
5430952
$34.74
23
SCREW(10)
7512252
Unavailable
24
GUARD, SWING ARM
1040166-067
Unavailable
25
WASHER-1/4X1/2X.025 EXT TTH-Y
7552604
$1.59
26
NUT LOCK(10)
7542321
$1.49
27
NUT,FLANGE(10)
7542522
$5.59
28
DECAL, HITCH Substituted by 7078261
7072533
Unavailable
29
HITCH WELD. Substituted by 2200472
1040162-067
Unavailable
30
BOLT(10)
7512569
Unavailable
31
HOUSING, AXLE
5130663
Unavailable
32
BOLT, SHOULDER
7512701
$23.99
33
ADAPTER,SPRING,SEAT
5630351
Unavailable
34
SLEEVE,SPRING PROTECTOR
5431032
$31.99
35
WASHER-.344X.688X.063 FL-Y
7558402
$1.49
36
FITTING, LUBE.
7080438
$10.39
