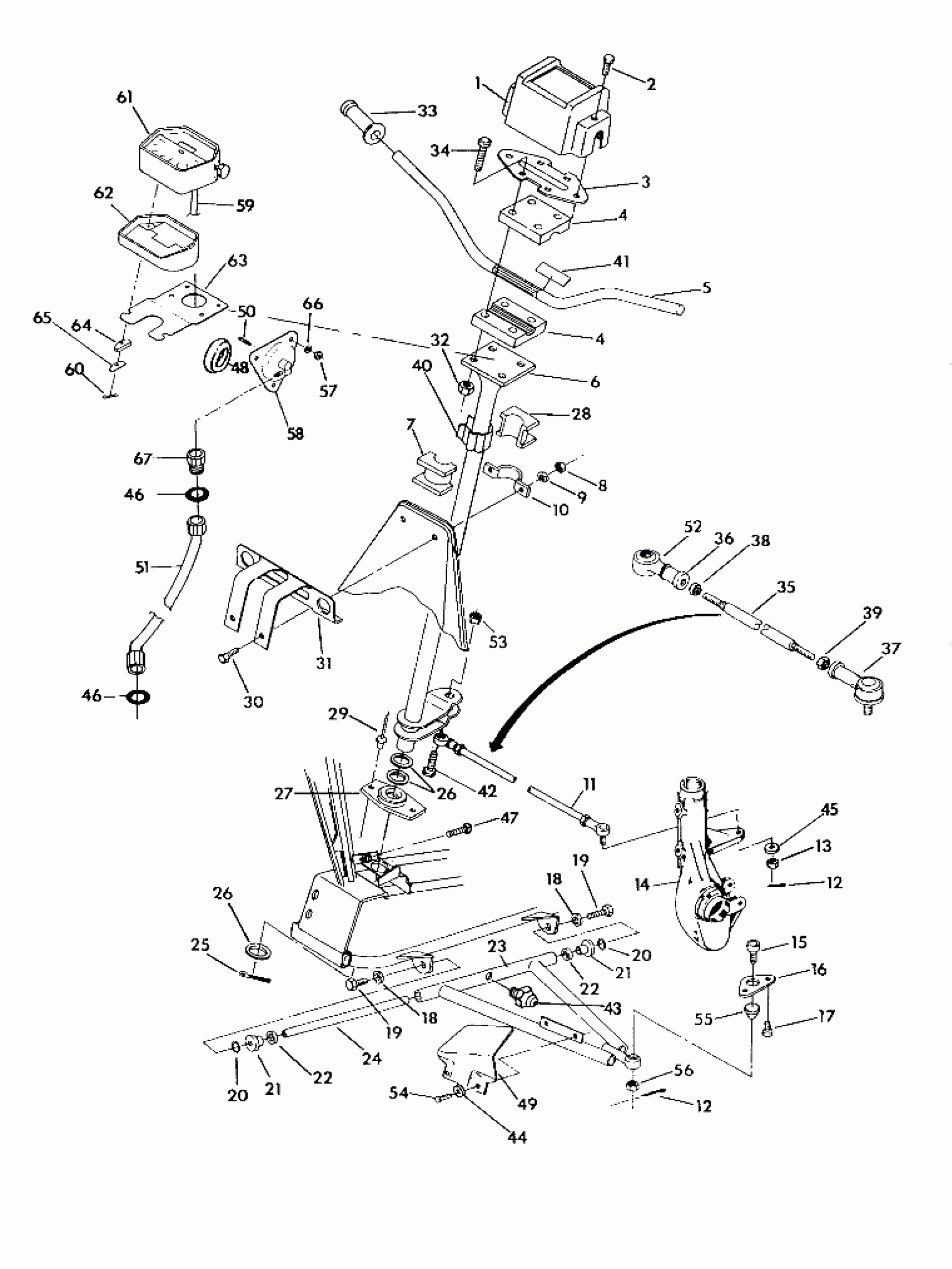

Polaris TRAIL BOSS 350L 4X4 - W928139 STEERING ASSEMBLY 350 4X4 / W928139 (4922832283013A) Diagram

#

Description
Price

1

PAD, HANDLEBAR

5810379

$40.46

2

BOLT(10) Substituted by 7515197

7512286

Unavailable

3

MOUNT,HDLBR. PAD Substituted by 5245051

5220946

$5.71

4

BLOCK,HANDLEBAR

5630187-067

$44.99

4

BLOCK,HANDLEBAR

5630187-067

$44.99

5

TUBE,HDLBR,BLACK Substituted by 5242988-067

5224316-067

Unavailable

6

POST, STEERING

1840106-067

Unavailable

7

BUSHING,STRG.,UPPER Substituted by 5431572

5430966

Unavailable

8

NUT-5/16-18 NYLOK-Y

7542324

$1.49

9

WASHER-.344X.688X.063 FL-Y

7558402

$1.49

10

BRKT,UP.STRG.BUSH,BLK. Substituted by 5222999-067

5220887-067

$32.37

11

TIE ROD ASM. Substituted by 1822310

1822081

Unavailable

12

PIN COTTER(10)

7661203

$1.49

12

PIN COTTER(10)

7661203

$1.49

13

NUT, CASTLE(10)

7546904

$4.79

14

HUB STRUT ASM,LH

1843033

Unavailable

14

HUB STRUT ASM,RH

1843034

Unavailable

15

BALL JOINT Substituted by 7080673

7080364

Unavailable

16

BRACKET-BALL JOINT

5211121

$31.99

17

SCR-1/4-20X5/8 FL HX SOC CP-Y

7512284

$1.49

18

WASHER(10)

7552603

$1.49

18

WASHER(10)

7552603

$1.49

19

BOLT(10) Substituted by 7512492

7515458

Unavailable

19

BOLT(10) Substituted by 7512492

7515458

Unavailable

20

O RING

5410458

Unavailable

20

O RING

5410458

Unavailable

21

BUSHING, A-ARM

3563604

Unavailable

21

BUSHING, A-ARM

3563604

Unavailable

22

WASHER(10)

7555774

Unavailable

22

WASHER(10)

7555774

Unavailable

23

A FRAME, LH Substituted by 2200481

1580033-067

Unavailable

23

A FRAME, RH Substituted by 2200482

1580034-067

$159.75

24

SHAFT,'A-ARM'

5020529

Unavailable

25

PIN, COTTER(10)

7661404

$4.79

26

BUSHING(10)

7555781

Unavailable

26

BUSHING(10)

7555781

Unavailable

27

BUSHING,STRG.,LOWER Substituted by 5431570

5430895

Unavailable

28

BUSHING,UPPER STRG. Substituted by 5431573

5431138

$8.48

29

RIVET, (MONOBOLT) Substituted by 7661637

7661620

Unavailable

30

SCREW(10)

7512307

$3.99

31

BRKT, IGN. PANEL

5220965-067

Unavailable

32

NUT-LOCK(10)

7542122

$1.49

33

GRIP, HANDLEBAR

5431030

$24.27

34

BOLT,(10)

7512265

$3.99

35

TIE ROD

5020528

Unavailable

36

ROD END, RH Substituted by 1822179

7060149

Unavailable

37

ROD END

7060147

$56.65

38

NUT HEX(10)

7542401

$2.39

39

NUT, LH, 10 MM.(10)

7546902

Unavailable

40

CLIP(10)

7080278

$2.63

41

DECAL,O'RIDE SW.(4X4) Substituted by 7076273

7072827

Unavailable

42

BOLT(10) Substituted by 7515554

7515507

Unavailable

43

ZERK,FITTING,THREADED(10)

7080433

$1.49

44

WASHER(10)

7555792

$4.79

45

WASHER(10)

7555806

$1.49

46

SEAL, SPEEDO.CABLE

3280132

Unavailable

46

SEAL, SPEEDO.CABLE

3280132

Unavailable

47

SCREW, SPEC.

5020601

Unavailable

48

SEAL, ANGLE DRIVE

3280131

$12.39

49

SHIELD,RH CV JOINT Substituted by 5431149-070

5431149

$24.27

49

SHIELD,LH CV JOINT Substituted by 5431150-070

5431150

Unavailable

50

KEY, SQUARE,SPEEDO. Substituted by 3280165

3280134

$18.10

51

CABLE, SPEEDOMETER Substituted by 3280184

3280130

Unavailable

52

BOOT, SEAL, ROD END

5410540

$7.19

53

NUT LOCK(10)

7542403

$3.99

54

SCREW(10)

7512017

$4.79

55

Boot, Rubber

5410548

Unavailable

56

NUT-3/8-24 HX CA GR5-Y

7542438

$1.59

58

ADAPTER,DRIVE,(1:1.2),ATV Substituted by 3280219

3280128

Unavailable

59

CABLE-TIE,DIA12-50MM,WTHR-RES.

7080138

$2.41

60

HAIRPIN, COTTER(10)

7660701

$1.99

61

SPEEDOMETER, ATV

3280129

Unavailable

61

SPEEDO.(KPH),SCAND.ATV

3280135

$131.99

62

MOUNT, SPEEDOMETER

5410546

Unavailable

63

BRACKET,SPEEDO

5222269-067

$15.67

64

SPACER,SPEEDO.MTG.

5810442

$10.99

65

PLATE,MTG,(SPEEDO)

5211189

$12.99

66

WASHER(10)

7555725

Unavailable

67

BUSHING,SPEEDO.DRIVE

3280133

Unavailable
