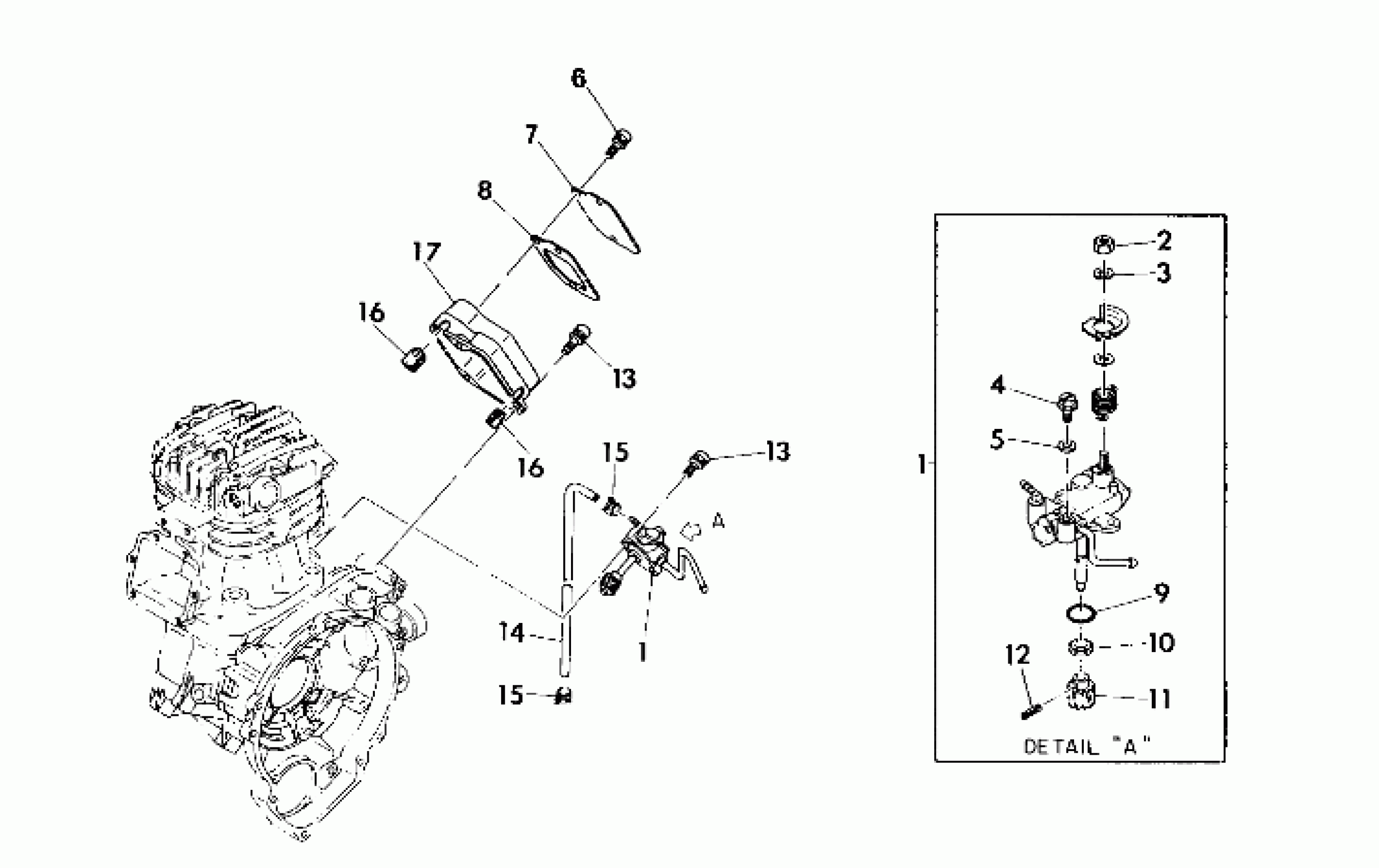

Polaris TRAIL BOSS 350L 4X4 - W928139 OIL PUMP ASSEMBLY 350 4X4 / W928139 (4922832283039A) Diagram

#

Description
Price

1

PUMP, OIL (Incl. 1-5, 9-12)

3084193

Unavailable

2

NUT(10)

3083120

$3.19

3

WASHER-SPRING(10)

3083121

$299.99

4

SCREW-AIR VENT

3083125

Unavailable

5

Washer

3084194

$6.23

6

SCREW & WASHER(10)

3084205

$3.99

7

COVER (Oil Pump Case)

3084204

Unavailable

8

GASKET,OIL PUMP (Oil Pump Case)

3084401

Unavailable

9

O RING

3083127

Unavailable

10

Spacer

3084195

Unavailable

11

Wheel

3084196

Unavailable

12

Pin, Spring

3084197

Unavailable

13

SCREW&WASHER,(10)

3083783

$2.39

13

SCREW&WASHER,(10)

3083783

$2.39

14

PIPE, RUBBER Substituted by 3086776

3084199

Unavailable

15

CLAMP-HOSE,(10)

3083141

$1.49

15

CLAMP-HOSE,(10)

3083141

$1.49

16

GROMMET Substituted by 3086777

3084201

Unavailable

16

GROMMET Substituted by 3086777

3084201

Unavailable

17

CASE, OIL PUMP (Oil Pump)

3084400

$83.99
