Description

Price

1

BULB, H/L

4030028

$29.99

2

HEADLIGHT ASM.

4032038

Unavailable

3

SCREW(10)

7512017

$4.79

4

COVER,(P.RED),H/L.

5431202-136

Unavailable

5

SCREW, ADJ.(10)

4032003

Unavailable

6

SCREW,ADJUST,(ATV)(10)

4032042

Unavailable

7

DOOR,ACCESS(P.RED)

5431201-136

Unavailable

8

FASTENER, 1/4 TURN(10)

7670064

$6.23

9

RING,SPLIT RETAINER(10)

7670065

$1.99

10

RECEPTACLE,CLIP-ON(10)

7670066

$3.83

11

KIT-CHOKE CONTROL

2200188

$24.27

11

CABLE, CHOKE

7080371

$97.13

12

SWITCH,IGN.(MODIFIED) Substituted by 4110140

4110086

$137.60

13

BRKT, IGN. PANEL

5220965-067

Unavailable

14

STRIP, SOCKET

4032037

$27.19

15

BULB

4030042

Unavailable

15

BULB

4030042

Unavailable

16

PANEL, IGNITION

5430995

Unavailable

17

LENS ASM,PILOT LIGHT

2652056

Unavailable

18

SPRING-ADJ

4032002

Unavailable

19

SPRING,ADJ.

4032041

Unavailable

20

SCREW, SEM(10)

7511862

$6.99

21

DECAL,WARN'DEM.4'SW. Substituted by 7074935

7072737

Unavailable

22

LABEL, 'U.S.A.'

7073024

Unavailable

23

DECAL,'350 LIQUID'

7073444

Unavailable

24

NUT, SPEED(10)

7670060

$3.99

25

RETAINER,H/L BULB

4032063

Unavailable

26

COVER,SOCKET,H/L. Note: Ignition key may be ordered by using the 4 digit number on the ignition switch.

4032066

Unavailable

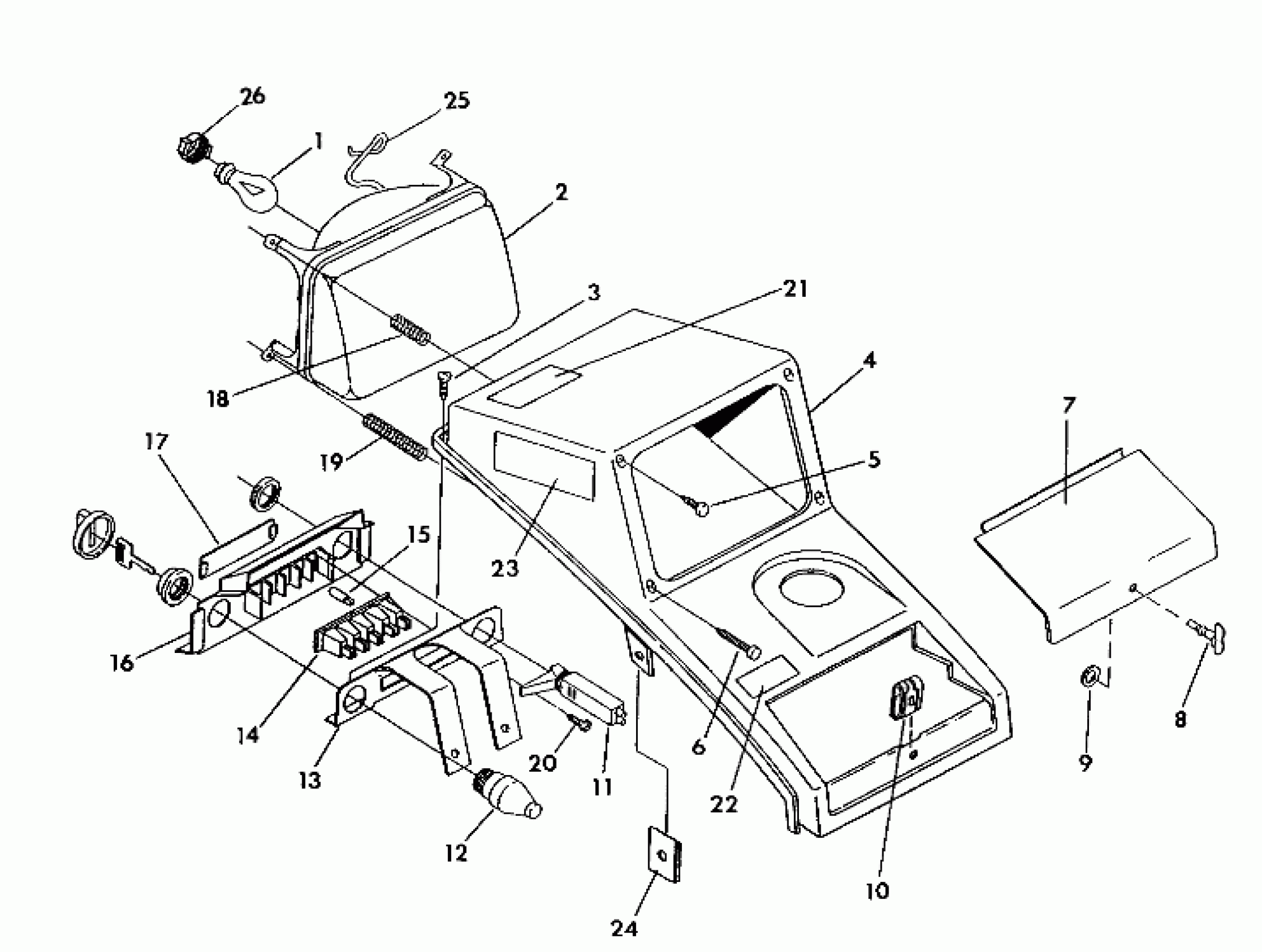

Polaris TRAIL BOSS 350L 4X4 - W928139 HEADLIGHT ASSEMBLY 350 4X4 / W928139 (4922832283008A) Diagram

BULB, H/L

HEADLIGHT ASM.

SCREW(10)

COVER,(P.RED),H/L.

SCREW, ADJ.(10)

SCREW,ADJUST,(ATV)(10)

DOOR,ACCESS(P.RED)

FASTENER, 1/4 TURN(10)

RING,SPLIT RETAINER(10)

RECEPTACLE,CLIP-ON(10)

KIT-CHOKE CONTROL

CABLE, CHOKE

SWITCH,IGN.(MODIFIED) Substituted by 4110140

BRKT, IGN. PANEL

STRIP, SOCKET

BULB

BULB

PANEL, IGNITION

LENS ASM,PILOT LIGHT

SPRING-ADJ

SPRING,ADJ.

SCREW, SEM(10)

DECAL,WARN'DEM.4'SW. Substituted by 7074935

LABEL, 'U.S.A.'

DECAL,'350 LIQUID'

NUT, SPEED(10)

RETAINER,H/L BULB

COVER,SOCKET,H/L. Note: Ignition key may be ordered by using the 4 digit number on the ignition switch.
