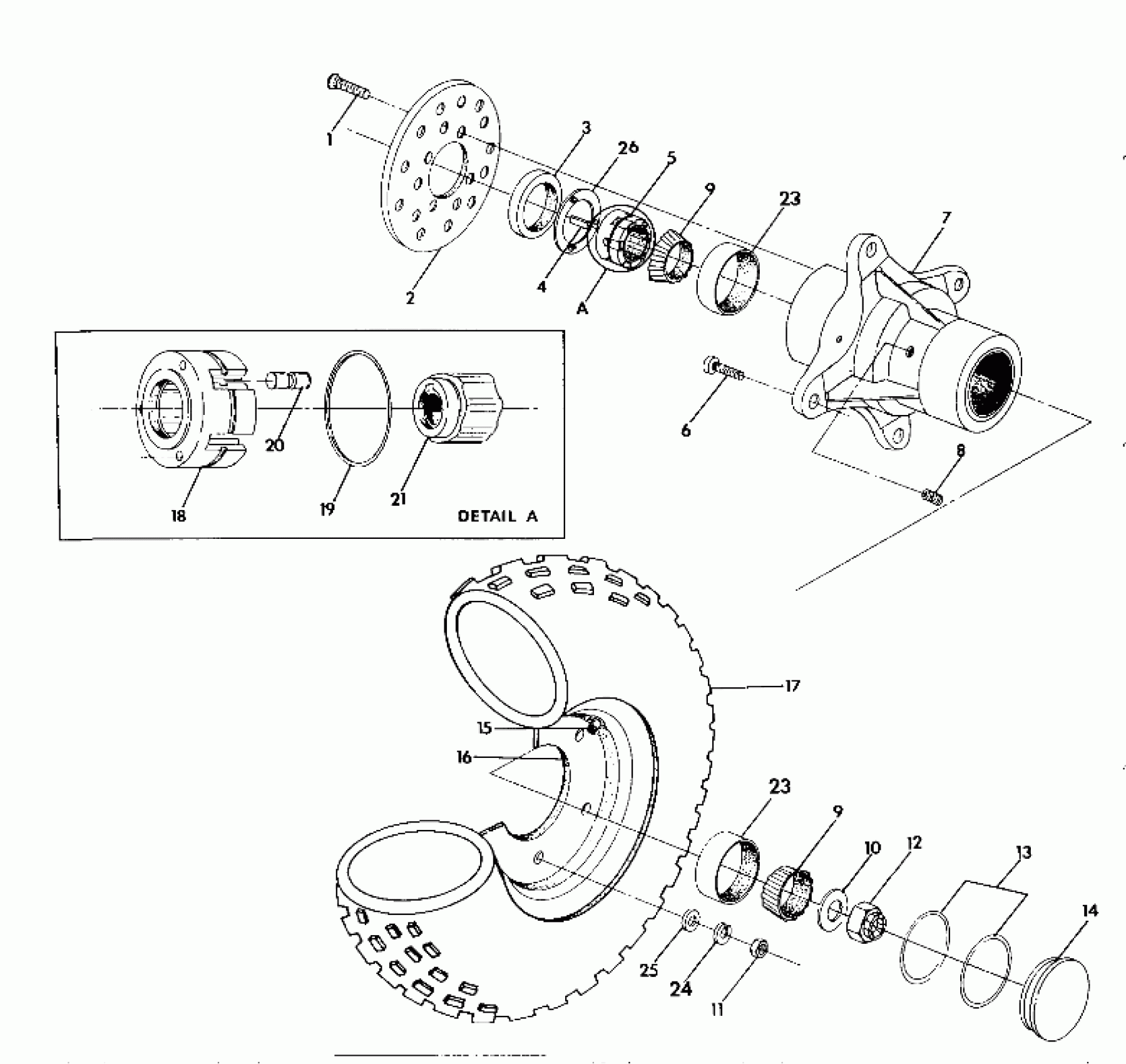

Polaris TRAIL BOSS 350L 4X4 - W928139 FRONT WHEEL ASSEMBLY 350 4X4 / W928139 (4922832283019A) Diagram

#

Description
Price

1

BOLT(10)

7515321

Unavailable

2

DISC, BRAKE Substituted by 5242935

5211326

$89.03

3

SEAL, FR. HUB

3610019

$36.41

4

KEY

7721205

Unavailable

5

CLUTCH ASM,FR.HUB

1520143

$307.49

6

STUD,WHEEL,5/16-18(10)

7515330

Unavailable

7

HUB, WHEEL Substituted by 1520171

5130682

Unavailable

8

PLUG, MAGNETIC

7051518

$13.75

9

BRG,TAPER.ROLL.CONE

3554506

$31.75

9

BRG,TAPER.ROLL.CONE

3554506

$31.75

10

WASHER(10)

5211101

Unavailable

11

NUT LOCK(10)

7542321

$1.19

12

NUT, LOCK Substituted by 7543201

7543202

Unavailable

13

O RING

5410470

$2.41

14

CAP, HUB

5431368

$24.27

15

VALVE-RIM

1525017

$6.46

16

RIM,FRONT,M.RED

1520159-146

Unavailable

17

TIRE,FR(25X8-12)

5410568

$99.74

18

CAGE, ROLL Substituted by 3250028

3250023

Unavailable

19

SPRING, GARTER

3250022

Unavailable

20

ROLLS

3250010

$24.74

21

CAM

3250024

$140.09

23

BRG,TAPER,ROLL CUP

3554507

$31.75

23

BRG,TAPER,ROLL CUP

3554507

$31.75

24

LOCK WASHER(10)

7552901

$1.19

25

WASHER-.344X.688X.063 FL-Y

7558402

$0.99

25

HUB, WHEEL ASM. (Incl. 3, 6, 7 & 23)

1520171

Unavailable

25

HUB, WHEEL ASM. (Incl. 3,6,7 & 23)

1520171

Unavailable

26

Plate, Armature

5211148

$28.32
