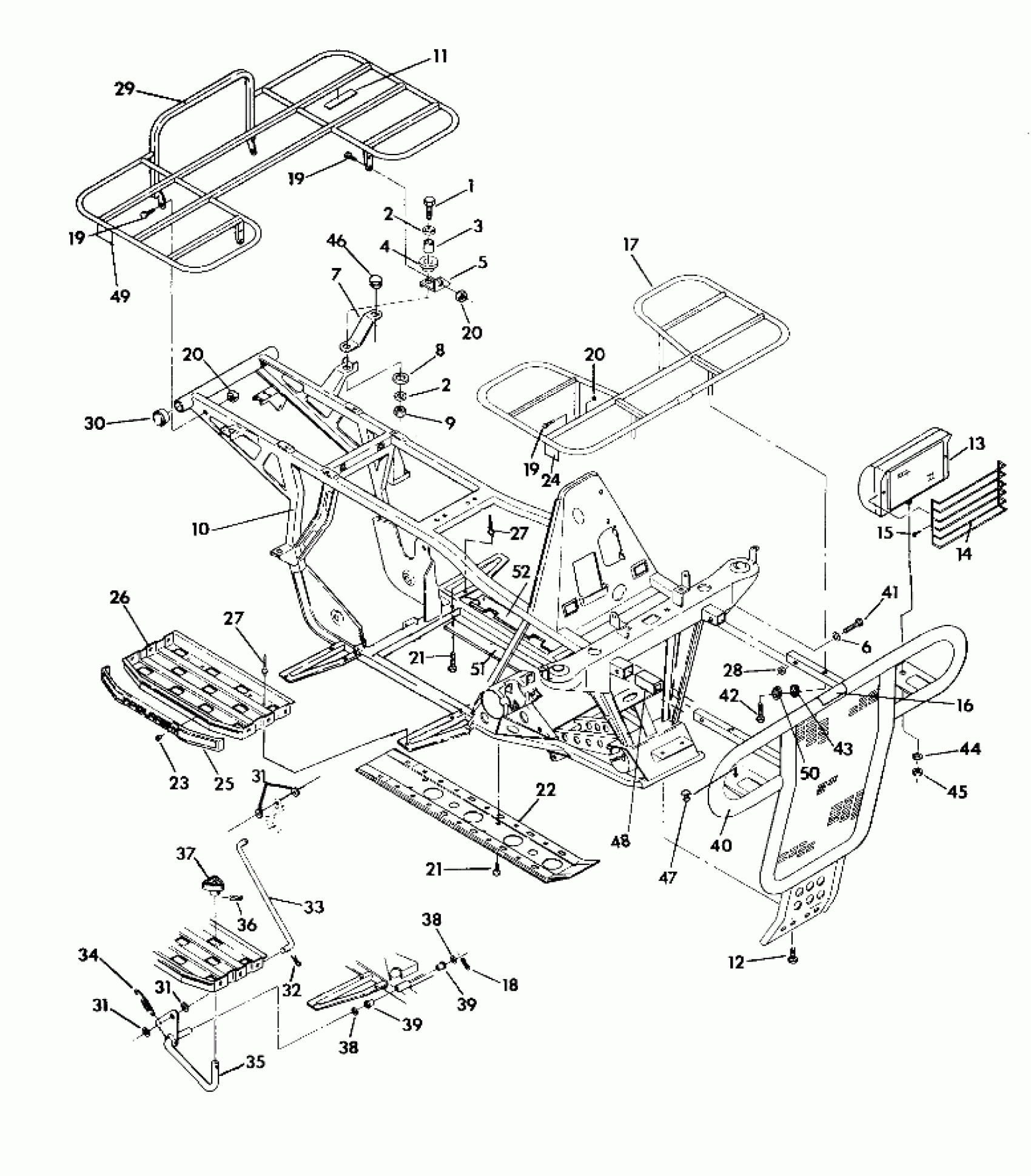

Polaris TRAIL BOSS 350L 4X4 - W928139 FRAME ASSEMBLY w/ RACKS 350 4X4 / W928139 (4922832283003A) Diagram

#

Description
Price

1

SCREW-FLANGED(10)

7515304

$5.59

2

WASHER(10)

7555716

$1.59

2

WASHER(10)

7555716

$1.59

3

BUSHING-RES. MT.

5010192

$6.39

4

DAMPENER

5410241

Unavailable

5

BRKT,LH SUPPORT RACK Substituted by 5243468-067

5220899-067

Unavailable

5

BRKT,RH SUPPORT RACK Substituted by 5243469-067

5220901-067

Unavailable

6

WASHER-.344X.688X.063 FL-Y

7558402

$1.49

7

SUPPORT,R.FENDER

5220902-067

$48.40

8

WASHER,RUBBER

5410436

$1.59

9

NUT-5/16-18 NYLOK-Y (Nylok)

7542324

$1.49

10

FRAME,SQUARE(4X4-350) [No Longer Available]

1040224-067

Unavailable

11

PAD,RACK MOUNT

5810455

$3.19

12

SCREW(10)

7512252

Unavailable

13

HEADLIGHT ASM.

4032058

$43.25

13

BULB

4032059

Unavailable

13

Mount Bracket

-------

Unavailable

13

Lens & Housing

-------

Unavailable

13

Rubber Housing

-------

Unavailable

14

GUARD, STONE

4032044

Unavailable

15

SCREW(10)

7512307

$3.99

16

DECAL, F.SUSP.

7073455

Unavailable

17

RACK,FRT.BLK.

2670137-067

Unavailable

18

COTTER PIN(10)

7661401

$1.49

19

SCREW(10)

7515355

Unavailable

19

SCREW(10)

7515355

Unavailable

19

SCREW(10)

7515355

Unavailable

20

NUT, NYLOK(10)

7542327

$4.79

20

NUT, NYLOK(10)

7542327

$4.79

20

NUT, NYLOK(10)

7542327

$4.79

21

BOLT(10)

7512232

$1.49

21

BOLT(10)

7512232

$1.49

22

GUARD, ROCK, BLK.

5222272-067

Unavailable

23

RIVET,(50)

7661825

$1.49

24

REFLECTOR ASM,AMBER

2670134

$9.70

25

Trim, Footrest

5431484

Unavailable

26

PAD, FOOT, LH. Substituted by 1040274-117

1040189

$81.75

26

FOOTPAD,RH,(ATV) Substituted by 1040275-117

1040275

Unavailable

27

RIVET, (MONOBOLT) Substituted by 7661637

7661620

Unavailable

27

RIVET, (MONOBOLT) Substituted by 7661637

7661620

Unavailable

28

NUT-5/16-18 NYLOK-Y

7542324

$1.49

29

RACK,REAR

2670138-067

Unavailable

30

CAP, BUMPER, 4 WHL.(10) Substituted by 5410794

5430823

Unavailable

31

WASHER(10)

7555827

$3.99

31

WASHER(10)

7555827

$3.99

31

WASHER(10)

7555827

$3.99

32

PIN, COTTER(10)

7661103

$4.99

33

ROD,BRAKE LINKAGE

5224437

$9.59

34

SPRING-EXHAUST(10)

7042029

$4.84

35

PEDAL, BRAKE

1910054-067

$11.19

36

PIN, SPIRAL(10)

7661416

Unavailable

37

PEDAL,FOOT

5130715-067

Unavailable

38

WASHER THRUST(10)

7558702

$1.59

38

WASHER THRUST(10)

7558702

$1.59

39

BUSHING-PEDAL PIVOT

5431107

$8.79

39

BUSHING-PEDAL PIVOT

5431107

$8.79

40

BUMPER,FRT,BLK,(4X4,350) Substituted by 2670148-067

2670119-067

Unavailable

41

BOLT(10)

7512329

$3.99

42

SCREW(10)

7512163

$3.99

43

WASHER(10)

7558301

$1.49

46

PLUG,RUBBER-HOLE,.5DIA(10) Substituted by 5411426

5410012

Unavailable

47

Grommet

5410437

$2.39

48

PLUG, FRAME

5810467

Unavailable

49

REFLECTOR ASM,RED

2670133

$5.75

50

LOCK WASHER(10)

7552801

$1.59

51

GUARD,CLUTCH,INNER

5211359-067

Unavailable

52

GUARD,CLUTCH,OUTER

5222860-067

$7.06
