- TRAIL BOSS 350L 4X4 - W928139
CRANKSHAFT and PISTON 350 4X4/W928139 (4922832283038A)

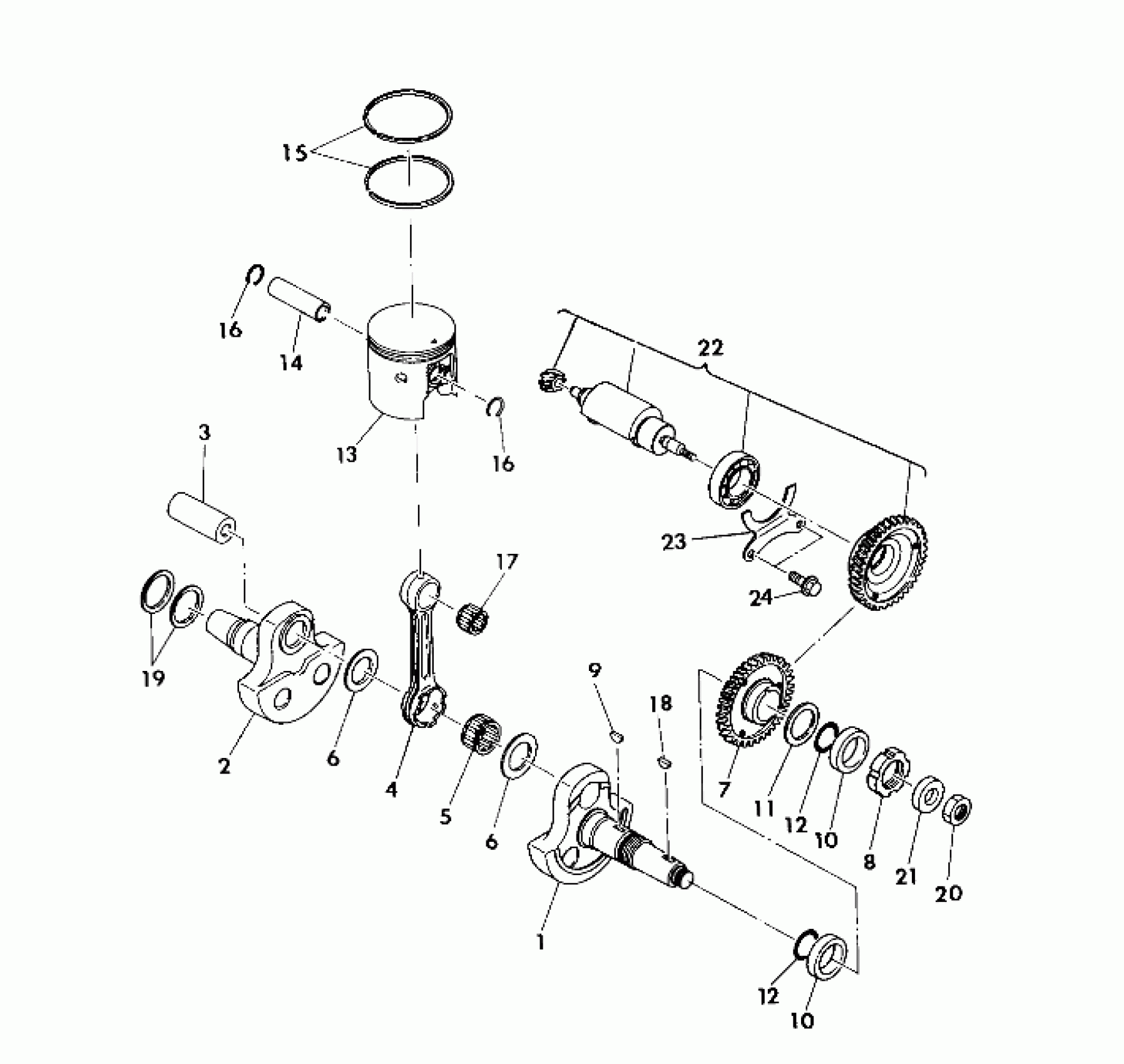

Polaris TRAIL BOSS 350L 4X4 - W928139 CRANKSHAFT and PISTON 350 4X4/W928139 (4922832283038A) Diagram
#
Description
Price
1
CRANKSHAFT #1,MAG SIDE
3084149
$216.99
1
CRANKSHAFT ASM,(350L) Substituted by 3084776 (Incl. 1-6)
3084367
Unavailable
2
CRANKSHAFT #2,PTO SIDE
3084151
$223.01
3
PIN, CRANK #1
3084152
$78.39
4
Rod, Connecting
3084153
Unavailable
5
Bearing, Large End
3084154
Unavailable
6
SPACER, CRANK PIN (Crank Pin)
3084155
Unavailable
6
SPACER, CRANK PIN (Crank Pin)
3084155
Unavailable
7
GEAR, DRIVE * (Drive)
3084156
$110.32
8
NUT, SLIT Substituted by 3086762 (Slit)
3084157
Unavailable
9
KEY WOODRUFF
3081543
$12.94
10
COLLAR Substituted by 3086763
3084158
Unavailable
10
COLLAR Substituted by 3086763
3084158
Unavailable
11
WASHER, GUIDE Substituted by 3086764
3084159
Unavailable
12
O RING
3084160
Unavailable
12
O RING
3084160
Unavailable
13
PISTON, (.010 O/S) * (0.25mm/.010" O/S)
3084162
Unavailable
13
PISTON, (.020 O/S) (0.50mm/.020" O/S)
3084163
Unavailable
13
PISTON, (STD.)
3084161
Unavailable
14
Pin, Piston
3083838
$27.99
15
RING,PISTON,(.020 O/S) (0.50mm/.020" O/S)
3084166
Unavailable
15
RING,PISTON,(.010 O/S) (0.25mm/.010" O/S)
3084165
Unavailable
15
RING, PISTON,(STD.)
3084164
Unavailable
16
CLIP,(10) (Piston Pin)
3084167
$6.39
16
CLIP,(10) (Piston Pin)
3084167
$6.39
17
Bearing, Small End
3084168
$31.99
19
SPACER #2, (0.3)
3084170
Unavailable
19
SPACER #1, (0.2)
3084169
Unavailable
20
LOCKNUT
3083905
Unavailable
21
WASHER Substituted by 3086767
3083904
Unavailable
22
BALANCER Substituted by 3087042
3084172
Unavailable
23
PLATE Substituted by 3086768
3084173
$25.40
24
BOLT, FLANGE Substituted by 3086769
3084174
Unavailable
