CONTROL ASSEMBLY 350 4X4 / W928139 (4922832283015A)

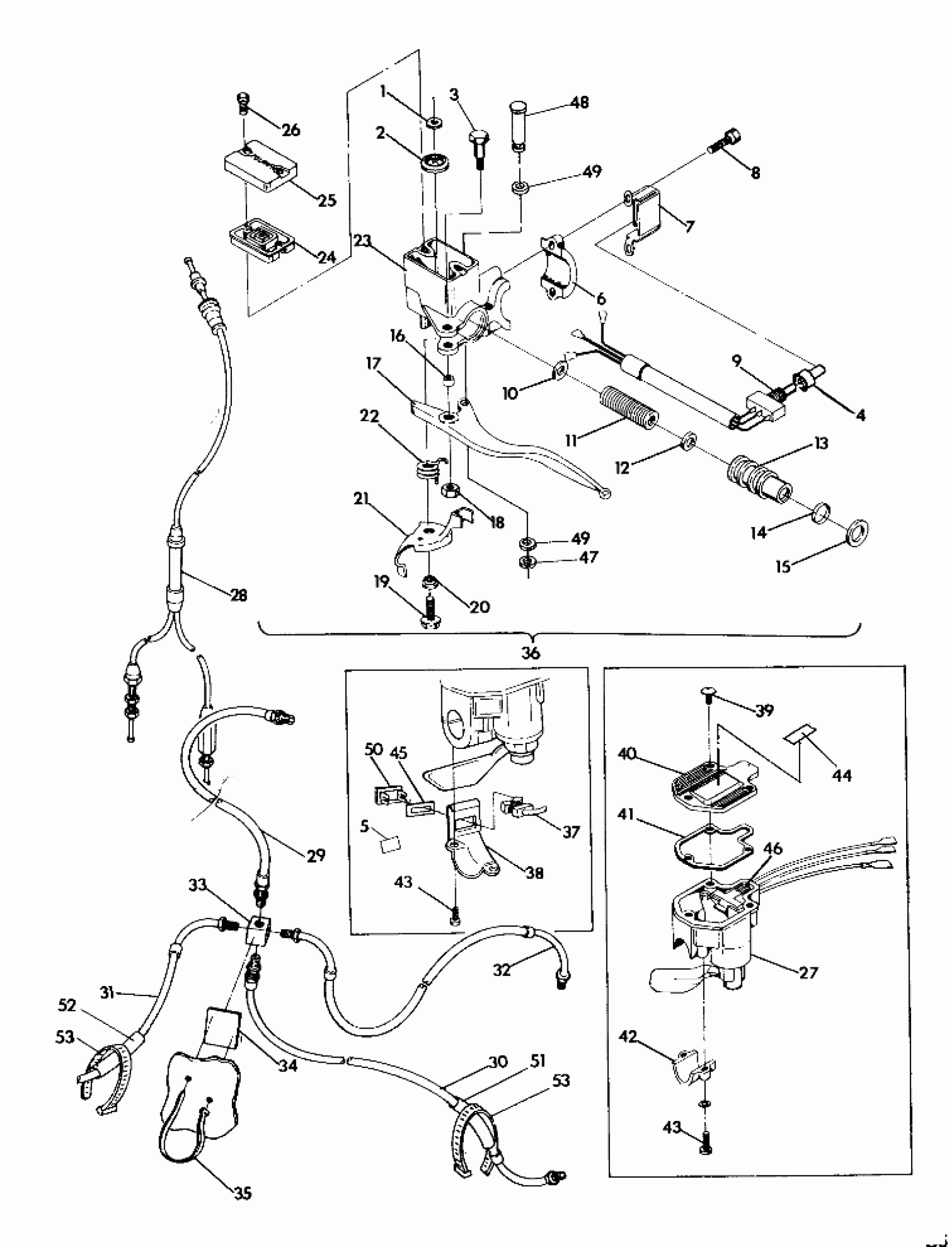

Polaris TRAIL BOSS 350L 4X4 - W928139 CONTROL ASSEMBLY 350 4X4 / W928139 (4922832283015A) Diagram
#
1
WASHER, BAFFLE(10)
1930662
Unavailable
2
BAFFLE,MASTER CYL.
1930673
Unavailable
3
BOLT,BRAKE LEVER(10)
7512287
Unavailable
4
BOOT, O'RIDE SW.
7080379
Unavailable
5
DECAL,4X4 SWITCH [No Longer Available]
7072691
Unavailable
6
CLAMP, MASTER CYL.
5630342
Unavailable
7
BRKT,O'RIDE SW. Substituted by 5222475
5222318
Unavailable
8
BOLT,SOCKET HEAD(10)
7512290
$4.79
9
SW,O'RIDE,REV.LIMIT.
4110083
$35.99
10
WASHER(10)
7555708
$3.99
11
SPRING,COMPRESSION,(10)
7041203
$33.87
12
U PACKING SEAL
5410164
Unavailable
13
PISTON, MASTER CYL.
5020599
Unavailable
14
O RING
5410163
$1.60
15
SEAL, OIL
3610022
Unavailable
16
BUSHING,BRAKE LEVER
5332931
Unavailable
17
LEVER, BRAKE
5630387
Unavailable
18
NUT(10)
7542124
Unavailable
19
SCREW(10)
7511866
$4.79
20
BUSHING,PK.BRAKE LEVER
5020545
Unavailable
21
LEVER,PARK.BRAKE
2050060
$5.75
22
SPRING,PK.BRAKE
7041229
$32.37
23
HSG.,MASTER CYL.
5130772
Unavailable
24
GASKET,MASTER CYL.
5410527
$8.99
25
COVER,MASTER CYL.
5630338
Unavailable
26
SCREW,W/WASHER(10)
7512050
$3.99
27
THROTTLE CONTROL (Incl. 39-45)
2010110
Unavailable
28
CABLE, THROTTLE Substituted by 7080532
7080397
Unavailable
29
LINE,BRAKE,UP.,W/FTGS. Substituted by 1930748
1930633
$84.93
30
LINE,BRAKE,LH.FRT,W/FTGS. Substituted by 1930752
1930631
$84.93
31
LINE,BRAKE,RH FRT. Substituted by 1930753
1930634
$84.93
33
FITTING, TEE
7052044
Unavailable
34
PAD,GAS TANK [No Longer Available]
5850040
Unavailable
35
Desc not available [No Longer Available]
7080188
Unavailable
36
MASTER CYL.ASM.(ATV) Substituted by 2050066 (Incl. 1-5,10-12)
2050055
$235.51
37
SWITCH,DRIVE DEMAND (Incl. 50)
4110123
Unavailable
38
BRKT, SWITCH
5222167
Unavailable
39
SCREW,BUTTON HEAD
2010079
Unavailable
40
CAP
2010080
Unavailable
41
PACKING,THROTTLE
2010081
Unavailable
42
HOLDER
2010078
$13.19
43
SCREW, SEMS(10)
2010077
Unavailable
43
SCREW, SEMS(10)
2010077
Unavailable
44
DECAL,THROTTLE(ENG.) [No Longer Available]
7072724
Unavailable
45
PLATE,SW.RETENTION
5211264
Unavailable
46
SWITCH,ETC,REPL.(4X4'J') Substituted by 2871345
4110132
Unavailable
47
RING, RETAINING(10)
7710425
Unavailable
48
PIN,BRAKELEVER ROLLER
7661627
Unavailable
49
ROLLER, BRAKE LEVER
5020598
Unavailable
49
ROLLER, BRAKE LEVER
5020598
Unavailable
50
BEZEL,DEM.DRIVE SW.
5222870
Unavailable
51
CONDUIT, 30 CM. Substituted by 8360011-34
8360031-30
Unavailable
52
CONDUIT, 38 CM.
8360031-38
$2.63
53
STRAP, BLK
7080272
Unavailable
53
STRAP, BLK
7080272
Unavailable
