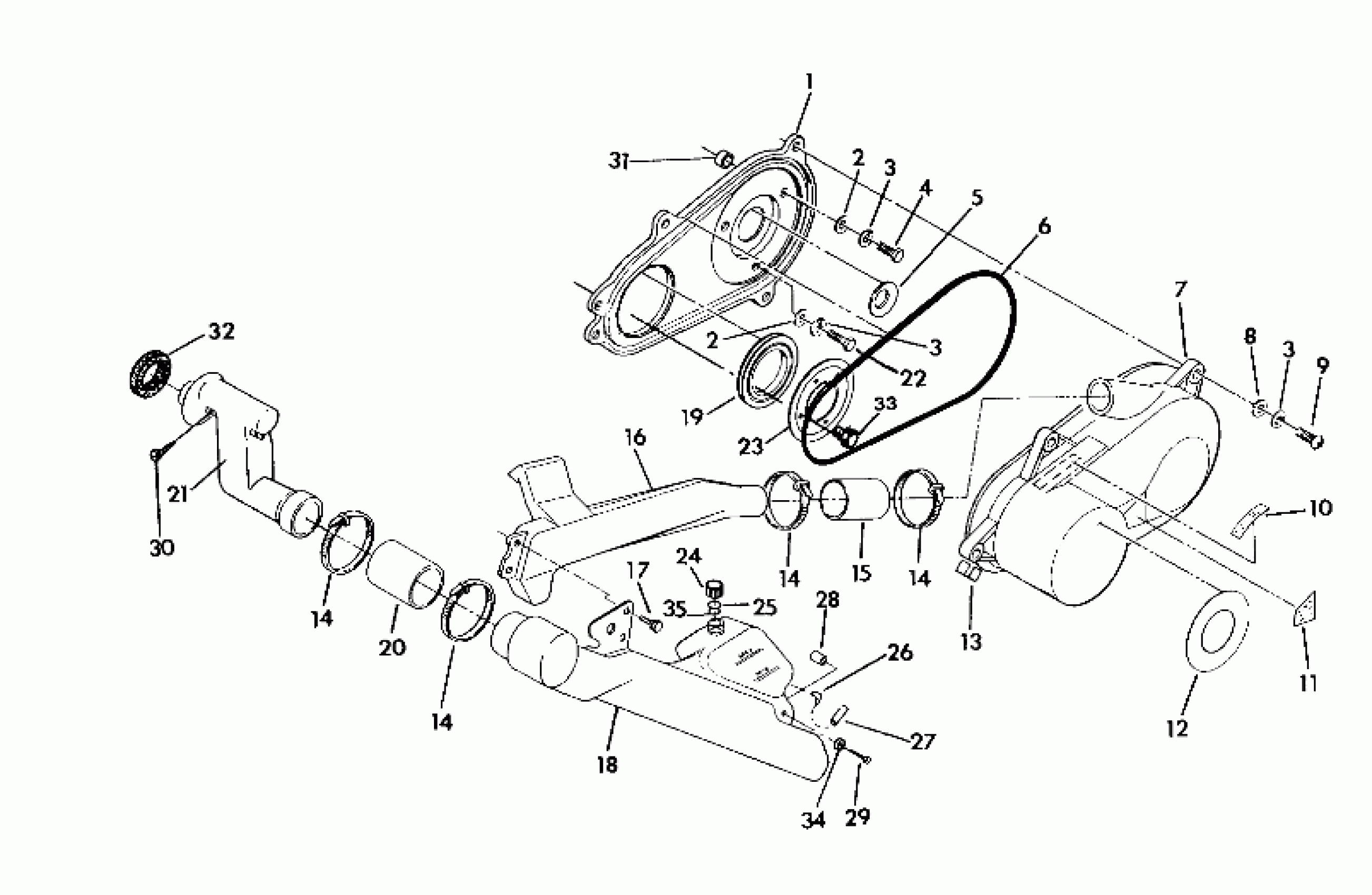

Polaris TRAIL BOSS 350L 4X4 - W928139 CLUTCH COVER ASSEMBLY 350 4X4 / W928139 (4922832283024A) Diagram

#

Description
Price

1

COVER, CLUTCH, REAR Substituted by 2200803

5430772

Unavailable

2

WASHER-.28X.62-.14(RBR-BK)-Z

7555748

$4.79

2

WASHER-.28X.62-.14(RBR-BK)-Z

7555748

$4.79

3

WASHER(10)

7552605

$5.27

3

WASHER(10)

7552605

$5.27

3

WASHER(10)

7552605

$5.27

4

BOLT(10)

7512277

$4.79

5

SEAL,COVER CASE

5410489

$13.59

6

SEAL,CLUTCH COVER Substituted by 5521301

5521160

$30.88

7

COVER, CLUTCH,FRONT

5430771

Unavailable

8

WASHER(10) Substituted by 7558301

7555776

Unavailable

9

BOLT(10)

7512281

$3.99

10

DECAL(CPSC),CLUTCH COVER Substituted by 7074946

7072787

Unavailable

11

DECAL(CPSC),ENG/CLUTCH MOD. [No Longer Available]

7072789

Unavailable

12

DECAL, PVT [No Longer Available]

7072386

Unavailable

13

CLIP,CLUTCH COVER(10)

7670051

$2.99

14

CABLE-TIE,25-76MM,WEATH.-RES.

7080492

$2.41

14

CABLE-TIE,25-76MM,WEATH.-RES.

7080492

$2.41

14

CABLE-TIE,25-76MM,WEATH.-RES.

7080492

$2.41

14

CABLE-TIE,25-76MM,WEATH.-RES.

7080492

$2.41

15

BOOT, INTAKE

5410423

Unavailable

16

DUCT, AIR OUTLET

5431010

Unavailable

17

SCR-#10-24X3/4,PN/TR RD-TORX-Y

7512018

$3.19

18

DOWNTUBE,DUAL INLET Substituted by 5432336

5431185

$119.68

19

Seal, Cover Case

5410575

Unavailable

20

BOOT, INTAKE

5410509

$7.99

21

DUCT, INLET, TOP

5431261

$49.59

22

BOLT(10)

7512278

Unavailable

23

BRKT,RETAINER,SEAL

5222446-067

Unavailable

24

CAP-OVER FLOW BOTTLE,DRILLED

5430743

$5.65

25

GASKET-OVERFLOW CAP

5810279

$2.41

26

FITTING,90 DEGREE

7052065

$7.19

27

FUEL LINE-50FT.PKG. Substituted by 8450003-1525

2870563

Unavailable

28

SPACER

5020577

Unavailable

29

SCREW(10)

7512025

$4.79

30

SCREW(10)

7512027

$1.49

31

SPACER

5333062

Unavailable

32

SEAL, INTAKE

5810480

Unavailable

33

SCREW & WASHER(10)

3084205

$3.99

34

WASHER(10)

7555783

$3.99

35

PLUG, OVERFLOW,(10)

5431096

$2.02
