BODY and FRAME ASSEMBLY 350 4X4 / W928139 (4922832283001A)

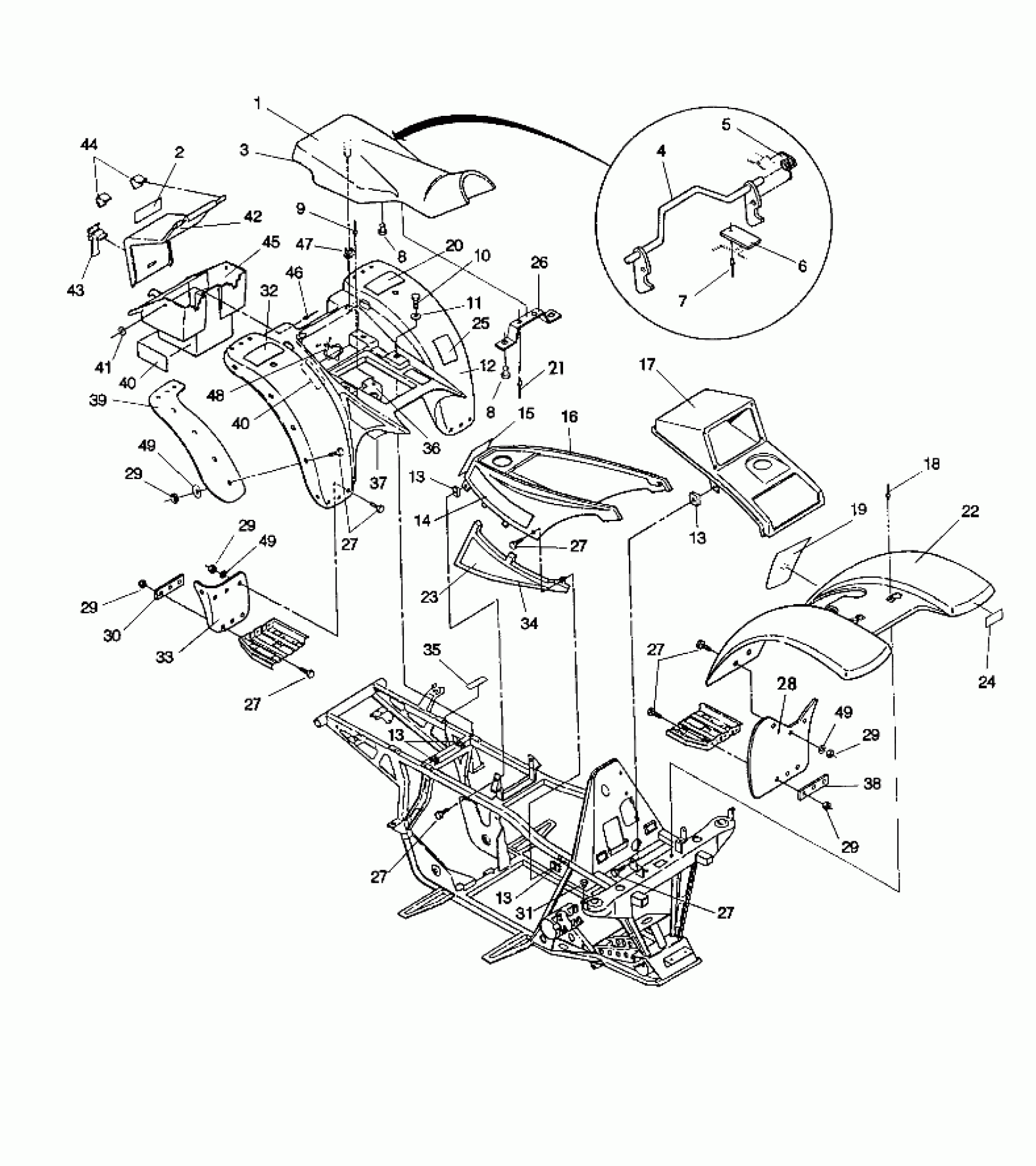

Polaris TRAIL BOSS 350L 4X4 - W928139 BODY and FRAME ASSEMBLY 350 4X4 / W928139 (4922832283001A) Diagram
#
1
SEAT ASM,(ATV) Substituted by 2681724-136
2681520
Unavailable
2
DECAL(CPSC),PASS.WRN. [No Longer Available]
7072805
Unavailable
3
COVER,SEAT,(P.RED) Substituted by 2681723-136
2681521
Unavailable
4
LATCH,SEAT
1011558
Unavailable
5
SPRING, LATCH
7041158
Unavailable
6
BRACKET,LEVER RETAINER
5211033
$29.25
7
BLIND RIVET(50)
7621403
$1.49
8
Bumper, Rubber
5410414
$3.19
8
Bumper, Rubber
5410414
$3.19
9
RIVET,3/16X.402(50)
7621432
$1.49
10
BOLT(10)
7512232
$1.49
11
WASHER(10)
7558301
$1.49
12
CAB,REAR,LT.GREY Substituted by 5431271-143
5430991-143
Unavailable
13
NUT, SPEED(10)
7670060
$3.99
13
NUT, SPEED(10)
7670060
$3.99
13
NUT, SPEED(10)
7670060
$3.99
13
NUT, SPEED(10)
7670060
$3.99
14
DECAL, '4X4'
7073449
Unavailable
15
DECAL(CPSC),AGE WARN. Substituted by 7074827
7072933
Unavailable
16
COVER,FUELTANK,GREY
5431263-143
Unavailable
17
COVER,(P.RED),H/L.
5431202-136
Unavailable
18
RIVET(50)
7621457
$1.49
19
DECAL,WARNING(CPSC) [No Longer Available]
7072693
Unavailable
20
DECAL(CPSC),WARN,HVY.LOAD [No Longer Available]
7072786
Unavailable
21
RIVET
7621481
Unavailable
21
DECAL,MANUFACTURE [No Longer Available] (S928139) (Not Shown)
7073373
Unavailable
22
CAB,FR,GRY(4WHL) Substituted by 2631549-143
5431248-143
Unavailable
23
DECAL, SIDE PANEL [No Longer Available]
7072884
Unavailable
24
LABEL, 'U.S.A.' [No Longer Available]
7073025
Unavailable
25
DECAL(CPSC),TIRE PRESS.
7073069
Unavailable
26
BRKT,SUPPORT SEAT BASE
5222837-067
Unavailable
27
BOLT, BLACK(10)
7512282
$1.49
27
BOLT, BLACK(10)
7512282
$1.49
27
BOLT, BLACK(10)
7512282
$1.49
27
BOLT, BLACK(10)
7512282
$1.49
27
BOLT, BLACK(10)
7512282
$1.49
27
BOLT, BLACK(10)
7512282
$1.49
28
MUDFLAP,LH FRONT
5850086
Unavailable
28
MUDFLAP,RH,FRONT
5850091
$13.49
29
NUT-LOCK(10)
7542122
$1.49
29
NUT-LOCK(10)
7542122
$1.49
29
NUT-LOCK(10)
7542122
$1.49
29
NUT-LOCK(10)
7542122
$1.49
29
NUT-LOCK(10)
7542122
$1.49
30
BRKT, LH MUD FLAP
5211131-067
Unavailable
31
PLUG,RUBBER-HOLE,.5DIA(10) Substituted by 5411426
5410012
Unavailable
32
DECAL(CPSC),WARN,R.RACK [No Longer Available]
7072788
Unavailable
33
MUDFLAP,LH,LOW,REAR
5850076
Unavailable
33
MUDFLAP,RH,LOW REAR
5850077
$23.65
34
COVER,,LH(P.RED)SIDE Substituted by 5433382-136
5430970-136
Unavailable
34
COVER,RH(P.RED)SIDE Substituted by 5433579-136
5430971-136
Unavailable
35
DECAL,FILTER ELEMENT [No Longer Available]
7072791
Unavailable
36
BRKT,R.HOLDDOWN
5220880
Unavailable
37
TAPE,FOIL,R.CAB (Inside)
5810416
Unavailable
38
BRKT,RH MUD FLAP
5211020-067
Unavailable
39
MUDFLAP,LH,R.BLK.
5850089-070
Unavailable
39
MUDFLAP,RH,R,BLK.
5850090-070
Unavailable
40
TAPE, FOIL
5810310
Unavailable
40
TAPE, FOIL
5810310
Unavailable
41
WASHER,13/64X1/2X18GA,FL-Y
7558212
$1.49
42
LID,TOOLBOX(P.RED/LT.GREY)
5430769-1017
Unavailable
43
STRAP,TOOL COMPARTMENT
5410425
Unavailable
44
CLIP, LID HINGE(10)
7670050
Unavailable
45
BOX,TOOL COMP.
5430882
Unavailable
46
RIVET(50)
7621462
$1.49
47
GROMMET
5410413
Unavailable
48
RETAINER,TOOL POUCH
7080385
Unavailable
