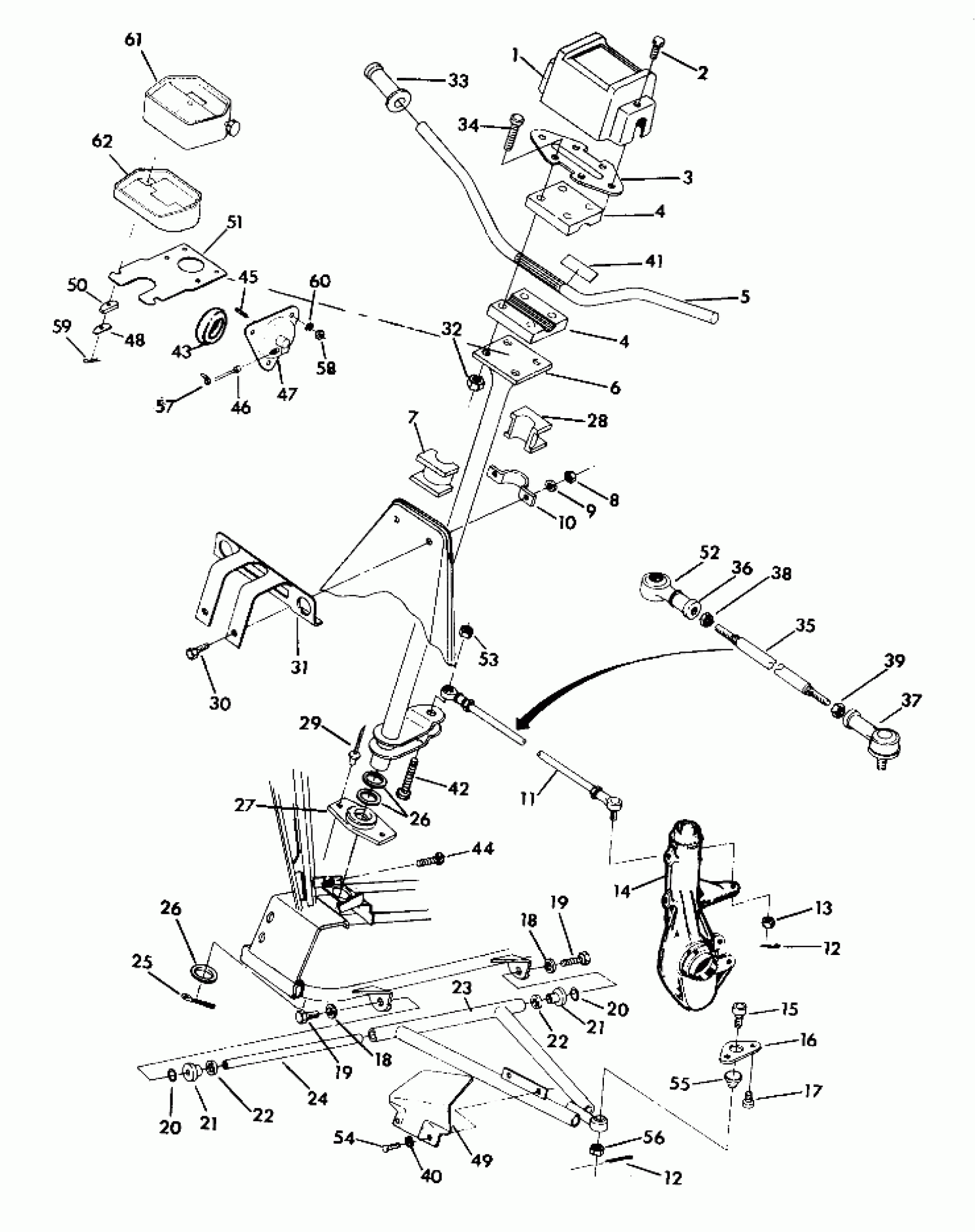

Polaris TRAIL BOSS 350L 4X4 - W918139 STEERING ASSEMBLY 350 4X4 - Update (4919831983015A) Diagram

#

Description
Price

1

PAD, HANDLEBAR

5810379

$40.46

2

BOLT(10) Substituted by 7515197

7512286

Unavailable

3

MOUNT,HDLBR. PAD Substituted by 5245051

5220946

$5.71

4

BLOCK,HANDLEBAR

5630187-067

$44.99

4

BLOCK,HANDLEBAR

5630187-067

$44.99

5

TUBE,HANDLEBAR Substituted by 5224316-067

5224316-132

Unavailable

6

POST, STEERING

1840106-067

Unavailable

7

BUSHING,STRG.,UPPER Substituted by 5431572

5430966

Unavailable

8

NUT-5/16-18 NYLOK-Y

7542324

$1.49

9

WASHER-.344X.688X.063 FL-Y

7558402

$1.49

10

BUSHING,UPPER STRG. Substituted by 5220887-067

5220887

Unavailable

11

TIE ROD ASM. Substituted by 1822310

1822081

Unavailable

12

PIN COTTER(10)

7661203

$1.49

12

PIN COTTER(10)

7661203

$1.49

13

NUT, CASTLE(10)

7546904

$4.79

14

HUB STRUT ASM,LH

1843033

Unavailable

14

HUB STRUT ASM,RH

1843034

Unavailable

15

BALL JOINT Substituted by 7080673

7080364

Unavailable

16

BRACKET-BALL JOINT

5211121

$31.99

17

SCR-1/4-20X5/8 FL HX SOC CP-Y

7512284

$1.49

18

WASHER(10)

7552603

$1.49

18

WASHER(10)

7552603

$1.49

19

BOLT(10) Substituted by 7512492

7515458

Unavailable

19

BOLT(10) Substituted by 7512492

7515458

Unavailable

20

O RING

5410458

Unavailable

20

O RING

5410458

Unavailable

21

BEARING,'A' ARM Substituted by 2200474

3576509

Unavailable

21

BUSHING, A-ARM ("J" Model Only)

3563604

Unavailable

21

BEARING,'A' ARM Substituted by 2200474

3576509

Unavailable

21

BUSHING, A-ARM ("J" Model Only)

3563604

Unavailable

22

WASHER(10)

7555774

Unavailable

22

WASHER(10)

7555774

Unavailable

23

A FRAME, LH Substituted by 2200481

1580033-067

Unavailable

23

A FRAME, RH Substituted by 2200482

1580034-067

$159.75

24

SHAFT,'A-ARM'

5020529

Unavailable

25

PIN, COTTER(10)

7661404

$4.79

26

BUSHING(10)

7555781

Unavailable

26

BUSHING(10)

7555781

Unavailable

27

BUSHING,STRG.,LOWER Substituted by 5431570

5430895

Unavailable

28

BUSHING,UPPER STRG. Substituted by 5431573

5431138

$8.48

29

RIVET, (MONOBOLT) Substituted by 7661637

7661620

Unavailable

30

BOLT,5/16-18X3/4

7512371

$4.79

31

BRKT, IGN. PANEL

5220965-067

Unavailable

32

NUT-LOCK(10)

7542122

$1.49

33

GRIP, HANDLEBAR

5431030

$24.27

34

BOLT,(10)

7512265

$3.99

35

TIE ROD

5020528

Unavailable

36

ROD END, RH Substituted by 1822179

7060149

Unavailable

37

ROD END

7060147

$56.65

38

NUT HEX(10)

7542401

$2.39

39

NUT, LH, 10 MM.(10)

7546902

Unavailable

40

WASHER(10)

7555792

$4.79

41

DECAL,O'RIDE SW.(4X4) Substituted by 7076273

7072827

Unavailable

42

BOLT(10) Substituted by 7515554

7515507

Unavailable

43

SEAL,ANGLE DRIVE Substituted by 3280131

5810481

Unavailable

44

SCREW, SPEC.

5020601

Unavailable

45

KEY,SQUARE,(SPEEDO) Substituted by 3280134

3280110

Unavailable

46

CABLE,SPEEDOMETER Substituted by 3280130

3280108

Unavailable

47

ADAPTER,DRIVE Substituted by 3280116

3280095

Unavailable

48

PLATE,MTG,(SPEEDO)

5211189

$12.99

49

SHIELD,RH CV JOINT Substituted by 5431149-070

5431149

$24.27

49

SHIELD,LH CV JOINT Substituted by 5431150-070

5431150

Unavailable

50

SPACER,SPEEDO.MTG.

5810442

$10.99

51

BRACKET,SPEEDO

5222269-067

$15.67

52

BOOT, SEAL, ROD END

5410540

$7.19

53

NUT LOCK(10)

7542403

$3.99

54

SCREW(10)

7512017

$4.79

55

Boot, Rubber

5410548

Unavailable

56

NUT-3/8-24 HX CA GR5-Y

7542438

$1.59

57

CABLE-TIE,DIA12-50MM,WTHR-RES.

7080138

$2.41

59

HAIRPIN, COTTER(10)

7660701

$1.99

60

WASHER(10)

7555725

Unavailable

61

SPEEDOMETER, ATV Substituted by 3280129

3280107

Unavailable

62

MOUNT, SPEEDOMETER

5410546

Unavailable

62

KNOB,TRIPMETER,REPL. [No Longer Available]

2200420

Unavailable
