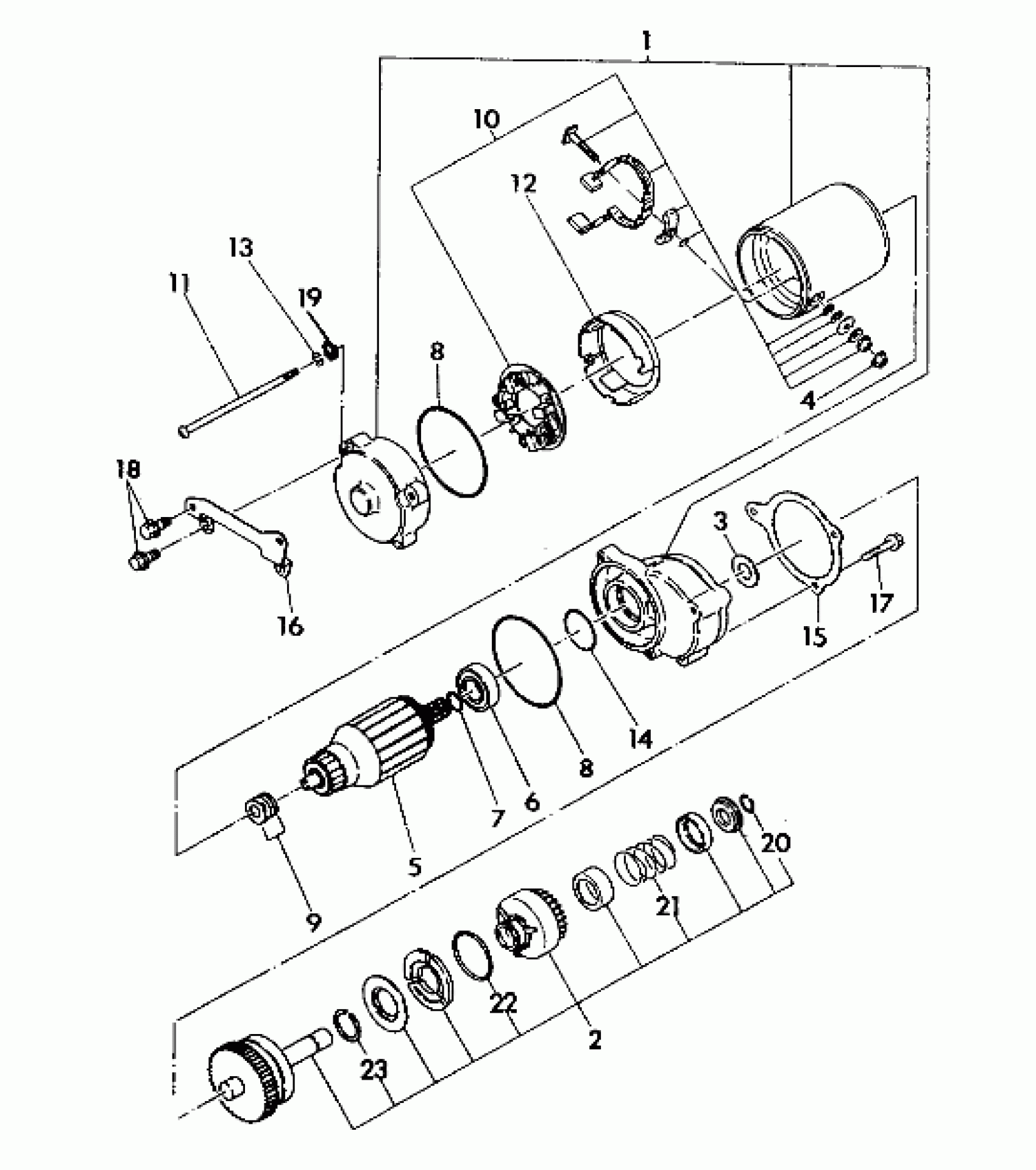

Polaris TRAIL BOSS 350L 4X4 - W918139 STARTING MOTOR ASSEMBLY 350 4X4 - Update (4919831983046A) Diagram

#

Description
Price

-

STARTER MOTOR ASM. Substituted by 3084403 (Incl. 5-14)

3083760

Unavailable

-

STARTER MOTOR ASM. Substituted by 3085393 (Incl. 5-14) ("J" Model Only)

3084403

Unavailable

1

MOTOR, STARTER Substituted by 3083760 (Incl. 1-14)

3083933

Unavailable

1

STARTER MOTOR ASM. Substituted by 3085392 (Incl. 1-14) ("J" Model Only)

3084402

Unavailable

2

GEAR SHAFT ASM. Substituted by 3085394

3083647

Unavailable

3

WASHER, GEARSHAFT Substituted by 7555908 (Gear Shaft)

3083737

Unavailable

4

NUT, FLANGE(10)

3083649

$3.99

5

ARMATURE ASM. (Incl. 6,7)

3083776

$191.99

5

ARMATURE ASM. * (Incl. 6,7) ("J" Model Only)

3084404

$207.99

6

BALL BEARING

3083777

$31.99

7

O RING

3083934

Unavailable

8

RING, RUBBER ("J" Model Only)

3084405

Unavailable

8

RING, RUBBER

3083738

$1.83

8

RING, RUBBER ("J" Model Only)

3084405

Unavailable

8

RING, RUBBER

3083738

$1.83

9

Washer Set

3083754

$2.39

10

BRUSH ASM.

3083728

Unavailable

10

BRUSH,COMPL.2-POLE * ("J" Model Only)

3084406

Unavailable

11

BOLT,THROUGH

3083739

Unavailable

11

BOLT, THROUGH ("J" Model Only)

3084407

Unavailable

12

HOLDER,BRUSH

3083740

Unavailable

13

WASHER SPRING(10) Substituted by 3083133

3080672

Unavailable

14

O RING

3083741

$9.37

15

GASKET (Starter)

3083835

Unavailable

16

BRACKET Substituted by 3086780

3084214

Unavailable

17

BOLT, FLANGE Substituted by 3086781

3084215

Unavailable

18

BOLT, FLANGE(10) Substituted by 3087035

3083568

$3.85

19

O-RING ("J" Model Only)

3084408

Unavailable

20

CLIP ("J" Model Only)

3084409

$7.19

21

SPRING, RETURN ("J" Model Only)

3084410

$2.47

22

SPRING, WEIGHT ("J" Model Only)

3084411

$15.67

23

CLIP ("J" Model Only)

3084412

$9.59
