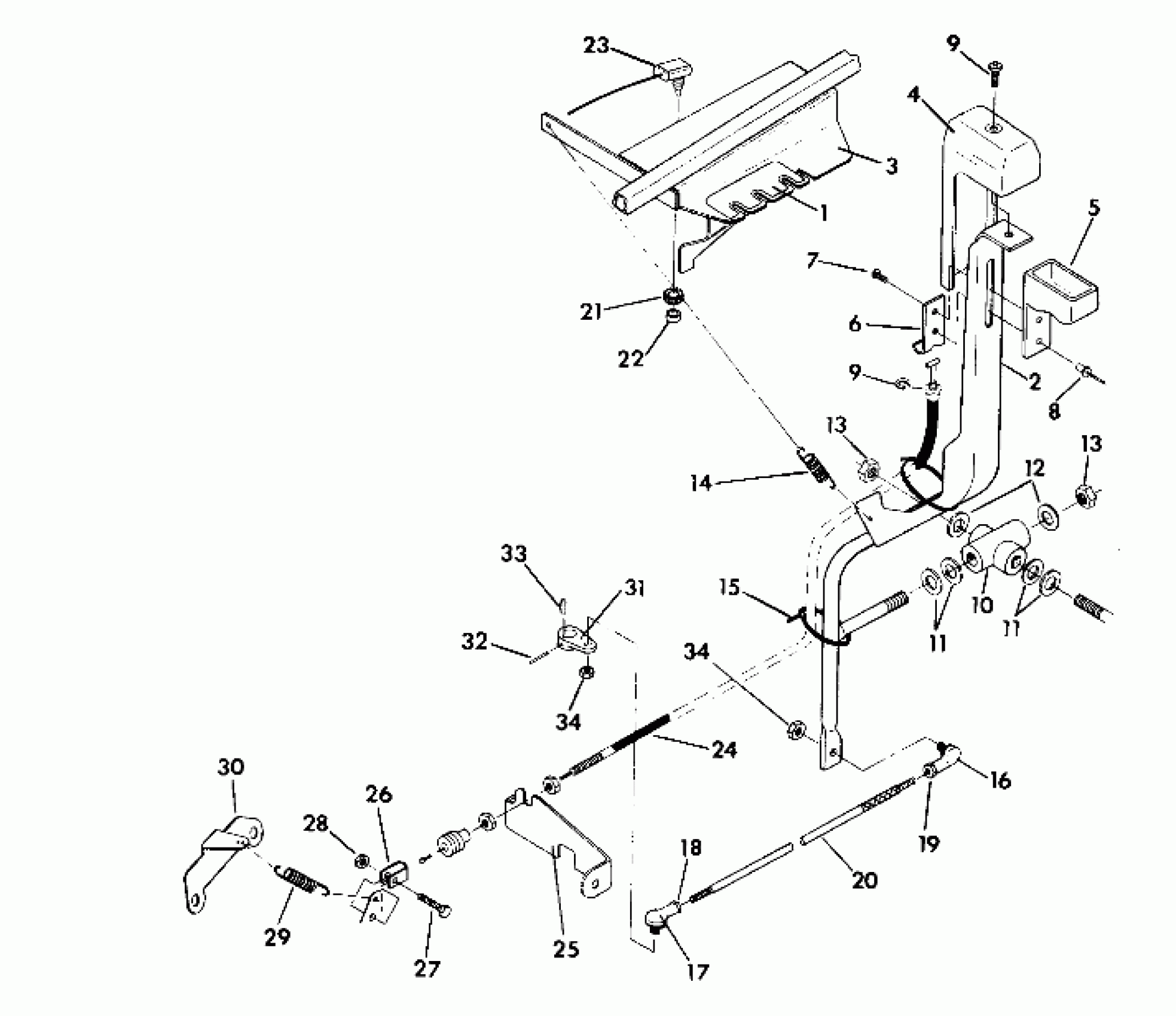

Polaris TRAIL BOSS 350L 4X4 - W918139 SHIFT LINKAGE ASSEMBLY 350 4X4 - Update (4919831983039A) Diagram

#

Description
Price

1

DECAL,SHIFT PATTERN [No Longer Available]

7072905

Unavailable

1

DESC NOT_AVAILABLE ("J" Model Only)

7073399

Unavailable

2

LEVER,SHIFT,WELD. Substituted by 1341069-067

1341069

Unavailable

3

PLATE, SHIFT

1341079

$13.99

4

HANDLE,SHIFT LEVER

5431267

Unavailable

5

LEVER,SHIFT(ACTUATOR)

5431266

Unavailable

6

CLIP,CABLE CONNECT.

5222576

Unavailable

7

SCREW(10)

7511868

Unavailable

8

RIVET, POP(50)

7621322

$0.56

9

SCREW(10)

7512029

Unavailable

9

SCREW(10)

7512029

Unavailable

10

BLOCK,SHIFT POINT

5431106

$44.51

11

WASHER-.390X.750X.020-WAVE-Y

7555795

$1.49

11

WASHER-.390X.750X.020-WAVE-Y

7555795

$1.49

12

WASHER,WROUGHT(10)

7558302

$1.59

13

NUT FLEX-LOC(10)

7542303

$6.39

13

NUT FLEX-LOC(10)

7542303

$6.39

14

SPRING,SHIFT LEVER

7041227

$5.75

15

CABLE-TIE,DIA12-50MM,WTHR-RES.

7080138

$2.41

16

ROD END, LH Substituted by 7061013

7060141

$65.33

17

ROD END, RH Substituted by 7061014

7060142

$65.33

18

NUT(10)

7546701

$3.99

19

NUT(10)

7546702

$1.49

20

ROD,SHIFT LINKAGE

5020538

Unavailable

21

BOOT, O'RIDE SW. (Except "J" Model)

7080379

Unavailable

22

WASHER(10) (Except "J" Model)

5850081

Unavailable

23

SWITCH,FWD.(4WD) (Except "J" Model)

4110090

Unavailable

24

CABLE, SHIFT

7080420

Unavailable

25

BRKT,CABLE SHIFTLOCK Substituted by 5222569-067

5222569

Unavailable

26

PIN, CLEVIS

7080316

Unavailable

27

BOLT, BLACK(10)

7512282

$1.49

28

NUT HEX-LOCK(10)

7542101

$3.99

29

SPRING,LOCK(TRANS.)

7042035

Unavailable

30

BRKT,SPRING,SHIFTLOCK Substituted by 5222570-067

5222570

Unavailable

31

LEVER, SHIFT

5130783

Unavailable

32

PIN, SPIRAL(10)

7661506

Unavailable

33

KEY, HI-PRO

7721113

Unavailable

34

NUT-6MM X 1 NYLOK-Z

7546703

$1.49

34

NUT-6MM X 1 NYLOK-Z

7546703

$1.49
