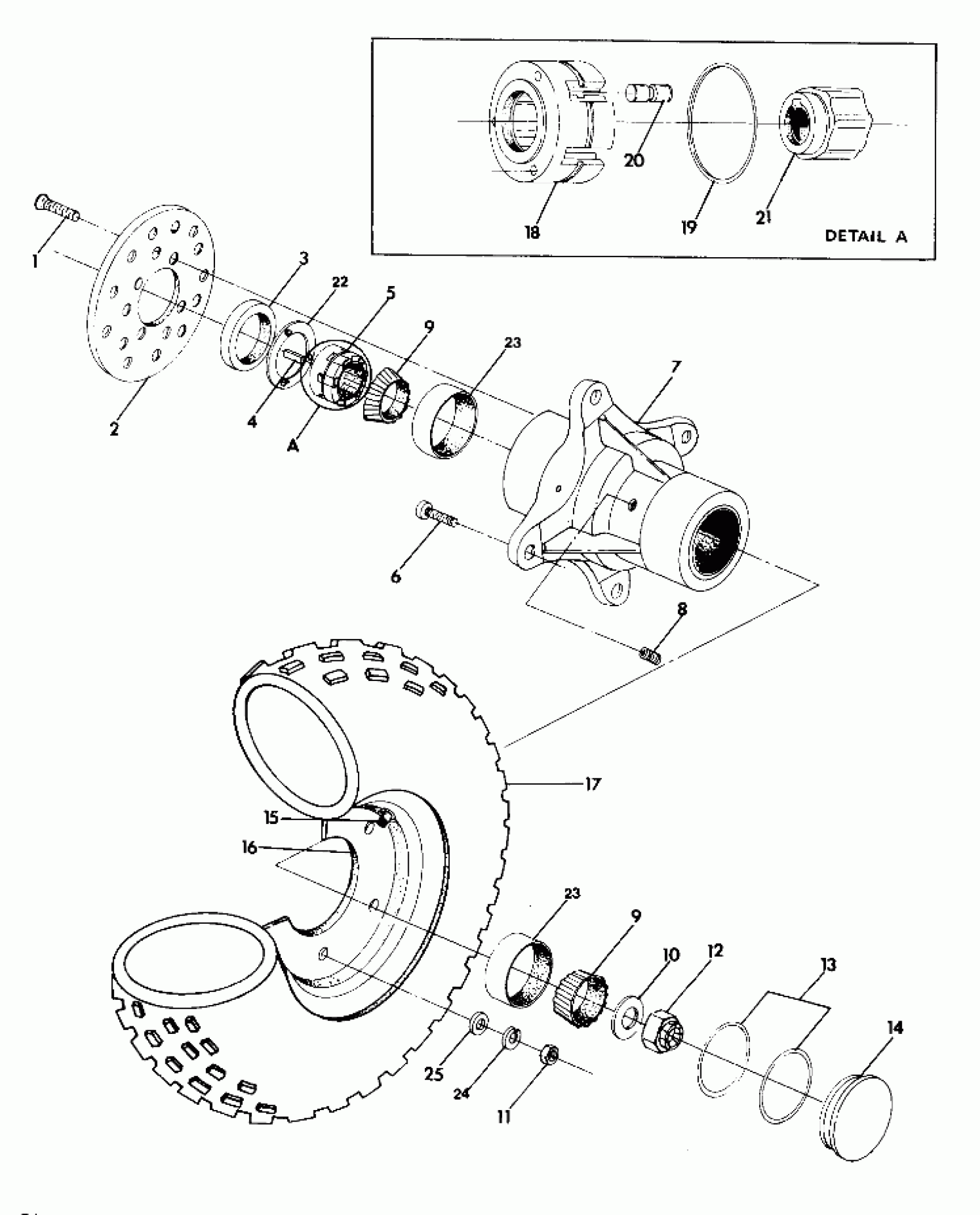

Polaris TRAIL BOSS 350L 4X4 - W918139 FRONT WHEEL ASSEMBLY 350 4X4 - Update (4919831983021A) Diagram

#

Description
Price

1

BOLT(10)

7515321

Unavailable

2

DISC, BRAKE Substituted by 5211326

5211327

$89.03

3

SEAL, FR. HUB

3610019

$36.41

4

KEY

7721205

Unavailable

5

CLUTCH ASM,FR.HUB

1520143

$307.49

6

STUD,WHEEL,5/16-18(10)

7515330

Unavailable

7

HUB, WHEEL Substituted by 1520171

5130820

Unavailable

8

PLUG,PIPE

7052045

$13.75

9

BRG,TAPER.ROLL.CONE

3554506

$31.75

9

BRG,TAPER.ROLL.CONE

3554506

$31.75

10

WASHER(10)

5211101

Unavailable

11

NUT HEX(10)

7542301

$1.59

12

NUT, LOCK Substituted by 7543201

7543202

Unavailable

13

O RING

5410470

$2.41

14

CAP, HUB Substituted by 5431368

5130684

$24.27

15

VALVE-RIM

1525017

$6.46

16

RIM, FR.(SILVER)

1520159-117

Unavailable

17

TIRE,FR(25X8-12)

5410568

$99.74

18

DESC NOT_AVAILABLE

3250025

Unavailable

19

SPRING, GARTER

3250022

Unavailable

20

ROLLS

3250010

$24.74

21

CAM

3250024

$140.09

22

Plate, Armature

5211148

$28.32

23

BRG,TAPER,ROLL CUP

3554507

$31.75

23

BRG,TAPER,ROLL CUP

3554507

$31.75

24

LOCK WASHER(10)

7552901

$1.19

25

WASHER-.344X.688X.063 FL-Y

7558402

$0.99

25

DECAL,RIM(350-4X4) [No Longer Available]

7072902

Unavailable
