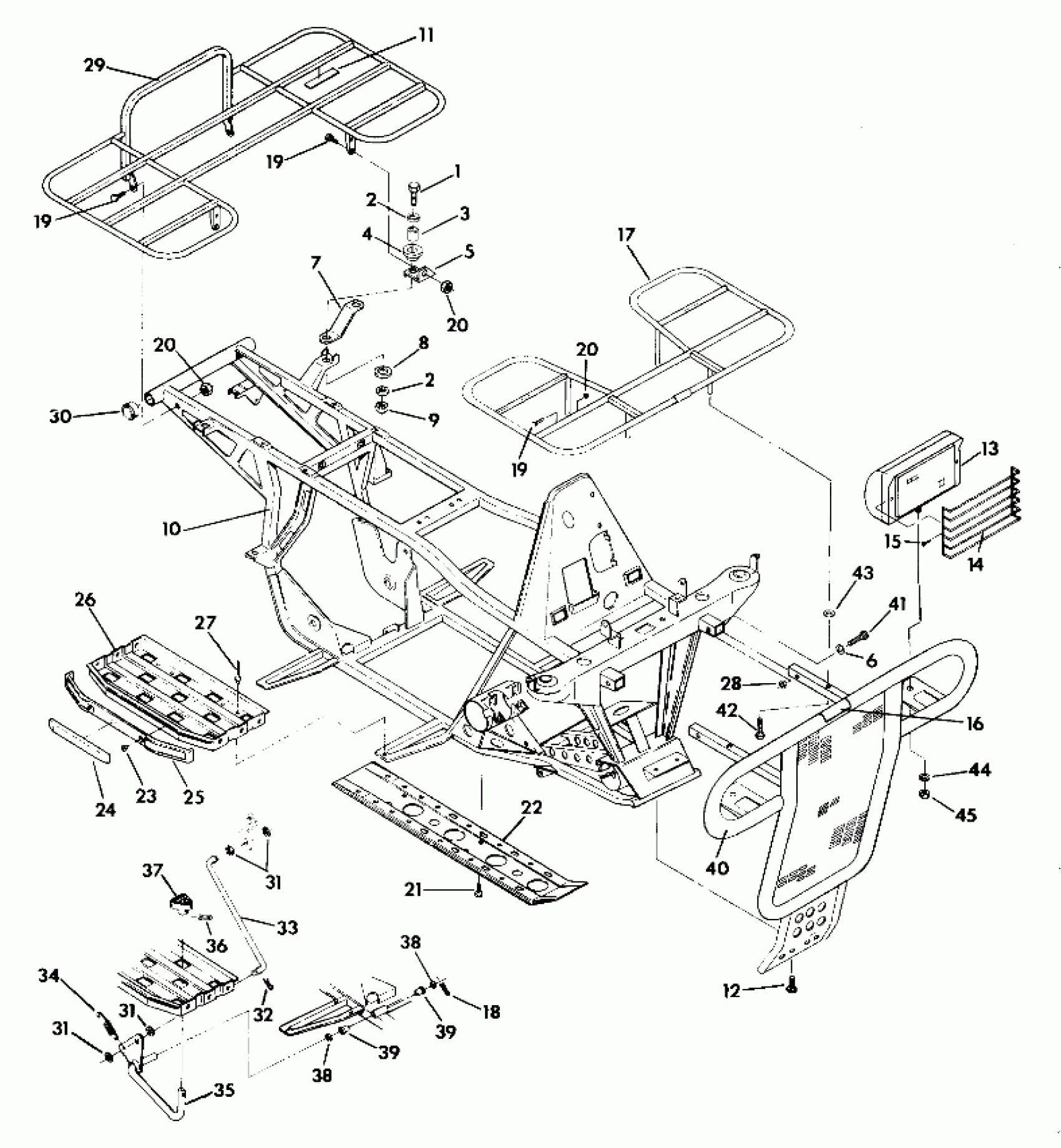

Polaris TRAIL BOSS 350L 4X4 - W918139 FRAME ASM. W/RACKS 350 4X4 - Update (4919831983003A) Diagram

#

Description
Price

1

SCREW-FLANGED(10)

7515304

$5.59

2

WASHER(10)

7555716

$1.59

2

WASHER(10)

7555716

$1.59

3

BUSHING-RES. MT.

5010192

$6.39

4

DAMPENER

5410241

Unavailable

5

BRKT,LH SUPPORT RACK Substituted by 5220899-067

5220899

Unavailable

5

BRKT,RH SUPPORT RACK Substituted by 5220901-067

5220901

Unavailable

6

WASHER-.344X.688X.063 FL-Y

7558402

$1.49

7

SUPPORT,R.FENDER Substituted by 5220902-067

5220902

$48.40

8

WASHER,RUBBER

5410436

$1.59

9

NUT-5/16-18 NYLOK-Y (Nylok)

7542324

$1.49

10

FRAME WELD(350-4X4) Substituted by 1040224-067

1040224

Unavailable

11

PAD,RACK MOUNT

5810455

$3.19

12

SCREW(10)

7512252

Unavailable

13

HEADLIGHT ASM.

4032058

$43.25

13

BULB

4032059

Unavailable

13

HSG.ASM, LENS Substituted by 4032058

4032061

Unavailable

13

HSG, H/L,(RUBBER)

4032060

Unavailable

14

GUARD, HEADLIGHT

4032057

Unavailable

15

BOLT(10)

7512331

$3.99

16

DECAL, FR.SUSP.

7073087

Unavailable

17

RACK,FRT,STL.GREY,350 Substituted by 2670137-067

2670120-132

Unavailable

18

COTTER PIN(10)

7661401

$1.49

19

SCREW(10)

7515355

Unavailable

19

SCREW(10)

7515355

Unavailable

19

SCREW(10)

7515355

Unavailable

20

NUT, NYLOK(10)

7542327

$4.79

20

NUT, NYLOK(10)

7542327

$4.79

20

NUT, NYLOK(10)

7542327

$4.79

21

BOLT(10)

7512232

$1.49

22

GUARD, ROCK Substituted by 5222272-067

5222272

Unavailable

23

RIVET,SEMI-TUBE,(50)

7661812

Unavailable

24

REFLECTOR AMBER

2670071

Unavailable

25

RUBRAIL,(FOOTREST) Substituted by 5431484

5431019

Unavailable

26

PAD, FOOT, LH. Substituted by 1040274-117

1040189

$81.75

26

PAD,FOOT, RH Substituted by 1040275-117

1040220

Unavailable

27

RIVET, (MONOBOLT) Substituted by 7661637

7661620

Unavailable

28

NUT-5/16-18 NYLOK-Y

7542324

$1.49

29

RACK, REAR Substituted by 2670138-067

2670121-132

Unavailable

30

CAP, BUMPER, 4 WHL.(10) Substituted by 5410794

5430823

Unavailable

31

WASHER Substituted by 7555827

BBC0173

Unavailable

31

WASHER Substituted by 7555827

BBC0173

Unavailable

31

WASHER Substituted by 7555827

BBC0173

Unavailable

32

PIN, COTTER(10)

7661103

$4.99

33

ROD,BRAKE LINKAGE

5224437

$9.59

34

SPRING-EXHAUST(10)

7042029

$4.84

35

PEDAL, BRAKE Substituted by 1910054-067

1910054

Unavailable

36

PIN, SPIRAL(10)

7661416

Unavailable

37

PEDAL, FOOT Substituted by 5130715-067

5130715

Unavailable

38

WASHER THRUST(10)

7558702

$1.59

38

WASHER THRUST(10)

7558702

$1.59

39

BUSHING-PEDAL PIVOT

5431107

$8.79

39

BUSHING-PEDAL PIVOT

5431107

$8.79

40

BUMPER,FRT,BLK,(4X4,350) Substituted by 2670148-067

2670119-067

Unavailable

41

BOLT(10)

7512329

$3.99

42

SCREW(10)

7512126

$4.79

43

WASHER(10)

7558301

$1.49

44

LOCK WASHER(10)

7552901

$1.49

45

NUT LOCK(10)

7542302

$3.99
