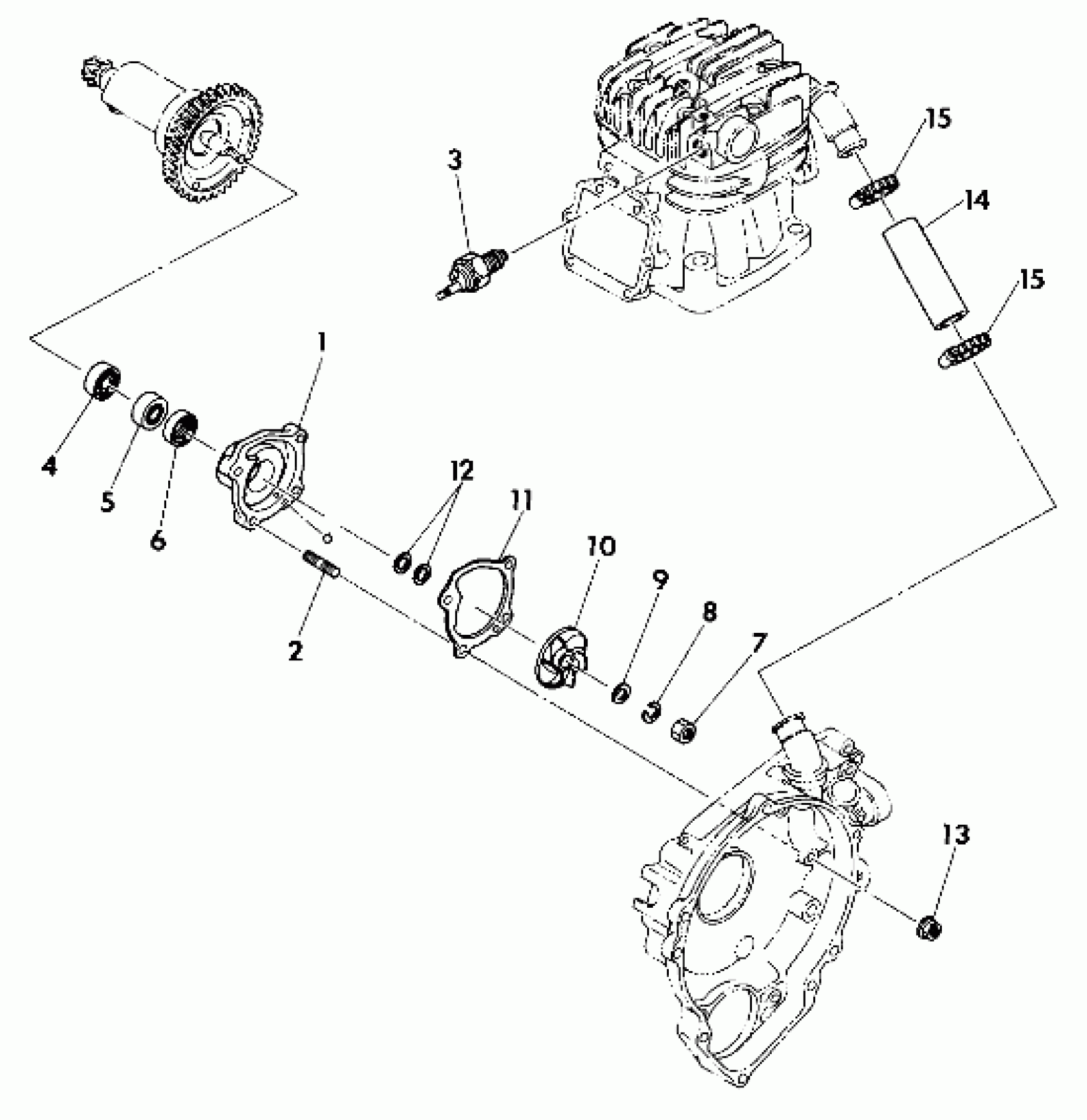

Polaris TRAIL BOSS 350L 4X4 - W908139 Water Pump Assembly (4918541854044A) Diagram

#

Description
Price

1

CASING, WATER PUMP (Incl. 1-3)

3084181

Unavailable

1

CASING, WATER PUMP Substituted by 3084181 (Incl. 1-6)

3084180

Unavailable

2

STUD

3084182

Unavailable

3

SWITCH, THERMO. Substituted by 3084284

3084192

Unavailable

4

Bearing, Ball

3084183

Unavailable

5

Seal, Oil

3084184

Unavailable

6

Seal, Oil

3084185

Unavailable

7

Nut

3083073

$2.39

8

WASHER SPRING(10)

3080077

$2.39

9

Washer

3082206

$1.49

10

Impeller

3084186

Unavailable

11

GASKET (Casing)

3084187

$12.39

12

SPACER #3, (0.1)

3084188

Unavailable

12

SPACER #4, (0.2)

3084189

$8.79

13

NUT, FLANGE(10)

3083856

$2.39

14

HOSE, MAIN Substituted by 3086773

3084190

Unavailable

15

CLAMP, HOSE Substituted by 3086774

3084191

$12.99

15

CLAMP, HOSE Substituted by 3086774

3084191

$12.99
