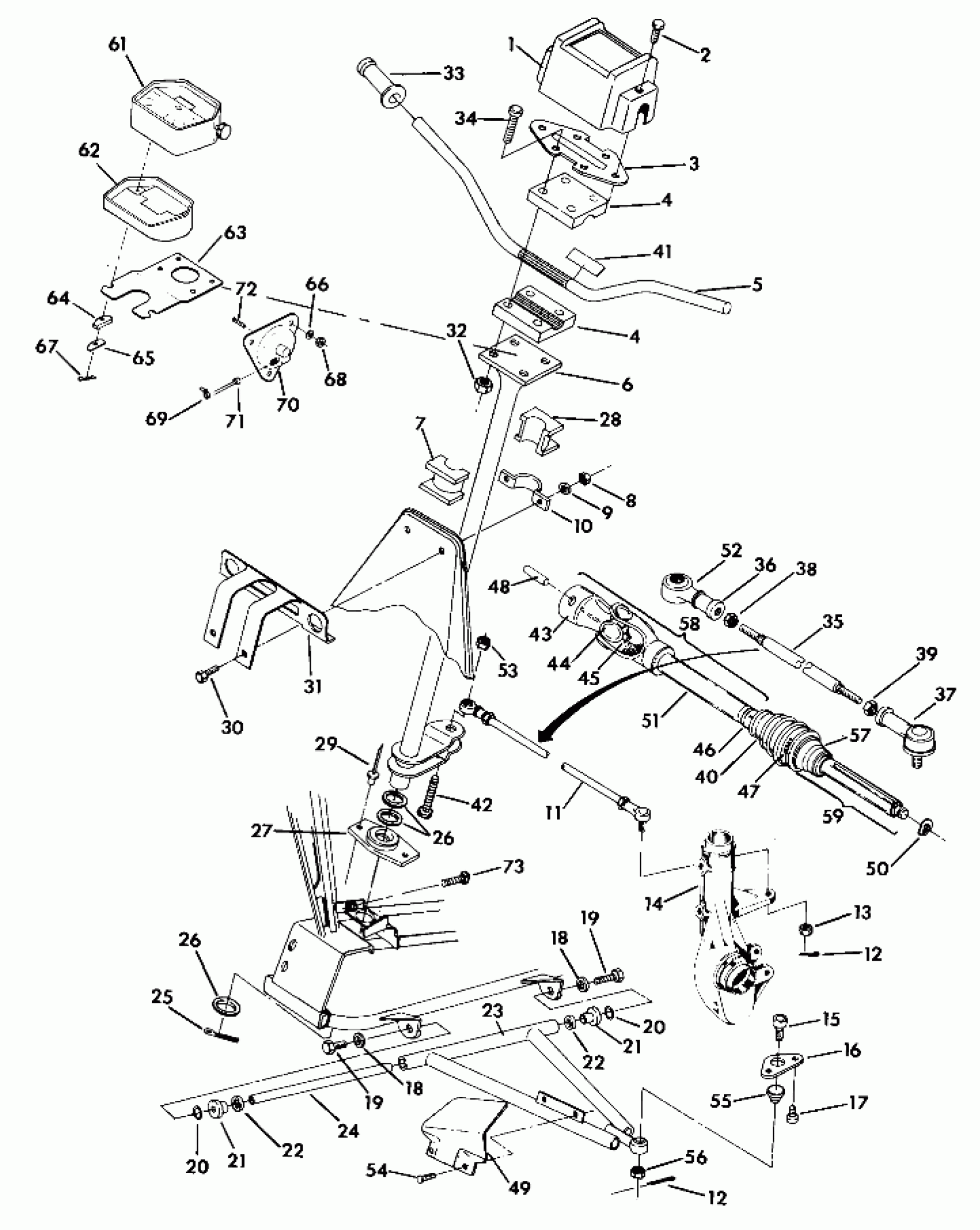

Polaris TRAIL BOSS 350L 4X4 - W908139 Steering Assembly (4918541854015A) Diagram

#

Description
Price

1

PAD, HANDLEBAR

5810379

$40.46

2

BOLT(10) Substituted by 7515197

7512286

Unavailable

3

MOUNT,HDLBR. PAD Substituted by 5245051

5220946

$5.71

4

BLOCK,HANDLEBAR Substituted by 5630187-067

5630187

$3.65

4

BLOCK,HANDLEBAR Substituted by 5630187-067

5630187

$3.65

5

TUBE,HANDLEBAR Substituted by 5224316-067

5224316-132

Unavailable

6

POST, STEERING Substituted by 1843030-067

1843030

Unavailable

7

BUSHING,STRG.,UPPER Substituted by 5431572

5430966

Unavailable

8

NUT-5/16-18 NYLOK-Y

7542324

$1.49

9

WASHER-.344X.688X.063 FL-Y

7558402

$1.49

10

BUSHING,UPPER STRG. Substituted by 5220887-067

5220887

Unavailable

11

TIE ROD ASM. Substituted by 1822310

1822081

Unavailable

12

PIN COTTER(10)

7661203

$1.49

12

PIN COTTER(10)

7661203

$1.49

13

NUT, CASTLE(10)

7546904

$4.79

14

HUB STRUT ASM,LH

1843033

Unavailable

14

HUB STRUT ASM,RH

1843034

Unavailable

15

BALL JOINT Substituted by 7080673

7080364

Unavailable

16

BRACKET-BALL JOINT

5211121

$31.99

17

SCR-1/4-20X5/8 FL HX SOC CP-Y

7512284

$1.49

18

WASHER(10)

7552603

$1.49

18

WASHER(10)

7552603

$1.49

19

BOLT(10) Substituted by 7512492

7515458

Unavailable

19

BOLT(10) Substituted by 7512492

7515458

Unavailable

20

O RING

5410458

Unavailable

20

O RING

5410458

Unavailable

21

BEARING,'A' ARM Substituted by 2200474

3576509

Unavailable

21

BEARING,'A' ARM Substituted by 2200474

3576509

Unavailable

22

WASHER(10)

7555774

Unavailable

22

WASHER(10)

7555774

Unavailable

23

A FRAME, LH Substituted by 1580033-067

1580033

Unavailable

23

A FRAME, RH Substituted by 1580034-067

1580034

$159.75

24

SHAFT,'A-ARM'

5020529

Unavailable

25

PIN, COTTER(10)

7661404

$4.79

26

BUSHING(10)

7555781

Unavailable

26

BUSHING(10)

7555781

Unavailable

27

BUSHING,STRG.,LOWER Substituted by 5431570

5430895

Unavailable

28

BUSHING,UPPER STRG. Substituted by 5431573

5431138

$8.48

29

RIVET, (MONOBOLT) Substituted by 7661637

7661620

Unavailable

30

BOLT(10)

7512315

$4.79

31

BRKT,IGN.PANEL Substituted by 5220965-067

5220965

Unavailable

32

NUT-LOCK(10)

7542122

$1.49

33

GRIP, HANDLEBAR

5431030

$24.27

34

BOLT,(10)

7512265

$3.99

35

TIE ROD

5020528

Unavailable

36

ROD END, RH Substituted by 1822179

7060149

Unavailable

37

ROD END

7060147

$56.65

38

NUT HEX(10)

7542401

$2.39

39

NUT, LH, 10 MM.(10)

7546902

Unavailable

40

BOOT Substituted by 5411106

3260114

Unavailable

41

DECAL,O'RIDE SW.(4X4) Substituted by 7076273

7072827

Unavailable

42

SCREW CAP(10)

7515406

$7.19

43

Yoke

3260101

Unavailable

44

KIT,CROSS&BEARING

3260104

$43.99

45

FITTING,LUBE.W/BALL CK.(10)

7080306

$3.19

46

CLAMP, SMALL Substituted by 7080346

3260105

$7.99

47

CLAMP, LARGE(10)

3260115

$9.99

48

PIN-SPRING,5/16 X 1 5/8-Y

7661913

$3.99

49

SHIELD,RH CV JOINT Substituted by 5431149-070

5431149

$24.27

49

SHIELD,LH CV JOINT Substituted by 5431150-070

5431150

Unavailable

50

WASHER(10)

5211101

Unavailable

51

SHAFT, DRIVE ASM.

1380040

Unavailable

52

BOOT, SEAL, ROD END

5410540

$7.19

53

NUT LOCK(10)

7542403

$3.99

54

SCREW(10)

7512017

$4.79

55

Boot, Rubber

5410548

Unavailable

56

NUT-3/8-24 HX CA GR5-Y

7542438

$1.59

57

Sleeve, Seal

5222299

$32.37

58

CARDAN WELD,(REPLACE.)

1380036

Unavailable

59

JOINT,CV,(REPLACE.) Substituted by 1380042

1380035

Unavailable

61

SPEEDOMETER, ATV Substituted by 3280129

3280107

Unavailable

62

MOUNT, SPEEDOMETER

5410546

Unavailable

63

BRACKET, SPEEDO Substituted by 5222269-067

5222269

Unavailable

64

SPACER,SPEEDO.MTG.

5810442

$10.99

65

PLATE,MTG,(SPEEDO)

5211189

$12.99

66

WASHER(10)

7555725

Unavailable

67

HAIRPIN, COTTER(10)

7660701

$1.99

69

CABLE-TIE,DIA12-50MM,WTHR-RES.

7080138

$2.41

70

ADAPTER,DRIVE Substituted by 3280116

3280095

Unavailable

70

SEAL,ANGLE DRIVE Substituted by 3280131

5810481

Unavailable

71

CABLE,SPEEDOMETER Substituted by 3280130

3280108

Unavailable

72

KEY, SQUARE,SPEEDO. Substituted by 3280165

3280134

$18.10

73

BULB TAILLIGHT(10)

4030015

Unavailable

73

SCREW, SET(10)

7515508

Unavailable
